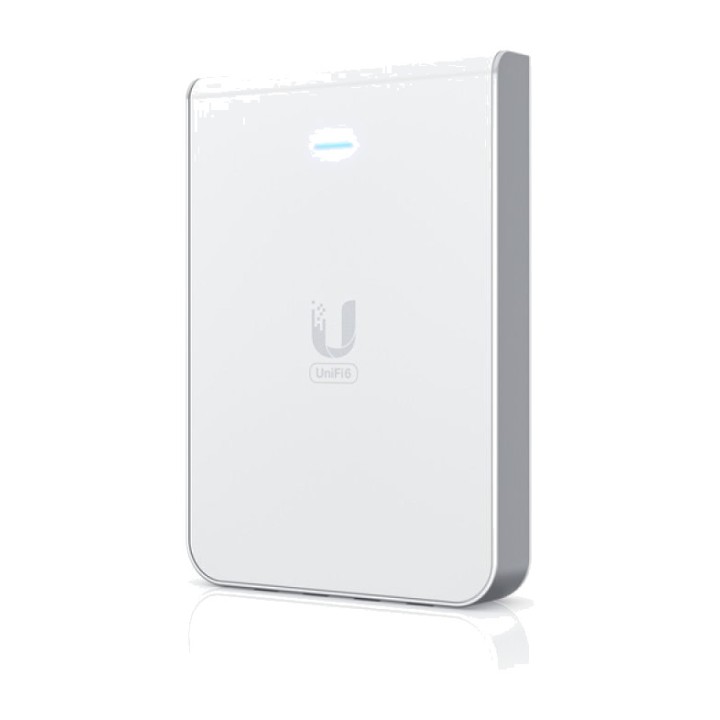

UBIQUITI In-wall WiFi 6 access point UNIFI U6-IW MGS0000014858

Adopt the U6-IW in minutes with your UniFi network app and:

Centrally manage multiple networks from an intuitive interface
Enjoy real-time device insights and in-depth configuration options
Update the device firmware remotely
Easily manage network users and guests
Customize the design, architecture, and privacy of guest access points
Quickly configure devices and manage them on the go with a powerful mobile app

Characteristic

WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput

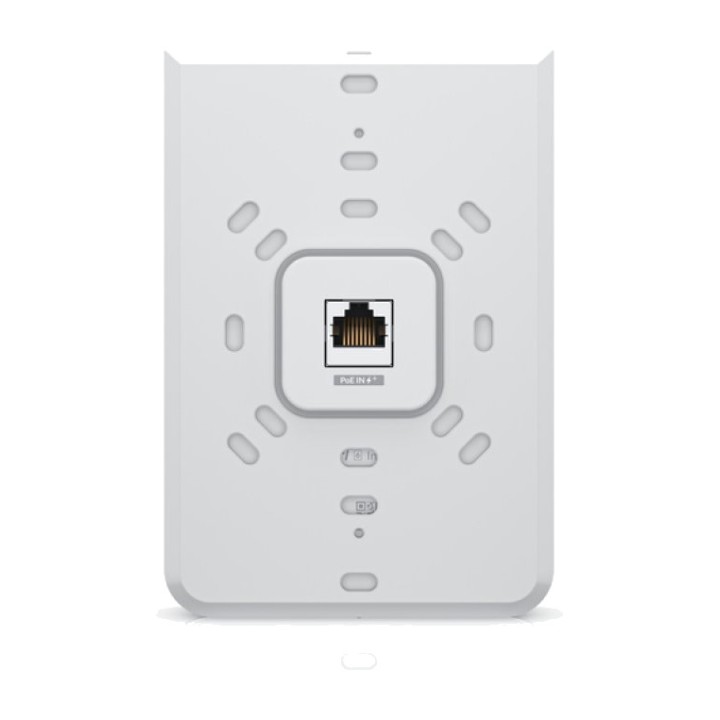

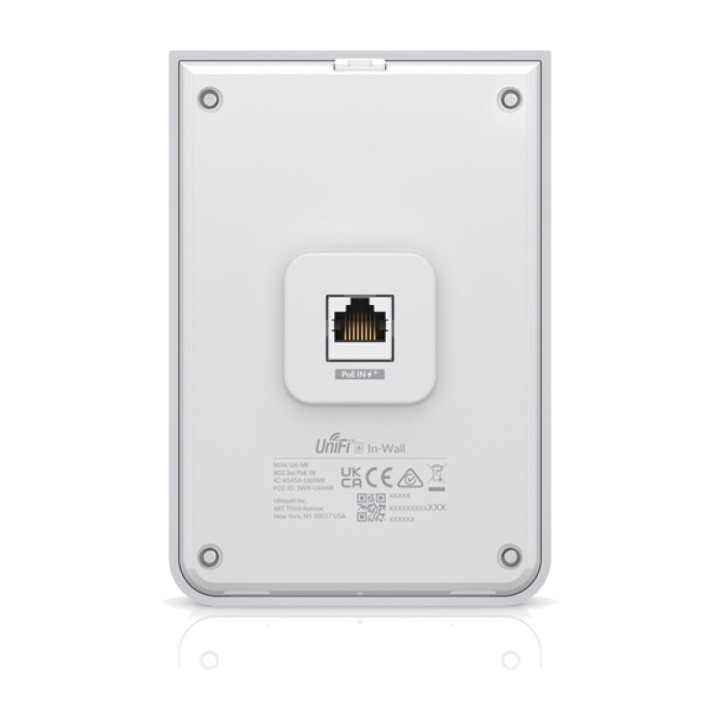

(1) GbE RJ45 port (PoE input)

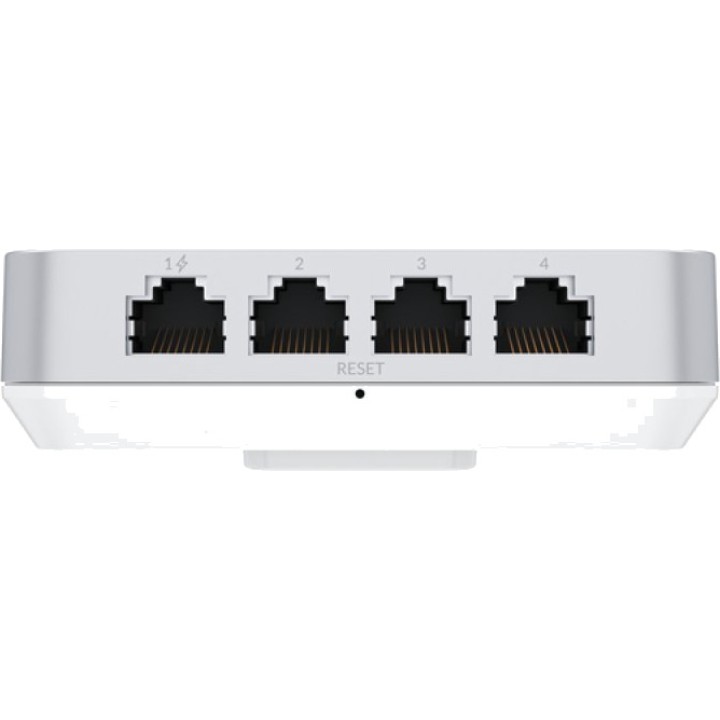

(4) GbE RJ45 ports, including one with PoE output support *PoE+ input required

Ubiquiti U6 In-Wall specifications

Characteristic
2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate: 573.5 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 4.8 Mbit/s
Data transmission rate: 573.5 Mbit/s
Bluetooth: Yes
MIMO: Yes
MIMO type: Multi User MIMO
VLAN support: Yes
Dynamic Frequency Selection (DFS): Yes
Quality of Service (QoS) support: Yes

SECURITY
Supported security algorithms: WPA, WPA-Enterprise , WPA-PSK, WPA2, WPA3

Protocols
Supported network protocols: 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11a x, 802.1Q

Ports and Interfaces
Ethernet LAN (RJ-45) port quantity : 5
Number of internal RJ-45 ports : 1
WAN connection: Wi-Fi

Power control
Power over Ethernet (PoE): Yes
Input voltage AC: 44 - 57 V
Power consumption (max x.): 13,5 W

Design
Location: Wall
Product colour: White
Housing material: Aluminum, Plastic
Reset button: Yes
LED indicators: Yes
Certification: CE, FCC, IC

Antenna
Antenna type: Internal
Antenna gain (max.): 5.9 dBi

WEIGHT AND DIMENSIONS
Width: 96 mm
Depth: 31.2 mm
Height: 139.7 mm
Weight: 460g

Package contents
Number of products included: 1 piece(s)
Mounting kit: Yes

Environmental conditions
Relative humidity range for operation : 5 - 95%
Operating temperature range : -30 - 60 C
Volume (m ³): 0.0020
