UBIQUITI Compact managed switch with Power over Ethernet UNIFI USW-LITE-16-POE DSP0000033837

Lite 16 PoE switch features
The Lite 16 PoE is a high-performance managed switch designed for professional networks that require a compact, efficient infrastructure with PoE+ power delivery. With a total of 16 Gigabit Ethernet ports, 8 of which support PoE+, this device is ideal for powering IP cameras, access points or VoIP phones without the need for additional power supplies. All this is managed through the UniFi Network application.
Compact design with high switching capacity
Despite its minimalist design, this switch offers a powerful network architecture, ideal for offices, small businesses or professional environments looking for a reliable and scalable device.

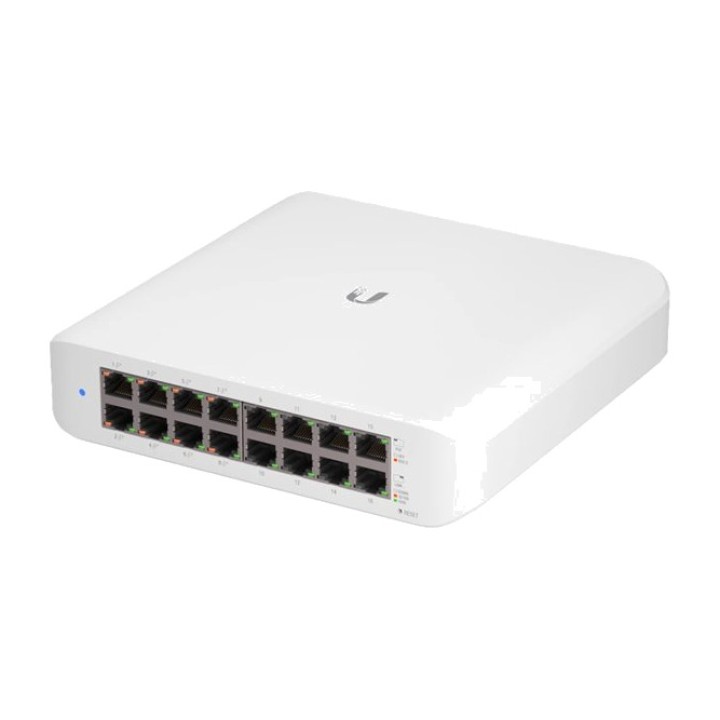

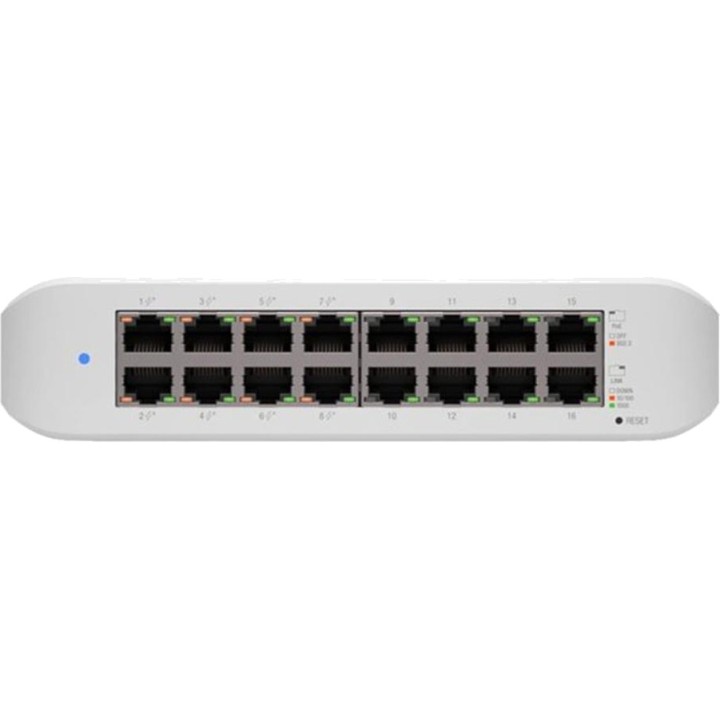

16 Gigabit Ethernet RJ45 ports, 8 with PoE+
Switching capacity: 32 Gbps, non-blocking throughput of 16 Gbps

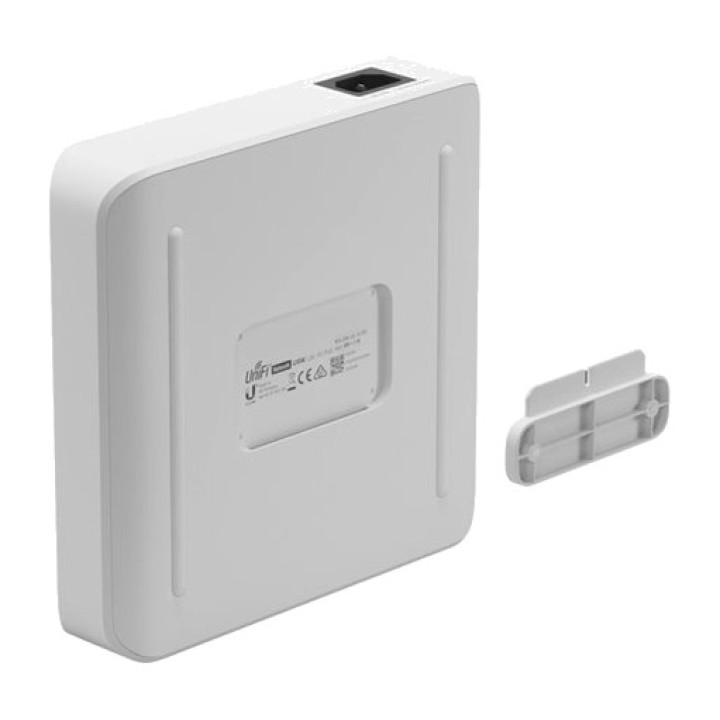

Compact form factor for desktop or wall mounting

Smart and safe PoE+ power supply
The Lite 16 PoE provides a total PoE power budget of up to 45W, allowing you to connect multiple devices without the need for injectors or external power supplies. Each PoE+ port can supply up to 32W, ideal for demanding devices.

Up to 32W per port (PoE+)
Total PoE output availability: 45W
Internal AC/DC power supply of 60W

Advanced networking features for demanding environments
This model is designed for high-control and security scenarios, thanks to its compatibility with VLANs, IGMP Snooping, STP/RSTP, access control lists (ACLs), port isolation, and much more. It offers a stable, configurable network experience to suit different needs.

Supports 1,000 VLANs
8,000 MAC entries and 0.5 MB packet buffer
Security features: DHCP Snooping, MAC blocking, control 802.1X

Centralized management with UniFi Network
The switch can be managed through the UniFi Network system, allowing remote configuration, performance monitoring, and firmware updates in just a few steps. It is compatible with software version 7.2.94 or later.

Management via Ethernet through UniFi Network
Compatible with advanced features such as IGMP, LLDP-MED, and voice VLAN
Requires UniFi Network 7.2.94 or later

Robust and efficient design
Made of durable polycarbonate, this switch is designed for continuous use, with an operating temperature range of up to 40°C and optimized heat dissipation. It complies with standards such as CE, FCC, and IC.

Dimensions: 192 x 185 x 44 mm
Weight: 1.2kg
Heat dissipation: 51.2 BTU/h (without PoE)

Other specifications

Forwarding rate: 24 Mpps
Jumbo frames and port mirroring
Maximum power consumption: 15W (without PoE) / 60W (with PoE)

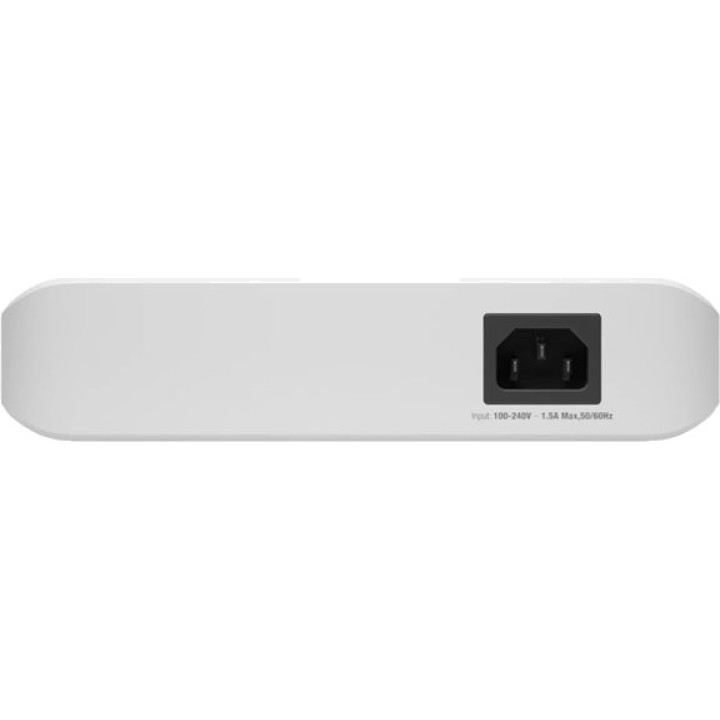

Power input: 100–240V AC, 50/60 Hz
Rack depth support: 400–1200 mm
Operating humidity: 10% to 90% non-condensing
Certifications: CE, FCC, IC, Anatel
Complies with the NDAA
Volume (m ³): 0.0068
