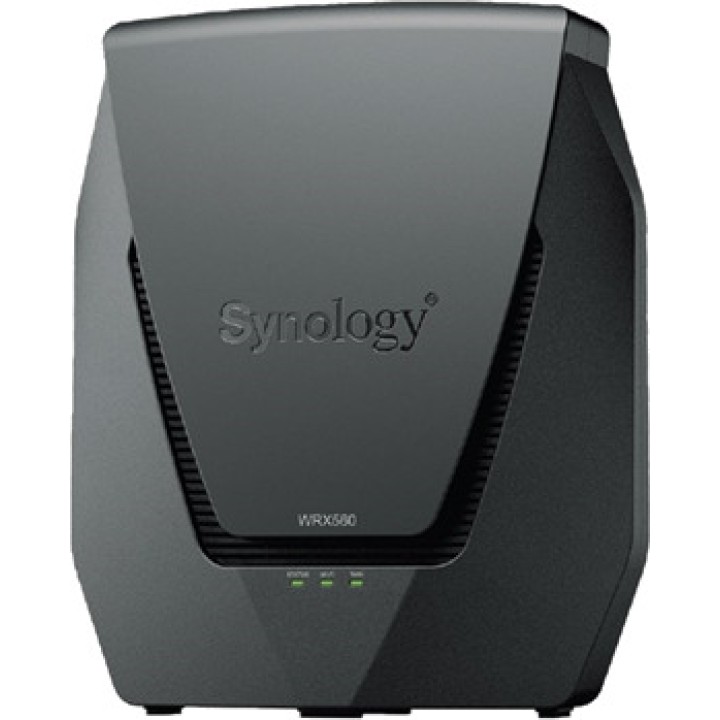

SYNOLOGY Dual-band WiFi 6 router with 2.5GbE port WRX560 AX3000 DSP0000011658

- CPU: Quad-core 1.4 GHz
- L7 engine with hardware: Yes
- MEMORY : DDR3 512 MB
- Antenna type: 2T2R + 4T4R high-gain omnidirectional dipole (2,4
GHz/5 GHz)
- PORTS RJ-45
1 Gigabit WAN
1 configurable 2.5GbE WAN/LAN
3 Gigabit LAN
- External ports: 1 USB 3.2 Gen 1 (Type A)
- Size (H x W x D): 233 mm x 194 mm x 66 mm
- AC adapter input voltage: from 100 to 240 V CA
- Power frequency: 50 to 60 Hz, single-phase
- Operating environment
From 5 C to 40 C (from 40 F to 104 F)
From 8% to 80% RH
- Storage environment
From -20 C to 60 C (from -5 F to 140 F)
From 5% to 95% RH
- Maximum operating altitude: 5000 m (16 400 ft)
Wireless - Wireless standards
Simultaneous dual-band IEEE 802.11 a/n/ac/ax
802.11k/v/r roaming support
- Maximum data rate
2.4 GHz: Up to 600 Mbps
5 GHz: Up to 2400 Mbps
- Wireless security
WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal , WPA3-
Personal/Enterprise, Wi-Fi Enhanced Open (OWE),
Wi-Fi Protected Setup (WPS) 2.0
- Other wireless features: Smart Connect for automatic band management
of band, independent Wi-Fi scheduling enable/disable,
Guest network
Add-on packages
- VPN Plus Server: Turn your Synology Router into a powerful server
VPN. VPN Plus Server enables secure VPN access through
clients and web browsers,
and supports several VPN services: WebVPN, Synology SSL VPN,
SSTP, RDP, OpenVPN, L2TP over IPSec and PPTP.
Network administrators have several management tools available
to regulate and monitor VPN traffic
- Threat Prevention: Greatly improve your router's security
thanks to IDS and IPS systems, designed to protect your network from
Internet threats
- Cloud Station Server: Synchronize data from multiple platforms,
centralizing them in the router while easily storing versions
of important historical files
- RADIUS Server: Provides centralized authentication, authorization and account management
for wireless network access
- DNS Server: An address server for the local network
- Download Station
Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum number of simultaneous download tasks: 50
- Media server Stream media content directly
from the router
Software - Operating modes
Wireless router
Wireless AP
- DHCP: Server/client mode, client list, MAC address list
reserved
- Port forwarding: DMZ, UPnP, VPN pass-through (PPTP, IPSec , L2TP, SIP)
- Parental controls: Configurable Internet schedule per device,
allow/block list, DNS-based web filter with integrated database
integrated,
integration of YouTube, Google and Bing searches, compatible with
Google Safe Browsing
- Traffic control
Custom speed per device, traffic monitoring, limits
per application and advanced usage reports
Application-layer monitoring and management (Layer 7)
- Network tools: Ping, Traceroute, WoL through integration with
Synology QuickConnect
- SECURITY
Denial-of-service (DoS) protection and automatic IP blocking mechanism
automatic IP blocking
SSL certificates with Lets Encrypt integration
Synology Security Advisor
Two-factor authentication
- Network separation: Maximum number of VLAN: 5
- VPN clients: PPTP, OpenVPN, L2TP over IPSec
- IPv6 support: DHCP IPv6 server/client, DS-Lite, 6in4, 6to4, 6rd,
dual stack, DHCPv6-PD, IPv6 relay, FLETs IPv6
- Backup solutions: Backup and restore of
SRM configuration, Time Machine support (with device
of connected USB storage)
- Notifications: Email, SMS, Push service (via DS
router)
- File services: SMB, AFP, FTP/FTPS, WebDAV
- FTP Server: Bandwidth control for TCP connections, range of
custom passive FTP ports, FTP, FTP SSL/TLS and SFTP protocols
anonymous, transfer logs
- iOS/Android applications: DS router, VPN Plus, DS cloud, DS file, DS
get (Android)
- Access from anywhere: Synology QuickConnect, Dynamic DNS
(DDNS)
- Printer support
Maximum number of printers : 1
Print protocols: LPR, CIFS, IPP
- Advanced features: Smart WAN - load balancing and dual-WAN failover,
error, policy routing, static routing, network address translation
(NAT),
SNMP, SSH, LAN/WLAN IGMP snooping, PPPoE passthrough
- Compatible browsers: Google Chrome, Firefox, Microsoft Edge,
Safari 13 and later and Safari (iOS 13.0 and later) on iPad, Chrome
(Android 11.0 and later) on tablets
Other features - Certification: Wi-Fi certification, CE, UKCA,
TELEC, VCCI, IDA, BSMI, JATE, FCC, NCC, RCM
- Environmental safety: Complies with RoHS regulations
CONTENT
- Main unit WRX560
- 1 AC power adapter
- 1 cable LAN RJ-45
- Quick installation guide
Volume (m ³): 0.0073
