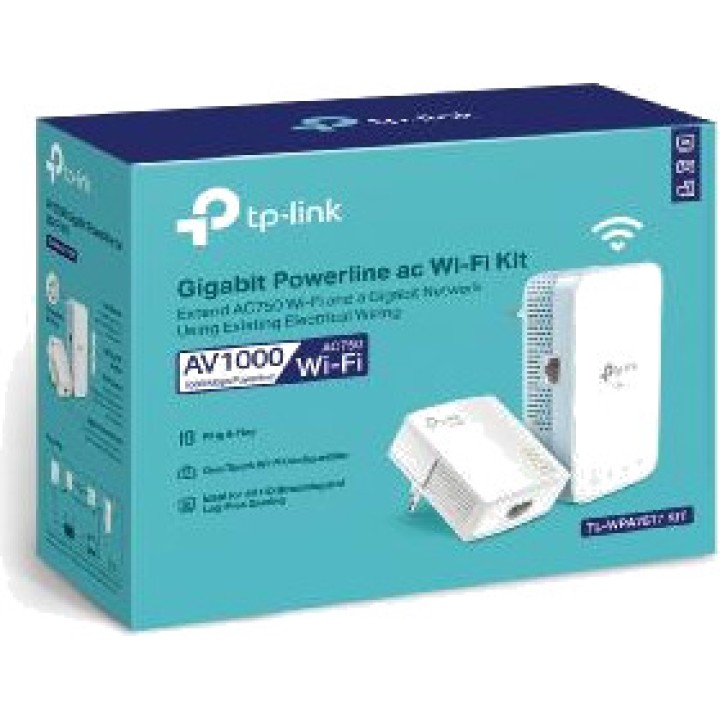

TP-LINK Kit of 2 Gigabit PLC adapters with dual-band WiFi 5 AV1000 AC750 TLWPA7517KIT

Complies with the Homeplug AV2 standard: provides users with data rates of
stable, high-speed data transfer of up to 1000 Mbps over a
line length of up to 300 metres
Dual-band Wi-Fi 802.11ac: AC750 dual-band Wi-Fi (433 Mbps at 5
GHz and 300 Mbps at 2.4 GHz) enables streaming, gaming, emailing,
browsing and posting on your wireless devices
throughout your home
Automatic Wi-Fi synchronization: simply copy your router's Wi-Fi settings
and apply the changes to the secure powerline network with Wi-Fi
Clone and Wi-Fi Move
Gigabit Ethernet port: provides reliable high-speed wired connections
speed for game consoles, smart TVs and NAS
Plug, Pair and Play: quickly configure a secure Powerline network
TL-WPA7517 KIT transforms your home's existing electrical circuit into a
Gigabit network and brings wired and wireless networking anywhere there is a
power outlet.

>, No drilling or cable installation required
>, The network passes through walls and floors
>, Extend coverage by adding more extenders
>, Powerline adapters must be deployed in sets of two or more
and connected to the same electrical circuit
Hardware Features
EU Plug Type
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,
IEEE 802.3u,
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
TL-WPA7517 interface: 1 Ethernet port
TL-PA7017: 1 Ethernet port
Buttons Pair, Reset, Wi-Fi Clone, LED On/Off
Power consumption TL-WPA7517: Maximum: 11 W, typical : 6,5 W
TL-PA7017: Maximum: 2.9 W, typical : 2,6 W
LED indicators: Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
TL-WPA7517 dimensions: 2.7 1.4 4.9 in. (69.5 35 124.1 mm)
TL-PA7017: 2.0 1.1 2.6 in. (52 28.5 65 mm)
Range Up to 300 meters / 1000 feet over existing electrical wiring
Compatibility Compatible with all standard powerline adapters
HomePlug AV and AV2
Transmission Speeds Powerline: up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
WIRELESS FEATURES
Wireless Security Encryption WPA-PSK / WPA2-PSK, WEP
SOFTWARE FEATURES
Management tpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs:
OFDM modulation technology (PLC)
Powerline Encryption: 128-bit AES encryption
Wireless: WPA-PSK / WPA2-PSK, WEP encryption
Others
CE, ROHS certifications

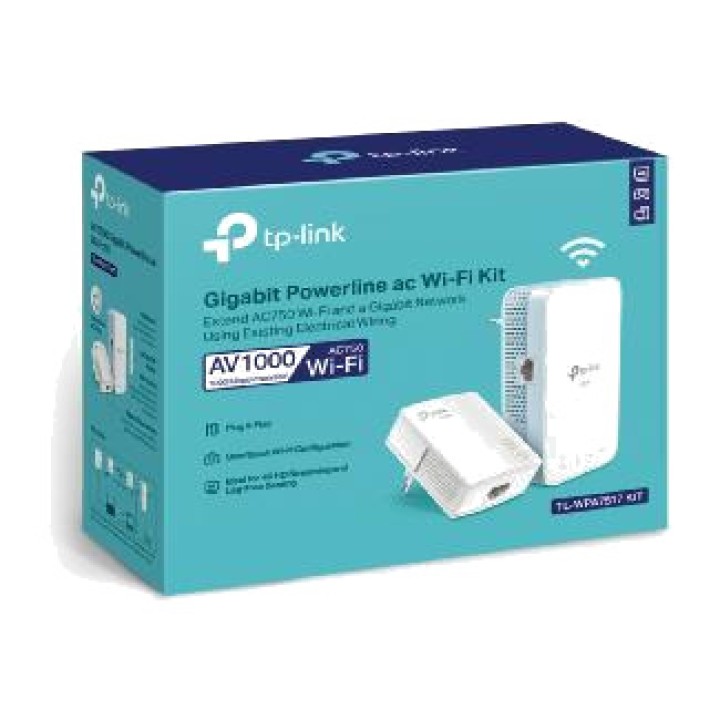

Package Contents AV1000 Powerline Wi-Fi Kit: TL-WPA7517 and TL-PA7017
Ethernet Cable 2
Quick installation guide
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environmental Factors Operating Temperature : 0 C ~ 40 C (32 F
~ 104 F)
Operating Humidity: 10% ~ 90% without condensation
For more information about your hardware version, please go to the page
of support, and consult the datasheet for your version.

* 1. Compatible with all standard HomePlug AV and Powerline adapters
AV2. This product may not be compatible with routers or gateways
with firmware that has been modified, is based on open-source software, or is non-standard or outdated.
open-source software, or is non-standard or outdated.

* 2. Maximum wireless signal rates are the physical rates
derived from the specifications of the IEEE 802.11 standard. Actual performance of
and wireless coverage are not guaranteed and will vary
as a result of 1) environmental factors, including building materials,
physical objects and obstacles, 2) network conditions, including interference
local, traffic volume and density, product location, network complexity and
network overhead, and 3) client limitations, including rated performance
rating, location, connection, quality and condition of the client.

* 3. Maximum Powerline signal rates are the physical rates
derived from the HomeplugAV / AV2 specifications. Actual performance of
Powerline data and Powerline range are not guaranteed and will vary as a
result of network conditions and environmental factors, including
electrical interference, traffic volume and network overhead, the
AFCI circuit breaker and Powerline being located on a separate circuit.
Volume (m ³): 0.0044
