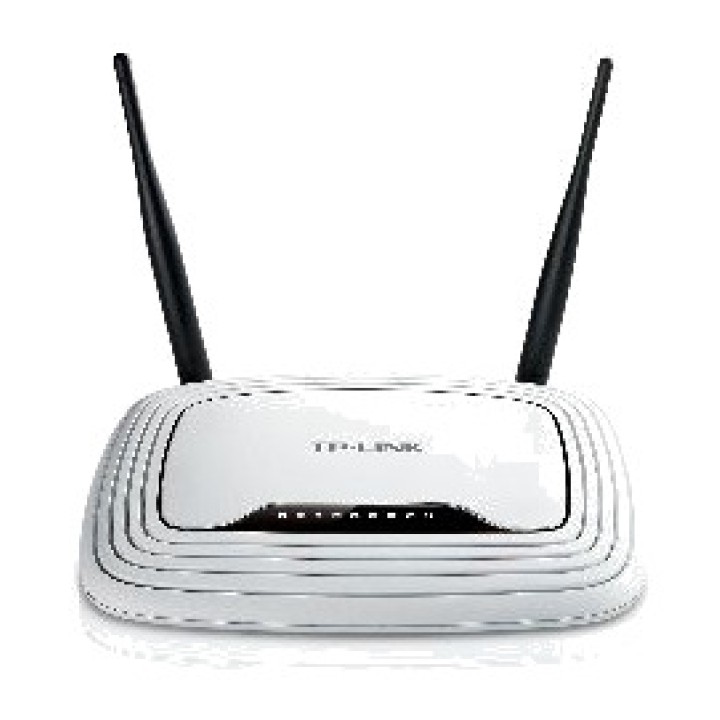

TP-LINK N WiFi router with 4-port switch and fixed antennas 300MBPS 10/100 TL-WR841N

Its wireless speed of up to 300 Mbps makes it the device
ideal for supporting high bandwidth usage or
applications requiring low latency, such as streaming video playback,
streaming video, online gaming and VoIP calls.
2T2R MIMO technology provides greater
transfer capacity compared with conventional 1T1R devices
Set up a secure connection with WPA encryption by simply pressing
the QSS button
WDS wireless bridge mode easily extends network coverage
Wireless
The QoS function for quality of service management ensures the quality
of VoIP calls and multimedia content streaming
The access control function allows parents and network administrators to
set Internet access restrictions for children or company
company personnel
Supports virtual server, special applications and DMZ functions, allowing you to
host a web server on your own local network
Includes automatic log file delivery via
email to help you manage the router
Compatible with 802.11b/g/n devices
The Easy Setup Assistant utility enables quick and easy installation
problems
Its fixed external antennas can be adjusted to optimize signal reception
and can be replaced with higher-performance antennas
High-performance design and the option to mount it on a wall or place it
horizontally on a table or desk
Interface 4 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button Quick Setup Security button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna 2 fixed omnidirectional 5dBi antennas
Dimensions ( W x D x H ) 7.6 x 5.1 x 1.3 inches (192 x 130 x 33 mm)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal rate 11n: up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
EIRP <,20dBm(EIRP)
Reception Sensitivity 270M: -68dBm @10% PER
130M: -68dBm @10% PER
108M: -68dBm @10% PER
54M: -68dBm @10% PER
11M: -85dBm @8% PER
6M: -88dBm @10% PER
1M: -90dBm @8% PER
Wireless Functions Wireless signal on/off, WDS bridge,
WMM, wireless connection statistics
Wireless 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type Dynamic IP / Static IP / PPPoE /
PPTP/L2TP/BigPond
DHCP Server, client, DHCP client list,
Address reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding virtual server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental control, local management control, host list,
access scheduling, rule management
Firewall Security DoS, SPI Firewall
IP Address Filter / MAC Address Filter / Domain Filter
IP and MAC address binding
Management Access Control
Local Management
Remote Management
Others
Certification CE, FCC, RoHS
Package Contents Wireless router N TL-WR841N
Power supply
Utility CD
Quick installation guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP,
Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating temperature : 0? ~ 40? (32? ~ 104?)
Storage temperature : -40? ~ 70? (-40? ~ 158?)
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0052
