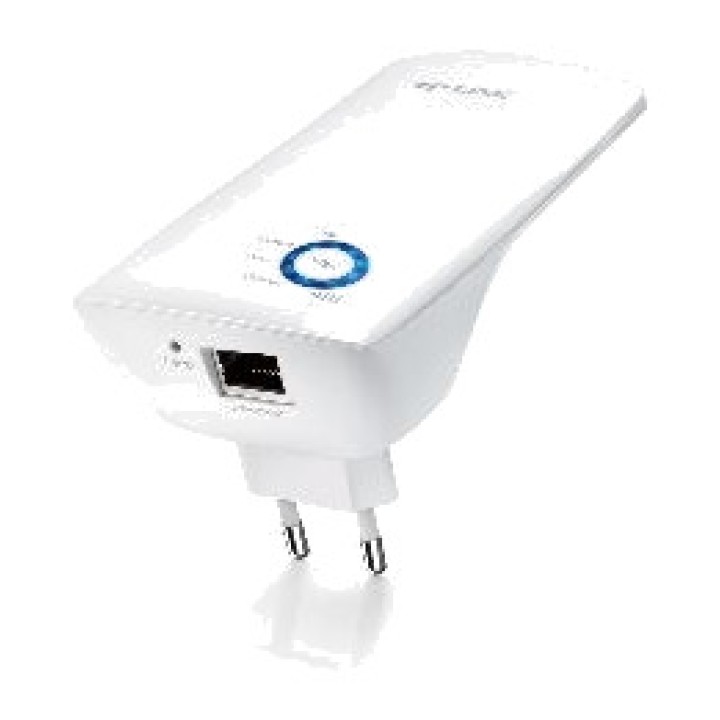

TP-LINK Compact WiFi 4 repeater with Ethernet port N300 300MBPS TL-WA850RE

Range Extender mode boosts the wireless signal to areas
that were previously out of reach or are difficult to wire
The device's miniature wall-mount design
makes installation easy and allows flexible relocation.
Easily extend wireless coverage at the touch of a button
Range Extender
Its Smart Signal Indicator helps you find the ideal location
for placing the range extender
The Ethernet port allows the Extender to function as an adapter
wireless to connect wired devices
Wireless transfer rates of up to 300Mbps are ideal for
video streaming, online gaming and Internet calls
Supports domain name-based login (
for advanced management
Compatible with other 802.11n/g/b wireless devices
Advanced 64/128/152-bit WEP encryption , WPA-PSK / WPA2-PSK
protect your network against security threats
Hardware Features
Interface 1 Ethernet port 10/100M (RJ45)
EU Plug Type
Buttons RE (Range Extender) button, Reset button
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antennas 2 * internal
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Power Consumption About 3W
WIRELESS FEATURES
Frequency 2.4~2.4835GHz
Transfer rates 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
EIRP <, 20 dBm (EIRP)
270M Reception Sensitivity: -68dBm @10% PER
130M: -68dBm @10% PER
108M: -68dBm @10% PER
54M: -68dBm @10% PER
11M: -85dBm @8% PER
6M: -88dBm @10% PER
1M: -90dBm @8% PER
Wireless Modes Range Extender
Wireless Features WMM (Wi-Fi Multimedia)
Wireless MAC address filtering
Wireless Statistics
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Others
CE, ROHS certifications
Package Contents N 300Mbps Universal Wireless Range Extender
300Mbps TL-WA850RE
Ethernet cable RJ-45
Utility CD
Quick installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista
or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0C~40C
(32F~104F)
Storage temperature : -40C~70C (-40F~158F)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0014
