TP-LINK Indoor WiFi 4 access point N300 300MBPS TL-WA801N

300 Mbps Wireless N Access Point TL-WA801N

300 Mbps wireless transmission speed provides a
seamless Wireless N experience
Supports multiple operating modes: Access Point,
Client, Universal / WDS Repeater, Wireless Bridge
Easy setup of a secure WPA-encrypted connection by pressing the
QSS button
Flexible installation: up to 30 meters (100 feet) away using the supplied
Power over Ethernet injector

What is this product used for?

The TP-LINK TL-WA801ND N wireless access point is designed
to establish or extend a scalable high-speed N wireless network
or to connect several Ethernet devices such as gaming consoles,
media players, printers or network storage devices to a wireless network. It supports a wide range of
functions and settings: greater flexibility for your network. You can now enjoy
a better Internet experience when downloading content,
gaming, streaming video or using any other feature.
N wireless technology: speed and coverage
The device uses advanced MIMO (Multi Input Multi Output) technology

compatible with the IEEE 802.11n standard. To do this, it uses two antennas simultaneously
for both data transmission and reception. This
avoids interference and signal degradation when it
mode, interference and signal degradation are avoided when it
transmits over long distances or through physical barriers within, for
example, an office or apartment. As a result, you get a
significant improvement in wireless performance, even in buildings
built with steel and concrete. As a result, it is able to
easily pick up a wireless signal transmitted over a long distance, unlike
when using an 11g device from the previous generation.
Multiple operating modes:
easy-to-deploy wireless networks

Works as an access point client, bridge, repeater and access point.
This allows you to adapt it dynamically to your wireless access needs
depending on the situation. The different operating modes
also allow you to deploy a wireless network in
locations where cabling is difficult or eliminate wireless dead zones.
Installation flexibility thanks to
passive PoE power mode

The TL-WR801ND can be powered via an Ethernet cable to
transmit data and supply power simultaneously to the
access point location up to a distance of about 30 meters. This
feature enables various installation options. This way,
you can place the access point in the most convenient location, such as
the wall or ceiling of your office, to obtain the best possible
signal.

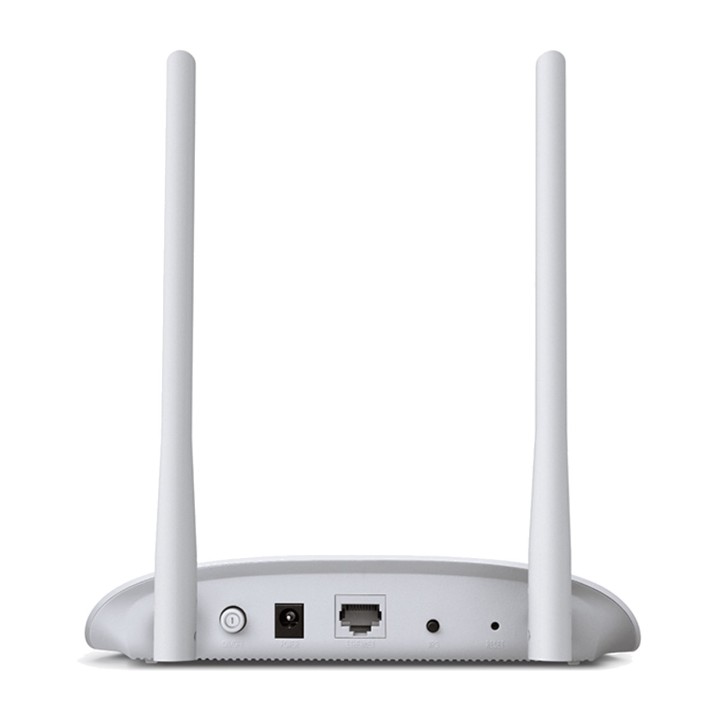

Hardware Features
Interface: One 10/100 Mbps Ethernet port (RJ45)
Passive PoE support
Buttons: On/Off button
WPS button
Reset button
External power supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions: 7.1 4.9 1.4 in. (181 125 36mm)
Antenna Type: 2 * 5dBi Omnidirectional Antennas (RP-SMA)
WIRELESS FEATURES
Frequency 2.4–2.4835 GHz
Signal Rate 11n: Up to 300 Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
270M Reception Sensitivity: -68dBm @10% PER
130M: -68dBm @10% PER
108M: -68dBm @10% PER
54M: -68dBm @10% PER
11M: -85dBm @8% PER
6M: -88dBm @10% PER
1M: -90dBm @8% PER
Transmission Power <,20dBm(EIRP)
Wireless Modes Access Point
Multiple SSIDs
Client Mode
Repeater Mode
Bridge with AP Mode
Wireless Functions Enable/Disable Wireless Radio
MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK /
WPA2-PSK
WMM Quality of Service
SNMP Management
Advanced Features PoE support up to 30 meters
Others
CE, FCC, RoHS certifications
Package Contents Wireless access point TL-WA801ND
2 Omnidirectional antennas
Power supply
PoE power injector
Resource CD
Quick installation guide
Ethernet cable RJ45
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista
or Windows 7, 10,
MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature : 0 ~ 40
(32 ~ 104)
Storage temperature : -40 ~ 70 (-40 ~ 158)
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0048
