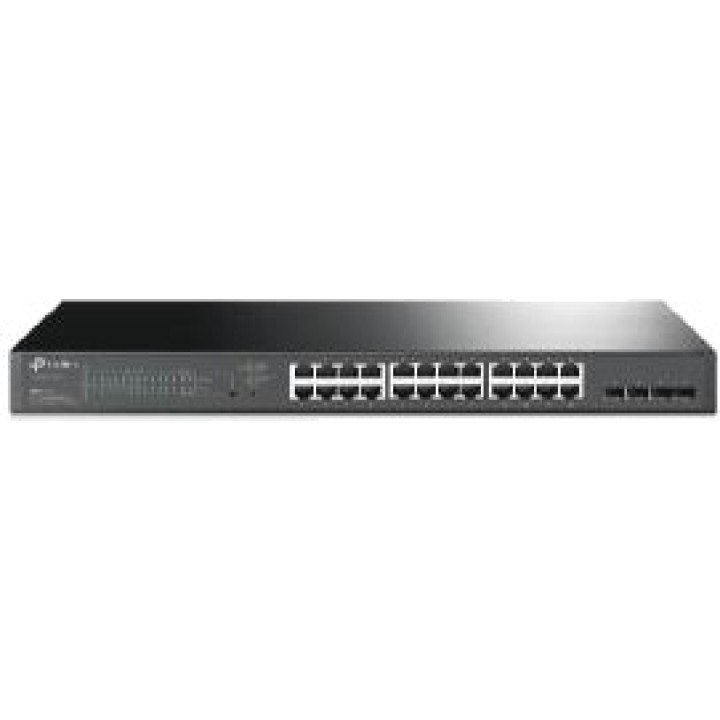

TP-LINK 24-port Gigabit managed PoE+ rack switch OMADA L2+ 4X-SFP 250W TL-SG2428P

PoE+ performance up to 250W: PoE+ ports compatible with 24
802.3at / af with a total power supply of 250 W *.
Full Gigabit ports: the 24 Gigabit PoE+ ports and the slots
4 Gigabit SFP provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) **,
Centralized cloud management and intelligent monitoring.
Centralized management: cloud access and Omada app for
easy convenience and management.
Static routing: helps route internal traffic for more
efficient use of network resources.
Robust security strategies: IP-MAC port binding, ACL,
Port security, DoS defense, storm control, DHCP Snooping,
802.1X, radio authentication and more.
Optimize voice and video applications: L2 / L3 / L4 QoS and IGMP
snooping.
IPv6: IPv6 support with dual IPv4 / IPv6 stack, MLD snooping,
IPv neighbor discovery 6.
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE
802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE
802.1q, IEEE 802.1p , IEEE 802.1x
Interface 24 RJ45 10/100/1000 Mbps ports (Auto Negotiation / Auto
MDI / MDIX)
4 Gigabit SFP slots
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
100BASE-TX / 1000Base-T: category 5, 5e or higher UTP cable (maximum 100
m) 1000BASE-X: MMF, SMF
Number of Fans 2
PoE+ Ports (RJ45) Standard: compatible with 802.3at / af
PoE+ ports: 24 ports
Po supply E: 250 W
Dimensions 440 220 44 mm (17.3 8.7 1.73 in)
Mounting Rack mounting
Maximum Power Consumption 32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)
Maximum Heat Dissipation 109.53 BTU/h (with no PD connected)
1052.94 BTU/h (with 250 W PD connected)
Performance
Bandwidth / Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
Address Table MAC 8K
Packet Buffer Memory 4.1 Mbit
Jumbo frame 9KB
SOFTWARE FEATURES
Quality of Service Supports 802.1p CoS / DSCP priority
Supports 8 priority queues
Queue scheduling: SP, WRR, SP + WRR
Port / flow-based rate limiting
IPv6 QoS
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback Detection
802.3X Flow Control
LLDP, LLDP-MED
VLAN Supports up to 4K VLANs simultaneously (excluding the IDs of VLAN 4K)
MAC / protocol-based VLAN
Access Control List Packet Filtering L2 L4
MAC ACL
IP ACL
Combined ACL
IPv 6 ACL
AAA security
Port security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv 1.2
Broadcast/Multicast/Unknown-unicast Storm Control
DoS Defend
IPv6 Dual stack IPv4 / IPv6
Multicast Listener Discovery (MLD) Snooping
IPv neighbor discovery 6 (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6 / UDPv6
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet (v 6)
IPv 6 SNMP
IPv 6 SSH
IPv 6 SSL
HTTP/HTTPs
IPv 6 TFTP
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes (via OC300, OC200, Omada Cloud Controller or
Omada Software Controller)
Management Features Web-based GUI and CLI management
SNMP v1 / v2c / v3, compatible with public MIBs and TP-Link private MIBs
RMON (groups 1, 2, 3, 9)
CPU monitoring
Port Mirroring
Firmware upgrade: TFTP and web
System diagnostics: VCT
SYSLOG and public MIBs
Dual image
EEE
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System requirements Microsoft Windows XP, Vista or Windows 7,
Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
For more information about your hardware version, please go to the
support page, and refer to the datasheet for your version.

*PoE budget calculations are based on laboratory tests. The
actual PoE power budget is not guaranteed and will vary as a
result of client limitations and environmental factors.

** Zero-Touch provisioning requires the use of the cloud-based
Omada controller
Volume (m ³): 0.0180
