TP-LINK 8-Port Gigabit PoE Managed Switch JETSTREAM-L2 2X-SFP 53W TL-SG2210P

JetStream 8-Port Gigabit PoE Smart Switch with 2 SFP Slots TL-
SG2210P

Features 8 PoE ports with a total PoE power of 53W and PoE power management
management features
Gigabit Ethernet connections on all ports providing the
maximum data transfer speed
Integrated security strategies including 802.1Q VLAN, ACL,
Port Security and storm control to help protect your LAN investment
area
L2/L3/L4 QoS and IGMP snooping applications to optimize voice and video
WEB/CLI, SNMP and RMON management modes featuring
numerous management functions
Innovative energy-efficient technology that saves up to
50% of energy consumption

What does this product do?

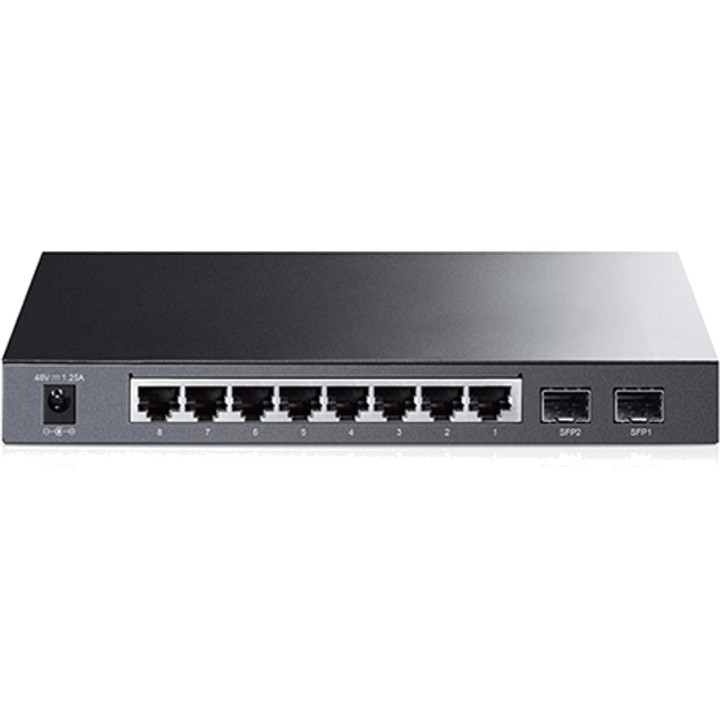

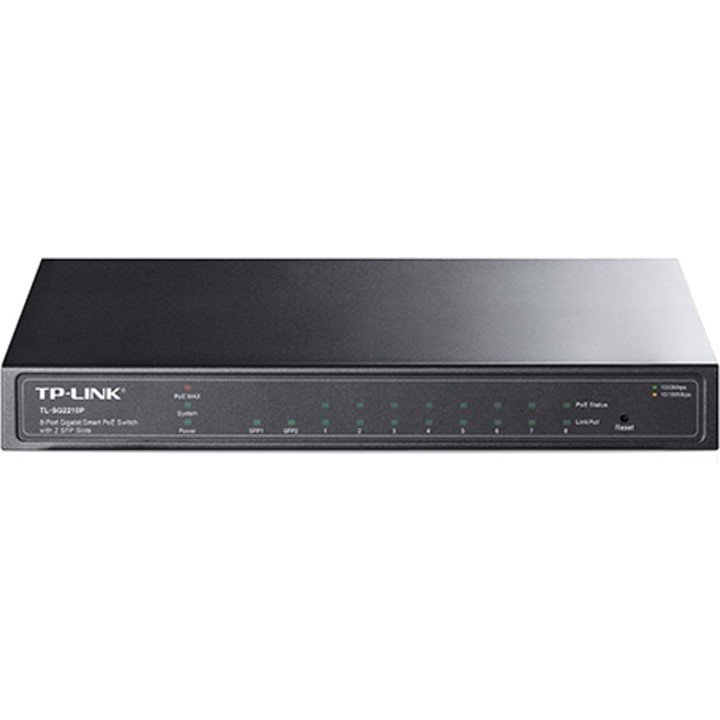

The TP-LINK TL-SG2210P Gigabit Smart Switch is equipped with 8
Gigabit RJ45 ports and 2 SFP slots. All RJ45 ports support the
PoE standard and provide a total PoE power budget of 53W, with PoE power
management features. The switch delivers high performance,
enterprise-level quality of service, security strategies and rich
Layer 2 management features 2.
The TP-LINK TL-SG2210P Gigabit Smart Switch is specially designed
for small and medium-sized business networks that require efficient network
management. The TL-SG2210P comes with a comprehensive set of
features, such as link aggregation, 802.1Q VLAN, Access Control
Lists (ACL), Quality of Service (L2 to L4 QoS), storm control
and IGMP Snooping to provide small and medium-sized businesses with a network
designed for growth while ensuring performance and
reliability. What’s more, its easy-to-use web management interface
means faster installation and configuration in less time,
providing the ideal solution for your business network.
IEEE 802.3af-compliant PoE power supply

The TL-SG2210P supports 8 IEEE 802.3af PoE ports and has a total power
budget of 53W to power any 802.3af-compatible device. It is an efficient
and cost-effective choice for use with
wireless access points, surveillance cameras, IP phones and other
devices that support PoE, while eliminating cables or lines
electrical devices operating nearby. Compact and flexible, the TL-SG2210P is ideal
for flexibly using PoE to deploy access points
wireless and IP-based network surveillance cameras for projects or
small business networks.
Advanced QoS Features

To integrate voice, data and video services on a network, the switch applies rich
QoS policies. The administrator can assign traffic priority
based on a variety of methods, including Port Priority,
802.1P Priority and DSCP Priority, to ensure that voice and video are
always clear, crisp and free of delays. In conjunction with the voice VLAN
supported by the switch, voice applications will operate with much simpler performance.
much simpler.
Rich Layer 2 Features

For greater Layer 2 application, the TL-SG2210P supports a full line
of Layer 2 features, including 802.1Q VLAN tagging, Port Isolation,
Port Mirroring, STP / RSTP / MSTP, Link Aggregation Control Protocol
(LACP), and 802.3x Flow Control. In addition, the switches
provide advanced network maintenance features, such as
Loop Detection, cable diagnostics, and IGMP Snooping. IGMP Snooping
ensures that the switch intelligently forwards multicast traffic
only to the appropriate subscribers, while the IGMP limit
and filtering restrict each subscriber at the port level to prevent unauthorized
multicast access.
Enterprise-level management features

The TL-SG2210P is easy to use and manage. It supports several
easy-to-use standard management features, such as an intuitive
web-based Graphical User Interface (GUI) or the industry-standard Command Line
Interface (CLI). SNMP (v1/2/3) and RMON support allow the
switch to poll useful status information and send alerts for
abnormal events.
PoE Features

Supports 802.3af
PoE Ports: 8 Ports
Available power: 53W

Layer 2 features

Static Link Aggregation / Link Aggregation Control Protocol
(LACP)
Up to 512 VLANs simultaneously (out of 4K VLAN IDs)
STP/RSTP/MSTP
IGMP snooping
LLDP(LLDP-MED)

Quality of service

4 priority queues
SUPPORT IEEE 802.1P
QoS DSCP
Traffic Limiting Features

Security Strategies

Access Control Lists (L2~L4 ACL)
Port Security
Storm Control
SSL and SSH encryption

Management

Web-based GUI
Command Line Interface (Telnet)
SNMP v1/v2c/v3
RMON (groups 1, 2, 3, 9)

Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000Mbps ports RJ45
2 1000Mbps SFP slots
(Auto-negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m)
100BASE-TX/1000Base-T: Category 5, 5e or higher UTP cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Number of Fans Fanless
Power Supply 100~240VAC, 50/60Hz
Maximum Power Consumption (PoE on) : 63.4W
Maximum (PoE off) : 10.4W
PoE Ports (RJ45) Standard: Compliant with 802.3af
PoE Ports: 8 Ports
Total available power: 53W
Dimensions 8.2* x 4.9 x 1.0 inches (209 x 126 x 26mm)
Performance
Bandwidth / Backplane 20Gbps
Packet Forwarding Rate 14.9Mpps
MAC 8k Handlebar Ends
Packet Buffer Memory 512KB
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Supports 802.1p CoS/DSCP priority
Supports up to 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based traffic limiting
Voice VLAN
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List L2L4 packet filters based on
MAC addresses, IP addresses, TCP/UDP ports, 802.1p, DSCP, protocol and ID
VLAN, both source and destination
Time-range based
Security SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown Unicast Storm Control
L2 Switching Features Inspection IGMP V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups and 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filter/Guard
Protection TC/Root
Loop detection
Flow control 802.3x
LLDP(LLDP-MED)
Management Web-based GUI and CLI management
SNMP v1/v2c/v3 compatible with TP-LINK public and private MIBs
RMON (groups 1, 2, 3, 9)
CPU Monitoring
Port mirroring
Time setting: SNTP
Firmware update: TFTP & Web
System diagnostics: VCT
SYSLOG & Public MIBS
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT TL-SG2210P
Power adapter
Quick installation guide
Resource CD
Gum Feet
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista
or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0~40
(32~104),
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0052
