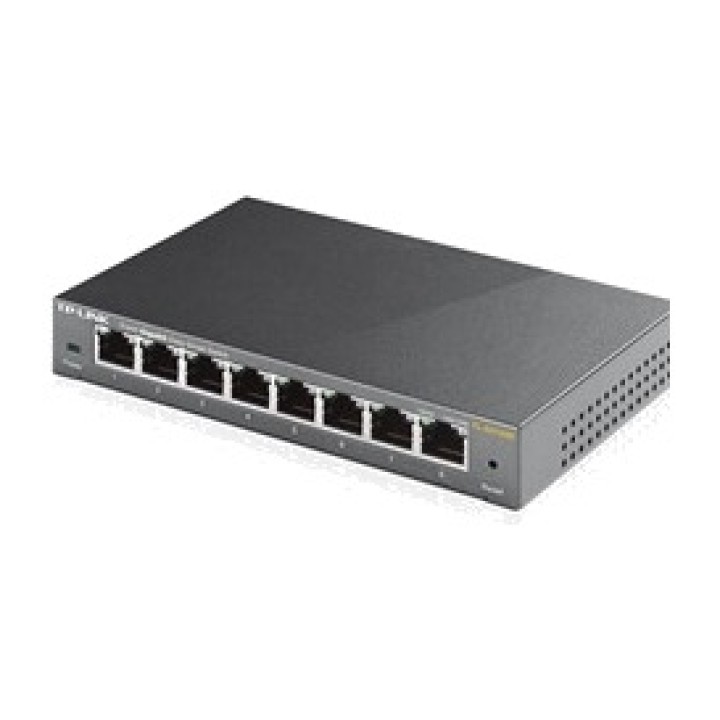

TP-LINK 8-port Gigabit managed switch EASY-SMART L2 TL-SG108E

8 10/100/1000Mbps ports RJ45
Provides network monitoring, traffic prioritization and
VLAN Innovative energy-efficient technology that reduces power consumption
energy by up to 80%
Easy network setup with plug-and-play connectivity
Centralized management of all Easy Smart Switches with the
Easy Smart Configuration Utility

8 10/100/1000 Mbps ports offering high-speed file transfers
files instantly
Innovative energy-efficient technology that reduces power consumption
energy 80%
IEEE 802.3x flow control provides reliable data transfers
16K Jumbo Frames improve the performance of large data transfers
of data
Effective network monitoring through port mirroring,
loop prevention and cable diagnostics
Port- and tag-based QoS allows latency-sensitive traffic to
flow very smoothly
VLAN features improve network security through
Traffic segmentation
IGMP Snooping optimizes multicast applications
Centralized management of all Easy Smart switches with the
Easy Smart Configuration Utility
Hardware Features
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3x, IEEE 802.1q, IEEE 802.1p
Interfaces 8 10/100/1000Mbps ports RJ45
AUTO Negotiation/AUTO MDI/MDIX
Interfaces 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Multimedia Network 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Quantity of Fans No Fan
Power Supply 100-240VAC, 50/60Hz
Dimensions 158*101*25 mm
Maximum Power Consumption: 5.46W (220V/50Hz)
Performance
Packet Forwarding Rate 11.9Mpps
Address Table MAC 8K
Packet Buffer Memory 2Mb
Jumbo frame 16KB
SOFTWARE FEATURES
Quality of Service Supports port-based and 802.1p priority
Supports 4 Priority Tapes
Traffic limiter
Storm Control
Features L2 IGMP Snooping
Port Aggregation
Port Mirroring
Cable Diagnostics
Loop prevention
VLAN Supports up to 32 VLANs simultaneously (from among 4,000
VLAN)
VLAN MTU/Port/Tag
Store-and-Forward transmission method
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG108E
Power cable
Installation guide
Resource CD
Rubber feet
System Requirements Microsoft Windows XP, Vista Windows 7 or
Windows 8, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature : 0?~40? (32?~104?)
Storage Temperature : -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Volume (m ³): 0.0022
