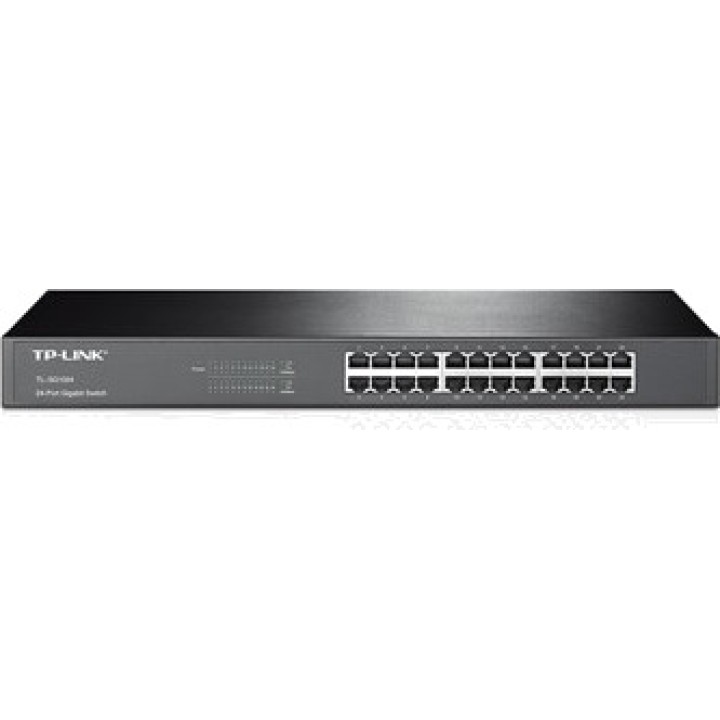

TP-LINK 24-port unmanaged Gigabit rack switch 1000MBPS 1U TL-SG1024

24-Port Gigabit Switch TL-SG1024

24 RJ45 ports at 10/100/1000 Mbps
Innovative energy-efficient technology saves up to 40% of
ENERGY
Supports MAC address learning (Auto-Learning) and MDI/MDIX
Automatic
Standard 19-inch metal casing

What is this product used for?

The TL-SG1024 Gigabit Ethernet Switch offers you a high-performance solution,
low-cost, easy-to-use, seamless and standard for upgrading your old network to
a 1000Mbps network. All ports support auto MDI / MDIX, so there is no
need to worry about the cable type; just plug it in and
done.
Furthermore, with innovative energy-efficient technology, the TL-
SG1016 can save up to 25% of power consumption, and since 80% of the
packaging material can be recycled, it is an eco-friendly solution for your network
network.
TP-LINK energy-efficient technology

This next-generation TL-SG1024 Gigabit Switch features the latest and
innovative energy-efficient technologies that can greatly expand your network capacity with much
less power consumption. It adjusts
automatically adjusts power consumption according to the link status
to limit your network’s carbon footprint. It also complies with the EU RoHS Directive,
which prohibits the use of certain hazardous materials. In addition, 80% of the
packaging material can be recycled.
TOP PERFORMANCE

All 24 ports are Gigabit RJ-45 ports that provide high
file transfer rates and are also compatible with 10Mbps and 100Mbps Ethernet devices.
With its non-blocking architecture, the TL-SG1024 forwards and
filters packets at full wire speed for maximum performance.
With its 10KB Jumbo Frame, the performance of large file transfers is
greatly improved. IEEE 802.3x flow control for the
Full Duplex mode and Back-Pressure for Half Duplex mode alleviate
traffic congestion and make the TL-SG1024 work reliably. It is a
perfect choice for upgrading your network to Gigabit while properly protecting your
previous investment.
Easy to use

The automatic features of this Gigabit Switch make installation plug
and play and hassle-free. No configuration is required. Its auto
MDI / MDIX eliminates the need for crossover cables, and its auto-negotiation at
each port detects the link speed of a network device (10, 100 or
1000 Mbps) intelligently adjusts for optimal compatibility and performance
optimal.

Innovative energy-efficient technology saves up to 40% of
ENERGY
100% data filtering rate, eliminating all erroneous packets
Supports IEEE 802.3x flow control in Full Duplex mode and
Back-Pressure in Half Duplex mode
Non-blocking switching architecture for forwarding and filtering packets
at full wire speed for optimal performance.
48 Gbps switching capacity
Auto MDI/MDIX detection eliminates the need for cables
crossover.
Supports automatic learning and aging of MAC addresses (Auto-
Learning and Auto-aging)
Supports N-Way port auto-negotiation, Store-and-Forward
Compact design for rack mounting or desktop use
Easy installation with Plug and Play

Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface: 24 RJ45 ports at 10/100/1000 Mbps
Auto-negotiation, auto MDI/MDIX
Network media 10BASE-T: category 3, 4, 5 UTP cable (100 meters maximum)
100BASE-TX/1000BASE-T: category 5, 5e or above UTP cable (100 meters
maximum)
Quantity of Fans No Fan
Power Supply 100-240VAC, 50/60Hz
Maximum Power Consumption: 14.6W (220V/50Hz)
Dimensions 17,3*7,2*1,7 inches (440*180*44 mm)
Performance
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
Address Table MAC 8K
Jumbo frame 10KB
QoS 802.1p/DSCP QoS*
*Only for V11 and later version
Innovative Eco Technology, energy-efficient technology that
saves up to 25% energy
Store-And-Forward transfer method
Others
FCC, CE, RoHS certifications
Package Contents 24-Port Gigabit Desktop Switch
power cord
User manual
Rackmount Kits
Rubber Feet
System Requirements Microsoft Windows XP, Vista, Windows 7 or
Windows 8, MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0~40
(32~104),
Storage temperature : -40~70 (-40~158),
Operating humidity: 10%~90% non-condensing,
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0093
