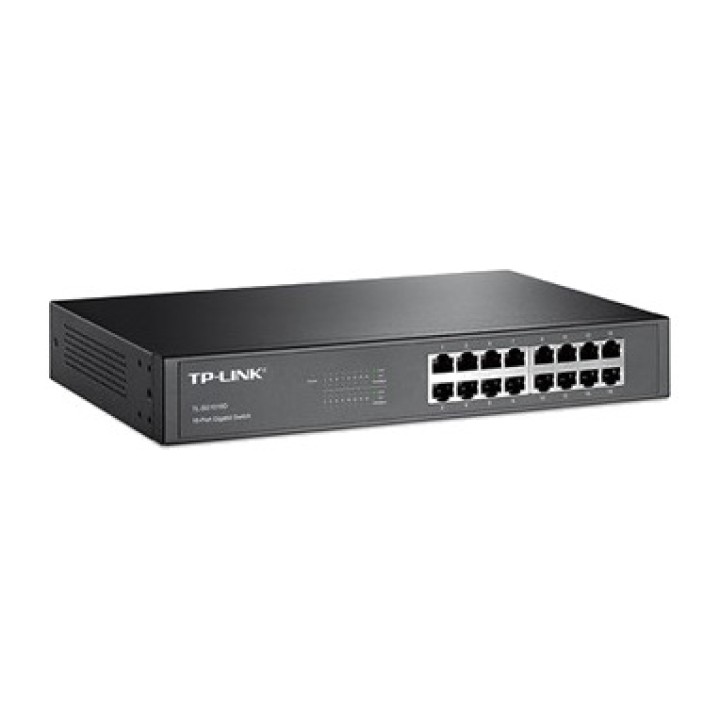

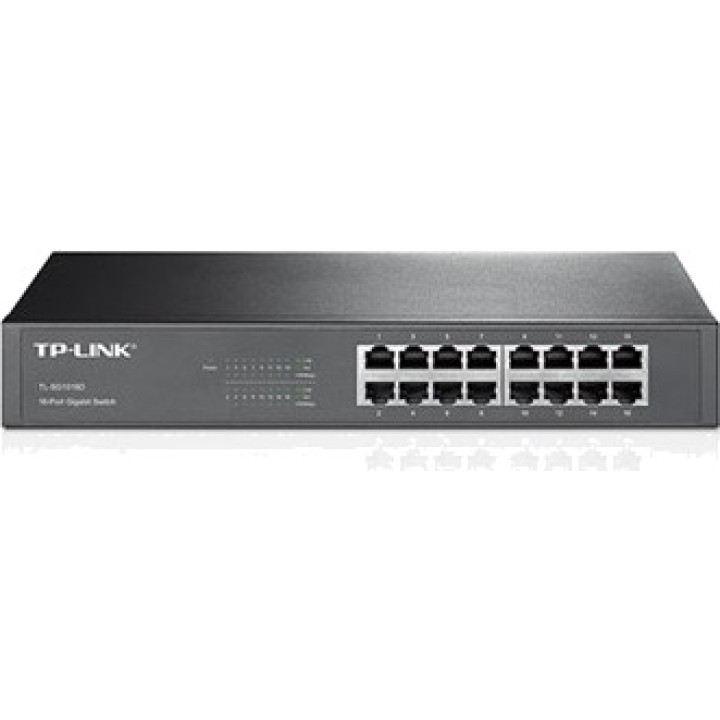

TP-LINK 16-port unmanaged Gigabit switch 1000MBPS TL-SG1016D

16-Port Gigabit Switch TL-SG1016D

16 ports at 10/100/1000 Mbps
Innovative energy-efficient technology saves up to 40%* of
ENERGY
Supports MAC address learning (Auto-Learning) and negotiation
Automatic MDI/MDIX
Plug & Play design

What is this product used for?

The TL-SG1016D Gigabit Ethernet Switch offers you a high-performance upgrade at
low cost, easy to use, seamless and standard, to upgrade the
old network to a 1000Mbps network. All 16 ports support auto MDI /
MDIX, so there is no need to worry about the cable type; just
plug it in and you’re ready to go. In addition, with its innovative
energy-efficient technology, the TL-SG1016D can save up to 15% of
its power consumption, and since about 80% of the packaging material can be
recycled, it is an eco-friendly solution for your business network.
TP-LINK energy-efficient technology

This next-generation TL-SG1016D Gigabit switch features the latest
innovative energy-efficient technologies that can greatly expand its network
capacity with much less power. It adjusts
automatically adjusts power consumption according to the link status
to limit your network’s carbon footprint. It also complies with the EU RoHS
directive, which prohibits the use of certain hazardous materials. In addition, 80%
of the packaging material can be recycled.
TOP PERFORMANCE

All 16 of its ports are Gigabit RJ-45 ports, which can provide
high-speed file transfers and are also compatible with
10 Mbps and 100 Mbps Ethernet devices. With its non-blocking architecture, the TL-
SG1016D forwards and filters packets at full wire speed for
maximum performance. With 10 KB Jumbo Frames, the performance of
large file transfers has been significantly improved.
In addition, IEEE 802.3x flow control for Full Duplex mode and
backpressure for Half Duplex mode reduce traffic congestion and
make the TL-SG1016D completely reliable. It is a perfect choice
for upgrading your network to Gigabit while properly protecting your
previous investment.
Easy to use

The automatic features of this Gigabit switch make installation
plug and play and hassle-free. No configuration is required. The
MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on
each port detects the link speed of a network device (10, 100 or
1000 Mbps) and intelligently adjusts for optimal compatibility and
performance.

Innovative energy-efficient technology saves up to 40% of
ENERGY
Supports IEEE 802.3x flow control in Full Duplex mode and Back-Pressure
in Half Duplex mode
Non-blocking switching architecture for forwarding and filtering
packets at full wire speed for high performance
.
32 Gbps switching capacity
Features 10K Jumbo Frames, which improve the performance of
large file transfers
Auto MDI/MDIX detection eliminates the need for cables
crossover.
Supports automatic learning and aging of MAC addresses (Auto-
Learning and Auto-aging)
Store-and-Forward switching function
Intelligent integration of 10 Mbps, 100 Mbps and 1000 Mbps hardware
thanks to automatic port negotiation.
Easy installation with Plug and Play

Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 16 RJ45 ports at 10/100/1000 Mbps with auto-negotiation
(Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (100 metres maximum)
100Base-Tx/1000Base-T: category 5, 5e UTP cable (maximum 100 meters)
Quantity of Fans No Fan
Power Supply 100-240VAC, 50/60Hz
Maximum Power Consumption: 13.3W (220V/50Hz)
Dimensions 11,6*7,1*1,7 inches (294*180*44 mm)
Performance
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
Address Table MAC 8K
Jumbo frame 10KB
Innovative Eco Technology, energy-efficient technology that
save up to 15%* energy
Store-And-Forward transfer method
Others
FCC, CE, RoHS certifications
Package Contents 16-Port Gigabit Switch
power cord
User manual
Rackmount Kits
Rubber Feet
System Requirements Microsoft Windows XP, Vista, Windows 7 or
Windows 8, MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0~40
(32~104),
Storage temperature : -40~70 (-40~158),
Operating humidity: 10%~90% non-condensing,
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0063
