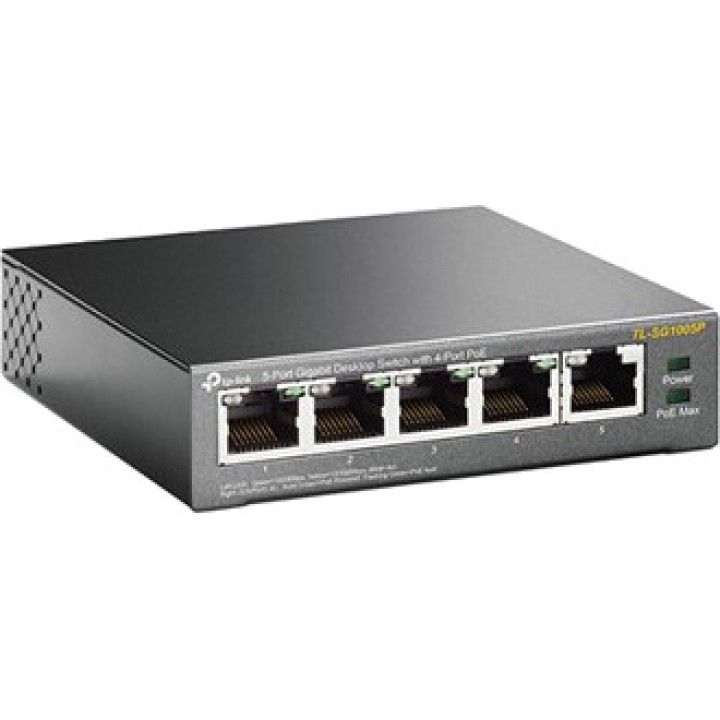

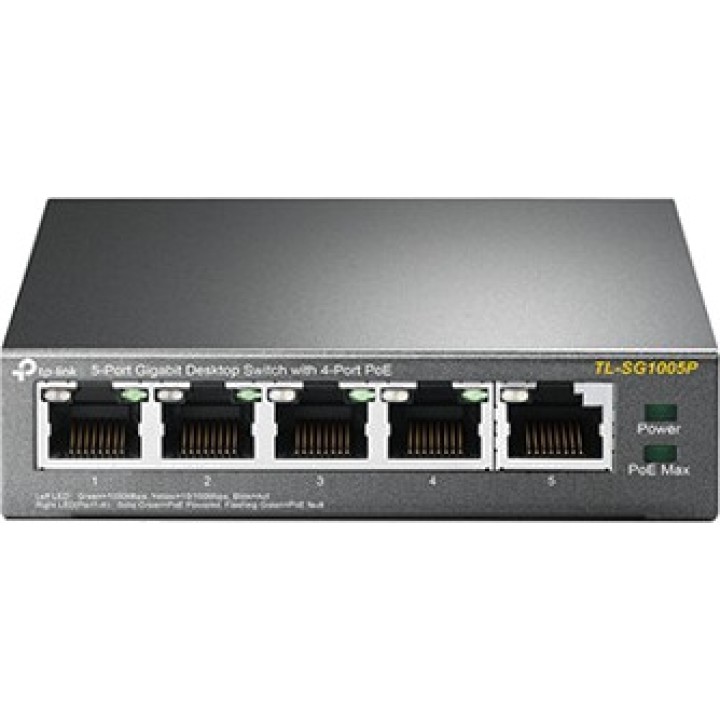

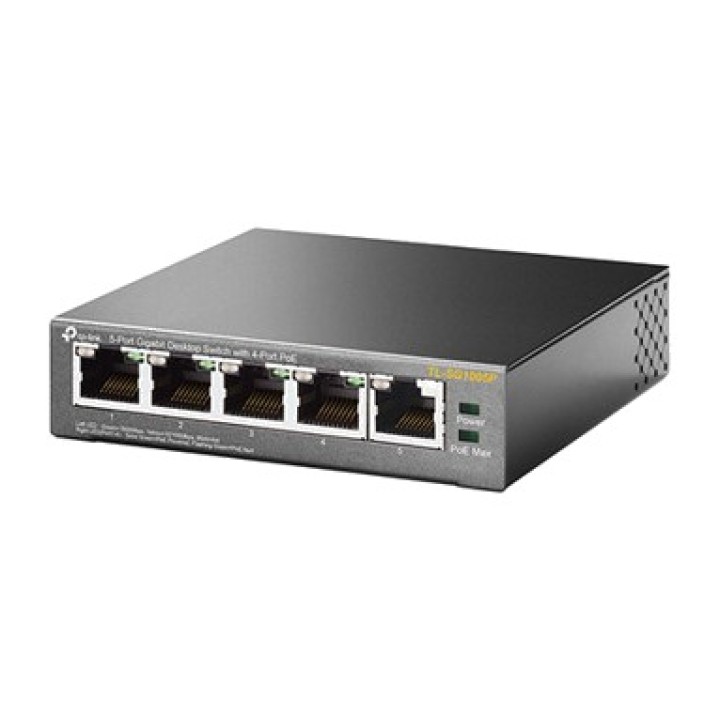

TP-LINK 5-port unmanaged Gigabit switch with 4 PoE ports 56W 802.3AF TL-SG1005P

5-Port Gigabit Desktop Switch with 4 PoE ports E TL-SG1005P

5 RJ45 10/100/1000Mbps ports
With 4 PoE ports, power and data are transmitted over a single
cable Compatible with devices compliant with the IEEE 802.3af standard, allows the
expansion of a home or office network
QoS 802.1p/DSCP enables the prioritization of sensitive traffic to ensure low
latency
Supports PoE up to 15.4 W per port
Supports a total PoE power of 56 W across all ports
No configuration or installation required

What is this product used for?

The TL-SG1005P is an unmanaged 5-port 10/100/1000 Mbps switch,
which requires no configuration and provides 4 PoE ports (Power
over Ethernet). It can automatically detect and supply power to
devices powered in accordance with the IEEE 802.3af standard. In this case,
electrical power is transmitted along with data over a single cable,
allowing you to extend your network to areas without power outlets or electrical
cables, where devices such as Access Points,
IP cameras or IP phones, etc., can be installed.
Power over Ethernet

4 of the switch’s 5 auto-negotiating RJ45 ports (ports 1 to 4)
support Power over Ethernet (PoE) mode. These PoE ports automatically detect
the presence of devices compatible with the IEEE 802.3af standard
and supply them with electrical power

Overload protection

The TL-SG1005P features a priority function* that helps protect the
equipment when the system’s power supply is overloaded. If the
power consumption of all PoE devices is greater than or equal to 56 W, a
power priority is assigned among the PoE ports, according to which the switch
cuts power to the port with the lowest priority
priority.

Port Priority Function

Priority (port 1 >, port 2 >, port 3 >, port 4): This function helps
protect the system under normal operating conditions, which means that
Port 4 will stop supplying power when the total power of all
powered devices exceeds 56 W. For example, ports 1, 2 and 4 are
using 15.4 W (the maximum power per port is 15.4 W), so the
the system’s total power supply is 56 W. If a PoE device is connected
that consumes an additional 10 W on port 3, the device disconnects the
power supply to port 4 to protect itself. This way, ports 1 and 2
will consume 15.4 W, port 3 will use 10 W, and no power will be supplied
to the port 4.
Easy to use

The TL-SG1005P is easy to install and use. It requires no
configuration or installation. With its desktop design and outstanding
performance and quality, the TP-LINK TL-SG1005P 5-port Gigabit switch with 4 PoE ports is
an excellent choice for expanding both your home network
and your office network
Hardware Features
Interface: 5 RJ45 ports at 10/100/1000 Mbps
Auto-negotiation, auto MDI/MDIX
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 metres)
EIA/TIA-568 100 STP (100 m maximum)
100Base-Tx: UTP category 5, 5e cable (100 metres maximum)
EIA/TIA-568 100 STP (100 m maximum)
1000BASE-T: Category 5, 5E, 6 or higher UTP cable (maximum 100 metres)
EIA/TIA-568 100 STP (100 m maximum)
Number of Fans Fanless
Maximum Power Consumption (PoE on): 63.31W (220V/50Hz)
Maximum (PoE off): 4.26W (220V/50Hz)
External Power Supply External Power Supply (Output:
48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compatible
PoE Ports: Port1- Port4
Power supply: 56W
Core Network Bandwidth 10Gbps
Address Table MAC 2K
Dimensions 99.8 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)
SOFTWARE FEATURES
Advanced Features Compatible with IEEE Powered Devices
802.3af
Priority function
MAC Addresses: Auto Learning and Auto Aging
Flow control EEE802.3x
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward (Storage and forwarding)
Others
FCC, CE, RoHS certifications
Package Contents TL-SG1005P, Power Adapter, User Manual
user
Consumption 4.26 watts (max. without connected PoE devices)
63.31 watts (max. with connected PoE devices consuming 56W)
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0031
