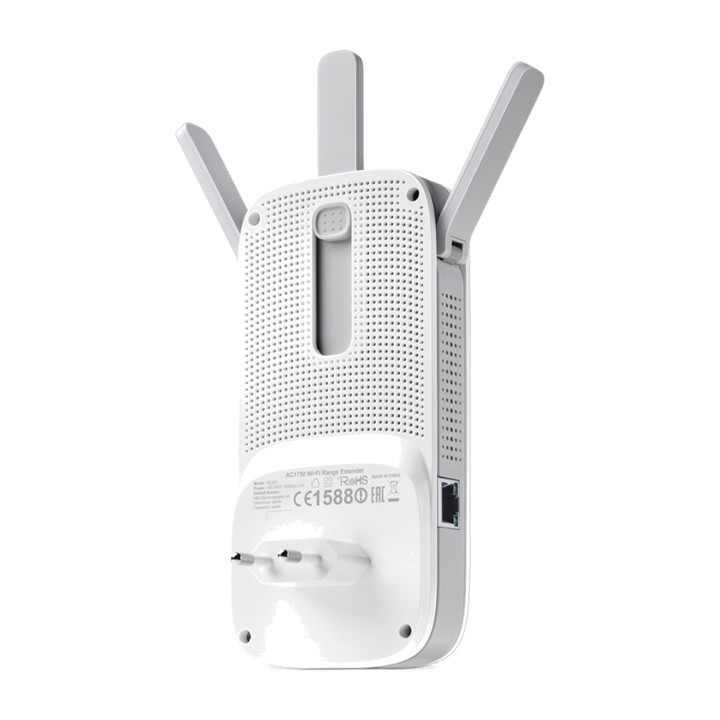

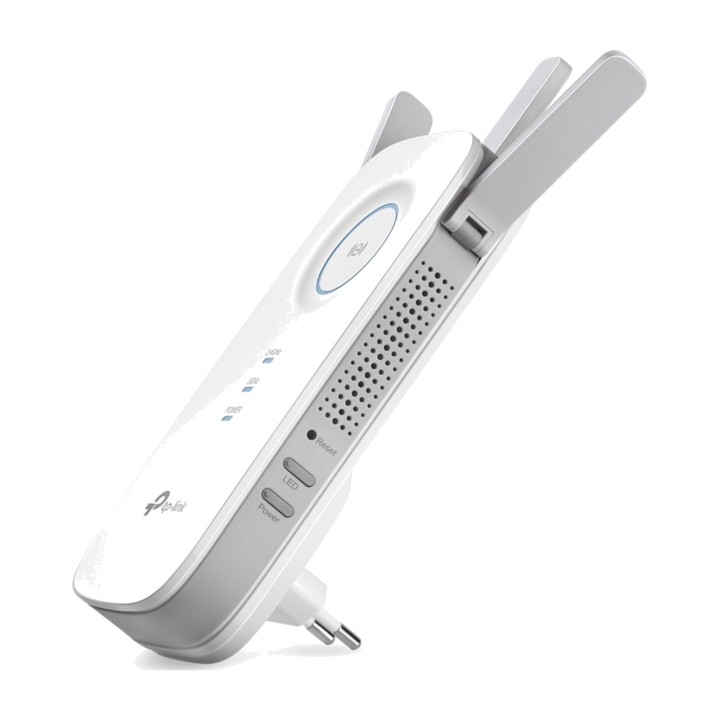

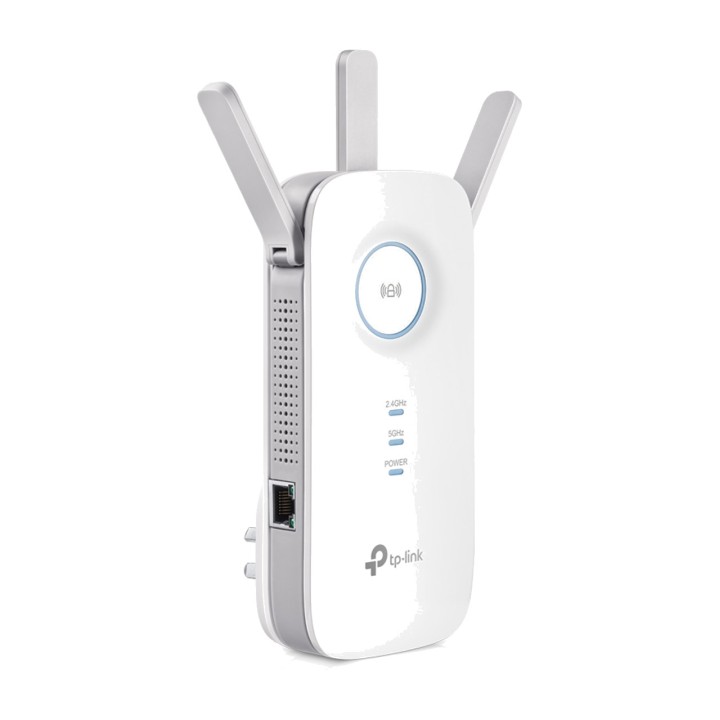

TP-LINK Dual-band Wi-Fi 5 repeater with 3 antennas and Gigabit port AC1750 1300MBPS RE450

Wi-Fi range extender AC1750 RE450

Expands the Wi-Fi network for maximum performance
Speeds of 450Mbps on 2.4GHz and 1300Mbps on 5GHz, reaching
Wi-Fi speeds of up to 1750Mbps
Three adjustable external antennas provide optimal Wi-Fi connections
coverage and reliability
Gigabit Ethernet port that acts as a wireless adapter to
connect a device to your network at gigabit speed
Link Backup. Backup function in case of connection drops on one of the
bands.
The intelligent signal light helps find the best coverage location
for optimal Wi-Fi by showing signal strength
Works with any Wi-Fi router or wireless access point

Hardware Features
Plug Type EU, UK, US
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE
802.11b
Interface 1 Ethernet Port * 10/100/1000Mbps (RJ45)
Buttons RE (Range Extender) Button, Reset Button, LED Button, Power Button
Power Consumption 10WMaximum power consumption
Dimensions 163 x 76.4 x 66.5mm
Antennas 3* External
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mpbs
5GHz Reception Sensitivity
11a 6Mbps: -93dBm @10% PER
11a 54Mbps: -76dBm @10% PER
11ac HT20 mcs8: -68dBm @10% PER
11ac HT40 mcs9: -64dBm @10% PER
11ac HT80 mcs9: -61dBm @10% PER
2.4GHz
11g 54M: -77dBm @10% PER
11n HT20 MCS7: -73dBm @10% PER
11n HT40 MCS7: -70dBm @10% PER
Wireless Modes Range Extender
Wireless Features Wireless Statistics
Concurrent mode operation on both the 2.4GHz / 5GHz WiFi bands
High-Speed Mode for fast gaming and HD video
Access control
LED Control
Domain Access Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <,20dBm(2.4GHz)
<,23dBm(5GHz)
Others
CE, FCC, RoHS certifications
Package Contents Wi-Fi range extender AC1750 RE450
Quick installation guide
Box dimensions 202x 125 x 86mm
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0C~30C
(32F~86F)
Storage temperature : -40C~70C (-40F~158F)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0021
