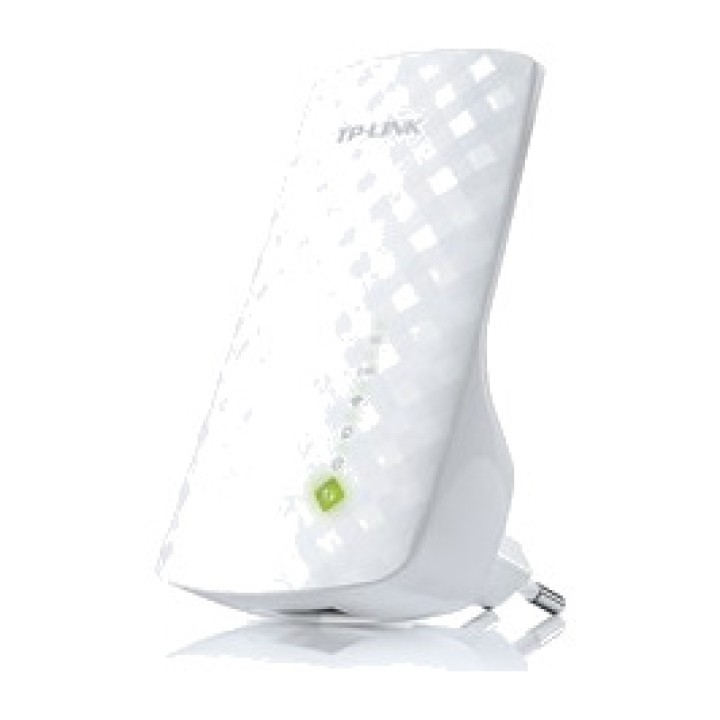

TP-LINK Dual-band WiFi 5 range extender with direct plug-in AC750 433MBPS RE200

Its high-speed mode limits the connection to one band (2.4 GHz or 5 GHz)
to deliver maximum performance.
Range Extender mode boosts the wireless signal to areas
that were previously out of reach or are difficult to wire
The device's miniature wall-mount design
makes installation easy and allows flexible relocation.
Easily extend wireless coverage at the touch of a button
Range Extender
Its Smart Signal Indicator helps you find the ideal location
for placing the range extender
The Ethernet port allows the Extender to function as an adapter
wireless to connect wired devices
Wireless transfer rates of 300Mbps on 2.4GHz + 433 Mbps
on 5GHz are ideal for video streaming, online gaming and calls over
Internet
Supports domain name-based login (for
Advanced management
Compatible with 802.11n/g/b/ac wireless devices
Advanced 64/128/152-bit WEP encryption , WPA-PSK / WPA2-PSK
protect your network against security threats
Hardware Features
Standards and protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE
802.11b
Interfaces 1 10/100M Ethernet port (RJ45)
Plug type EU, UK, US, AU
Buttons RE (Range Extender) button, Reset button
Dimensions (W X D X H) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antennas 3 internal
Power consumption Over 6.5W
WIRELESS FEATURES
Frequency 2.4GHz and 5GHz
Transfer rates 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mpbs
EIRP < 20 dBm (EIRP)
Receive sensitivity 2.4G:
270M: -70dBm @10% PER
130M: -70dBm @10% PER
108M: -73dBm @10% PER
54M: -75dBm @10% PER
11M: -86dBm @8% PER
6M: -92 dBm @10% PER
1M: -94dBm @8% PER
5G:
390M: -60dBm @10% PER
29.3M: -83dBm @10% PER
180M: -64dBm @10% PER
13.5M: -87dBm @10% PER
78M: -68dBm @10% PER
6.5M: -90dBm @10% PER
54M: -75dBm @10% PER
6M: -90dBm @10% PER
Wireless Modes Range Extender
Wireless Features WMM (Wi-Fi Multimedia)
Wireless Statistics
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Others
CE, FCC, RoHS certifications
Package Contents Universal WiFi Range Extender AC750
RE200
Ethernet cable RJ-45
Utility CD
Quick installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista
or Windows 7, 8, Mac OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature: 0C~40C
(32F~104F)
Storage temperature : -40C~70C (-40F~158F)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0014
