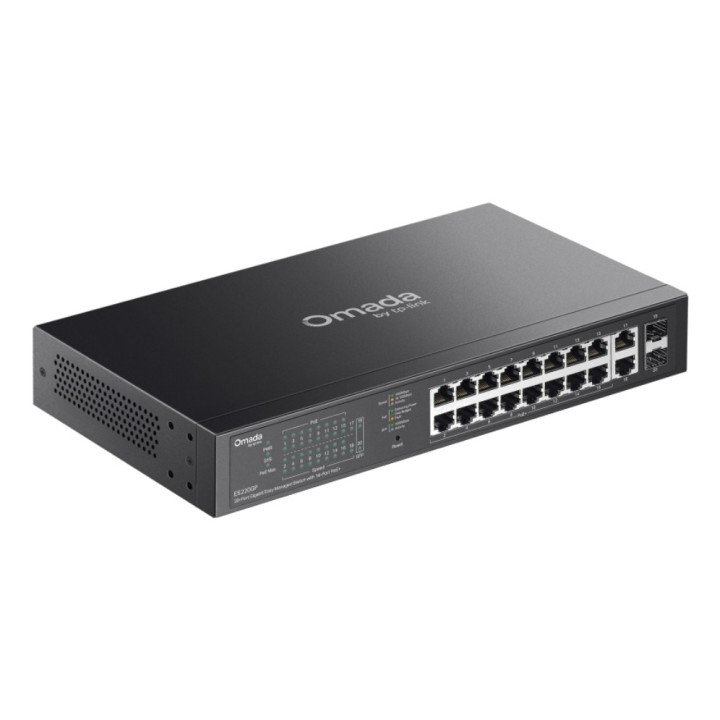

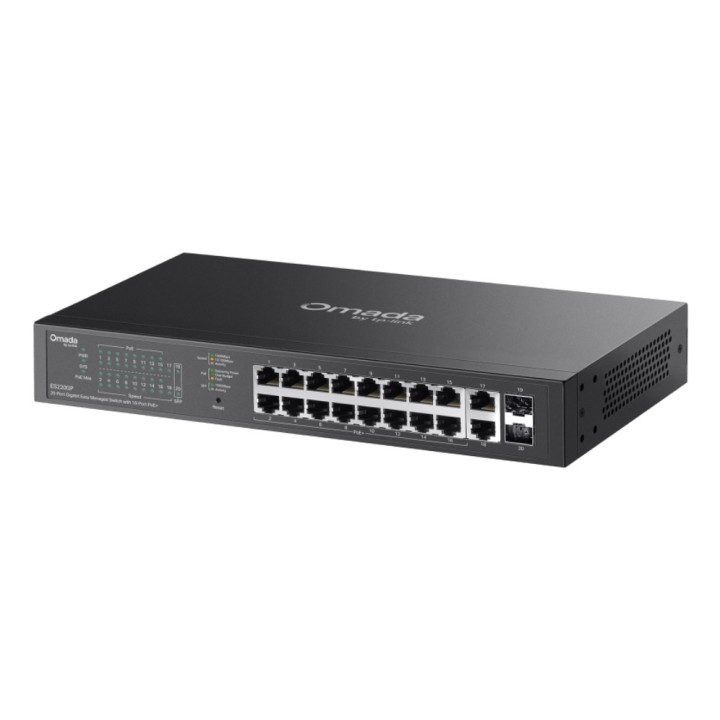

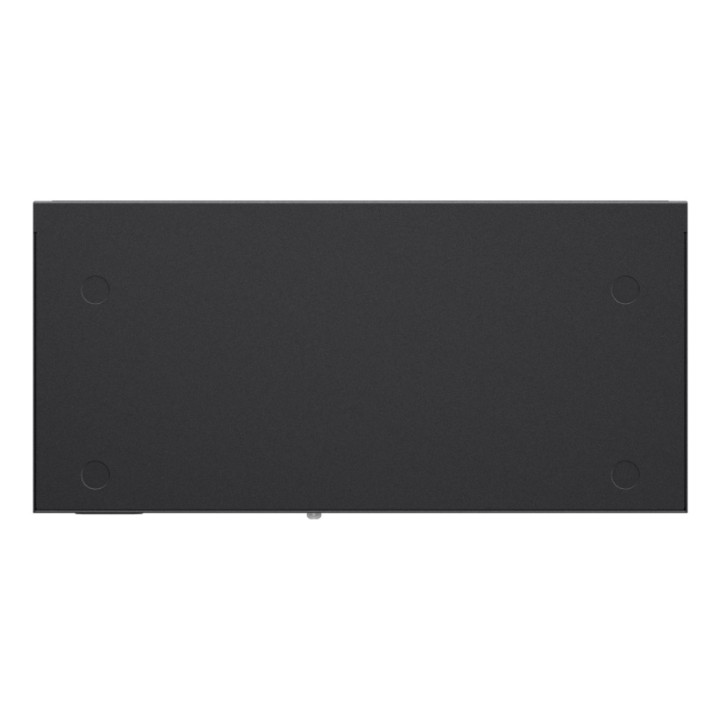

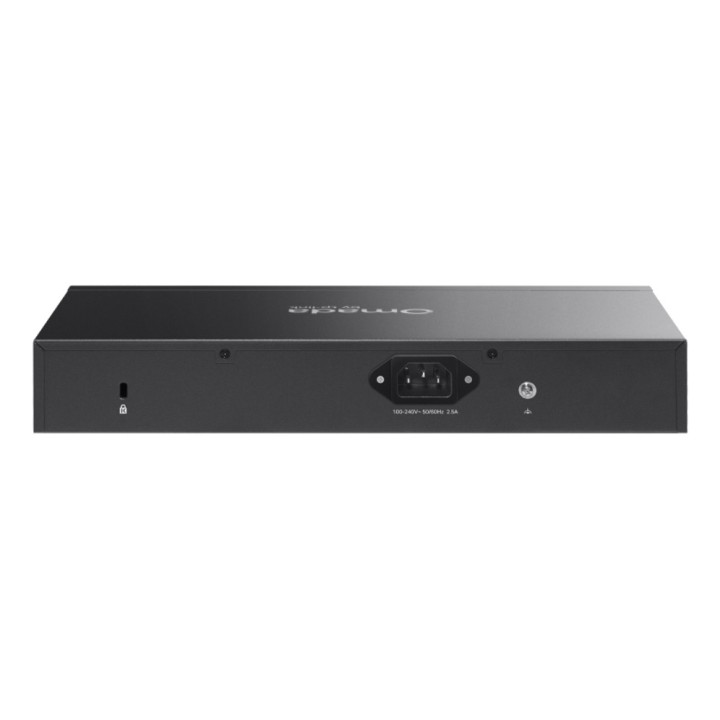

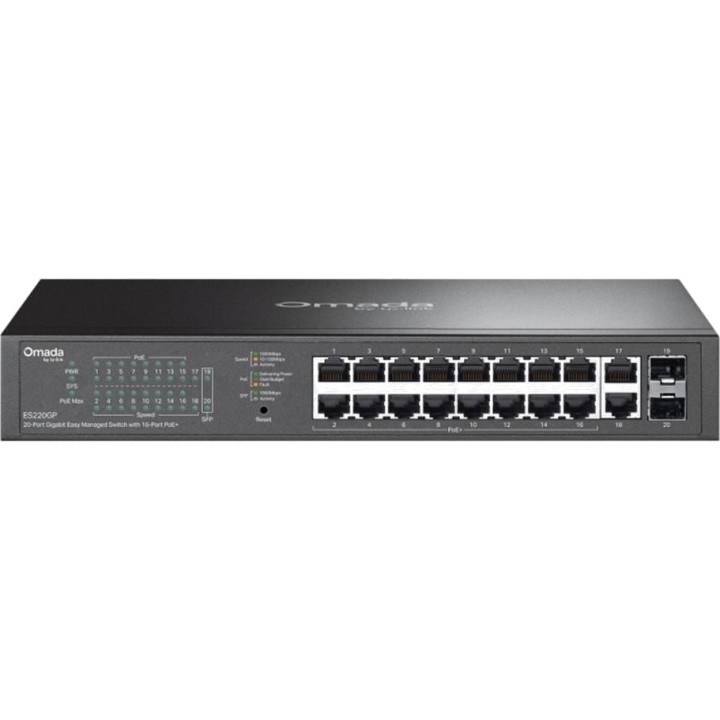

TP-LINK 20-port managed Gigabit PoE+ switch OMADA ES220GP 2X-SFP MGS0000032921

Features of the Omada ES220GP Managed Switch with 18 Gigabit Ports and PoE+
The Omada ES220GP is a managed Gigabit switch designed for professional networks that require high performance, advanced control and PoE+ power. With 18 Gigabit RJ-45 ports and 2 SFP slots, it can connect numerous network devices such as access points, IP cameras or VoIP systems. Its web-based administration and cloud management via the Omada platform make it easy to monitor and configure the network centrally.
Gigabit connectivity with 18 Ethernet ports
This switch offers 18 Gigabit Ethernet RJ-45 ports with speeds of up to 1000 Mbit/s, providing a fast and stable connection for business environments, offices or professional installations. It also features 2 SFP slots for expanding the network via fibre links.

18 Gigabit Ethernet ports (10/100/1000)
2 SFP slots for fiber links
Auto MDI / MDI-X and auto-negotiation
Transfer speed of up to 1000 Mbit/s

PoE+ power for network devices
PoE+ support lets you power compatible devices directly through the Ethernet cable, eliminating the need for additional power adapters. This simplifies the installation of access points, IP cameras or VoIP phones.

16 PoE+-compatible ports
Power of up to 30 W per port
Total PoE budget of 150 W
Compatible with IEEE 802.3af and IEEE 802.3at standards

Advanced performance for professional networks
The Omada ES220GP is designed to handle demanding networks thanks to its 40 Gbit/s switching capacity and 8000-entry MAC table. This ensures efficient traffic management and stable performance, even with multiple devices connected.

Switching capacity of 40 Gbit/s
Forwarding rate of 29,76 Mpps
MAC table with 8000 addresses
Packet buffer of 4 MB

Intelligent management and advanced network features
This switch includes web-based administration and cloud management for easy network control. It also features advanced functions such as VLAN, QoS and storm control to optimize performance and security.

Web-based management
Management via the Omada cloud
Quality of Service (QoS) support
VLAN support with up to 32 VLANs
Port mirroring and storm control

Robust design and quiet operation
The switch features a durable metal housing and a rack-mount design, ideal for professional installations or communications cabinets. In addition, its fanless operation ensures a quiet working environment.

Durable metal housing
Rack mounting
Fanless operation
Noise level of 20,1 dB

Other specifications

Network standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at , IEEE 802.3x
Queue algorithm: Weighted Round Robin (WRR)
Jumbo Frame support
IGMP and multicast support
Input voltage AC: 100 - 240 V
Frequency: 50/60 Hz
Maximum consumption : 182,43 W
Operating temperature: -5 to 40 °C
Storage temperature: -40 to 70 °C
Operating humidity : 10 - 90%
Dimensions: 294 x 180 x 44 mm
Mean time between failures (MTBF): 320156 h
Certifications: CE, FCC, RoHS
Included cables: AC power cable
User manual included
Volume (m ³): 0.0092
