TP-LINK 6-port managed Gigabit industrial switch for DIN rail IES206G L2 MGS0000030594

Features of the TP-Link Managed L2 Switch IES206G
The **TP-Link IES206G** is a Layer 2 managed switch designed for demanding industrial applications, thanks to its **resistance to extreme temperatures**, DIN mounting and fanless operation. It offers a robust and flexible solution for environments such as automation, process control or outdoor networks, where reliability is crucial. With a **switching capacity of 12 Gbps**, web and cloud management, and support for standard industrial protocols, this model is suited to critical deployments requiring continuous connectivity and remote administration.
Industrial design for extreme environments
This switch is designed to operate in harsh conditions, with an operating temperature range of **-40 °C to 75 °C**, making it ideal for industrial infrastructure, energy or video surveillance. Its **fanless design**, **wall or DIN rail mounting** and **redundant power supply** provide high availability and ease of installation.

Operating temperature: -40 °C to 75 °C
Fanless, quiet and dust-resistant design

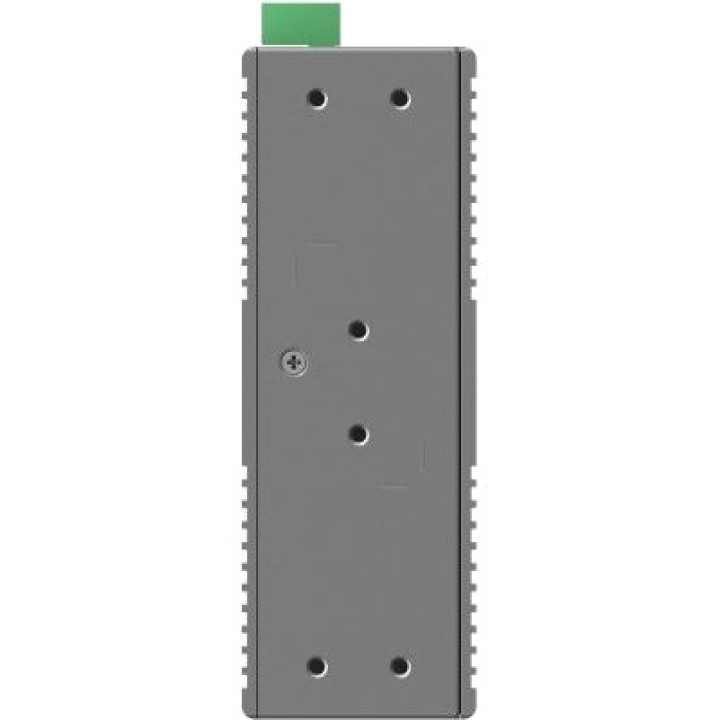

DIN rail and wall mounting support

Gigabit connectivity with SFP modules

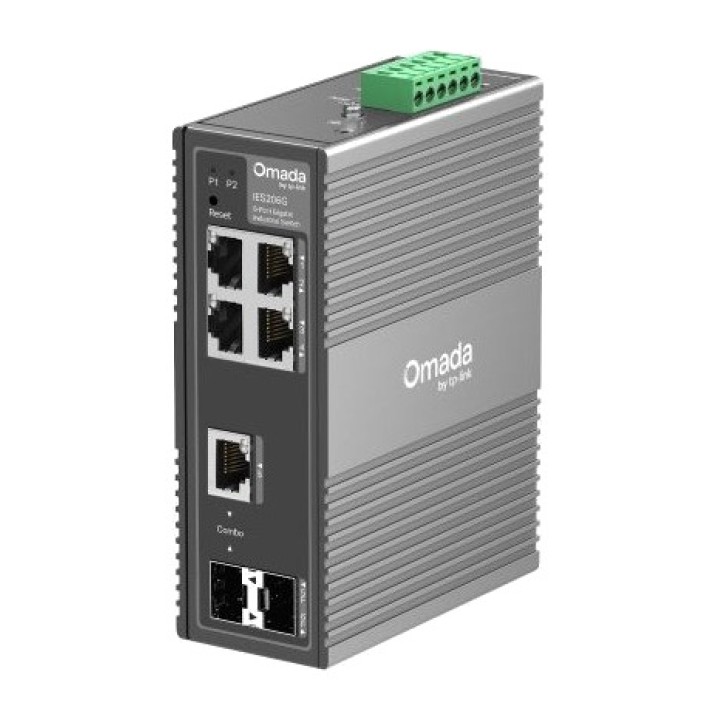

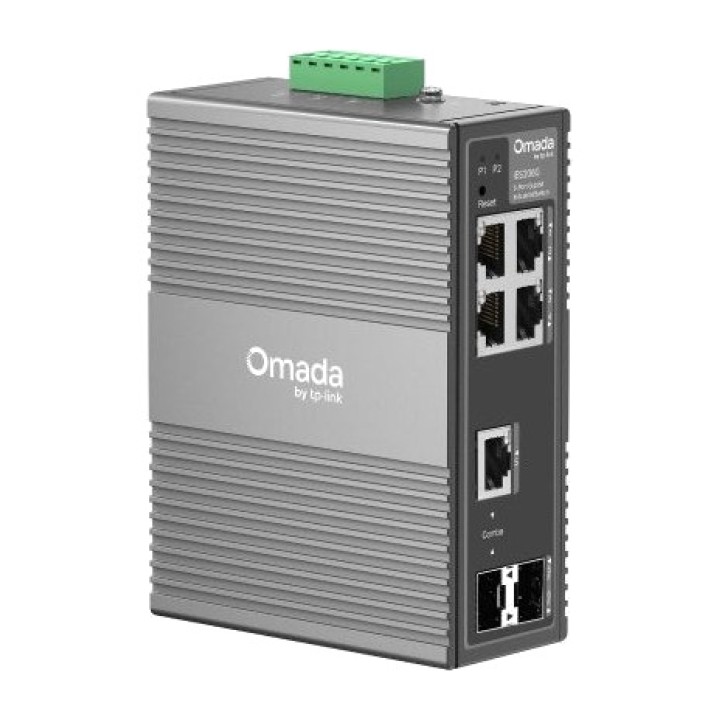

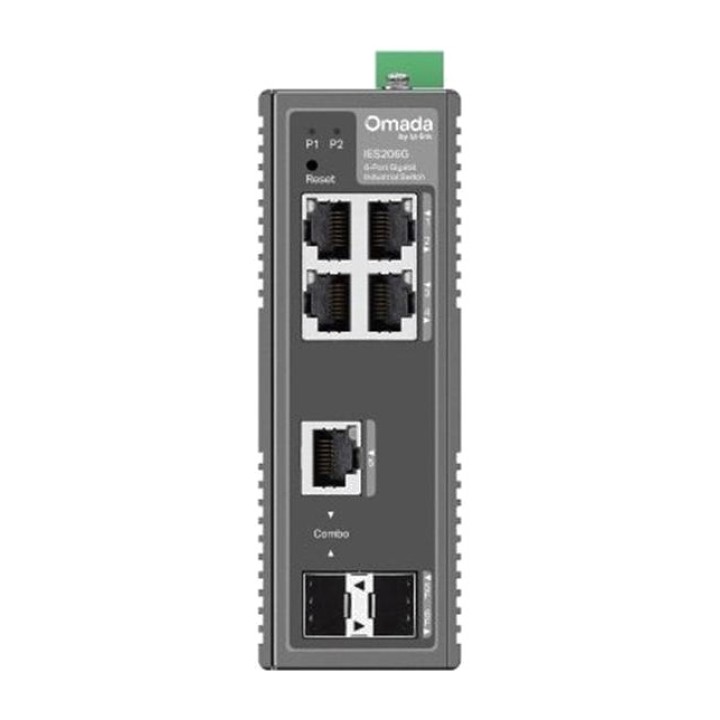

The IES206G features **4 Gigabit RJ-45 ports**, 1 RJ-45/SFP combo port and 1 additional SFP slot, allowing fibre-optic and copper connections to suit network requirements. Thanks to its **switching capacity of 12 Gbps** and forwarding rate of 8,93 Mpps, it ensures smooth traffic without bottlenecks.

4 Gigabit Ethernet RJ-45 ports (10/100/1000)
1 RJ-45/SFP combo port + 1 SFP slot
Switching capacity: 12 Gbps

Advanced management and protocol support
This switch supports web management, cloud administration and advanced features such as QoS, VLAN, IGMP Snooping and Jumbo Frames. This makes it easy to segment traffic, optimise critical applications and precisely control network performance.

Web management and Omada Cloud
Support for VLAN (IEEE 802.1Q), QoS, IGMP, RSTP
Jumbo Frames up to 15000 bytes

Energy efficiency and security

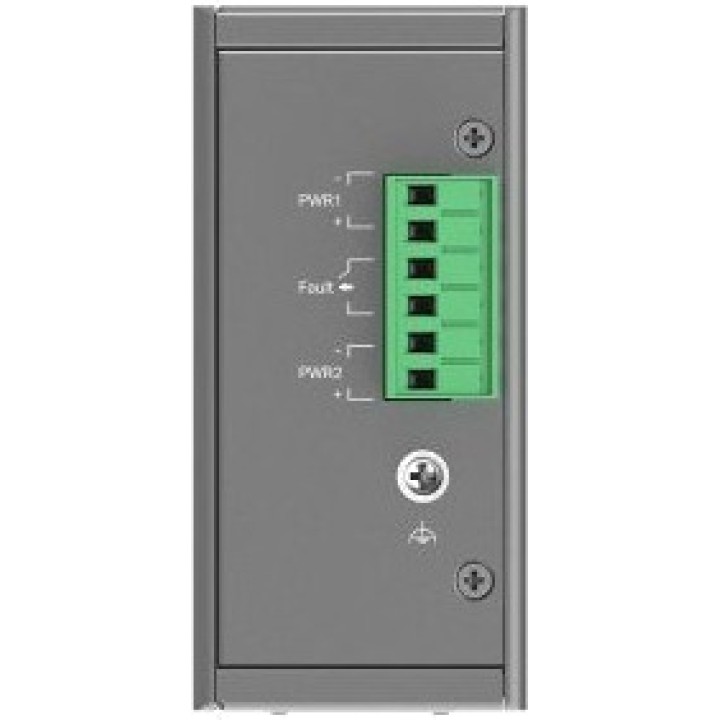

It operates with a wide input voltage range **from 9 to 60 V DC**, ideal for environments where the power supply may vary. Its compatibility with redundant power supplies ensures continuity in the event of failures, improving fault tolerance.

Input voltage : 9 - 60 V DC
Power supply included
Redundant power supply (RPS) support

Other specifications

Switch type: Managed L2
MAC table: 8000 entries
Certifications: FCC, CE, RoHS
Dimensions: 129 x 95 x 45 mm
Jumbo Frame support: Yes, up to 15000 bytes
Protocols: IEEE 802.1D, 802.1Q, 802.1p, 802.1w, 802.3ab, 802.3u , 802.3x
Port mirroring, auto MDI/MDI-X, flow control, auto-negotiation
Storage temperature: -40 °C to 85 °C
Operating humidity: 5% - 95% non-condensing
Volume (m ³): 0.0099
