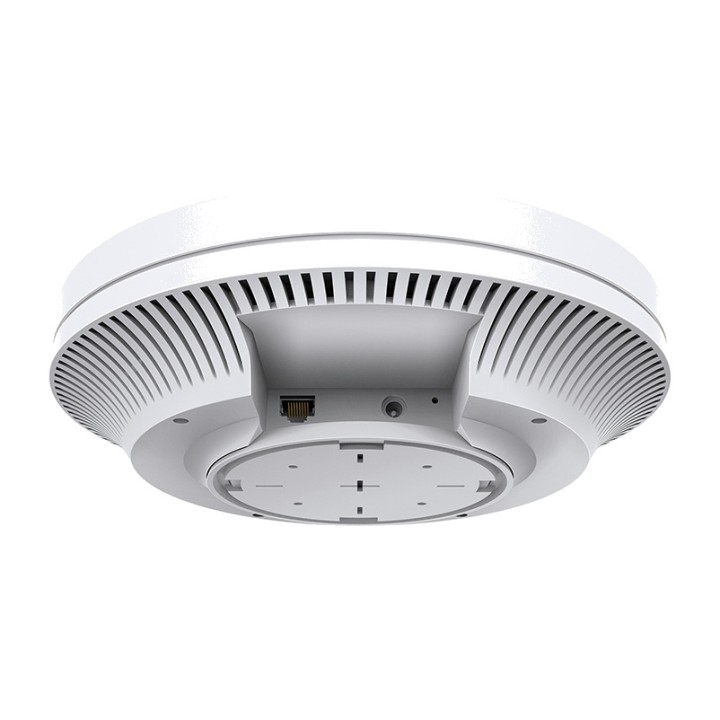

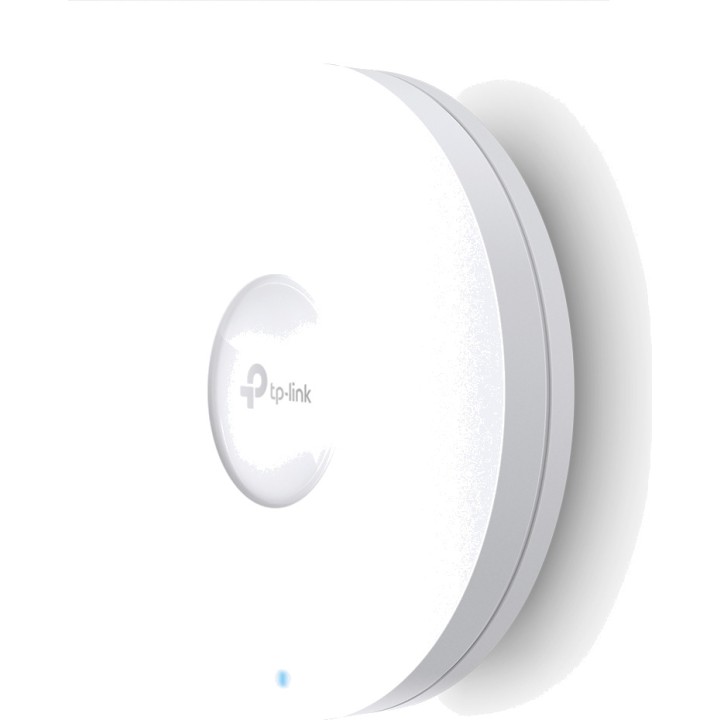

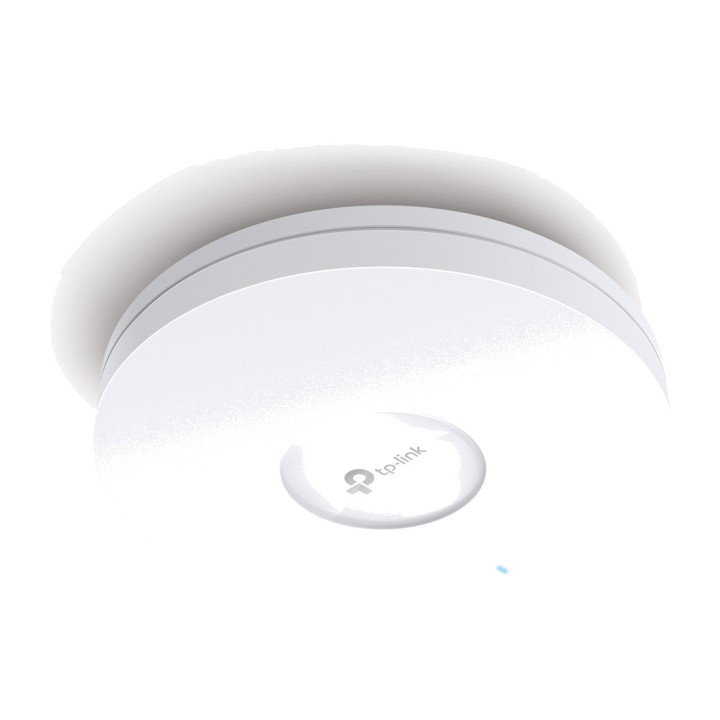

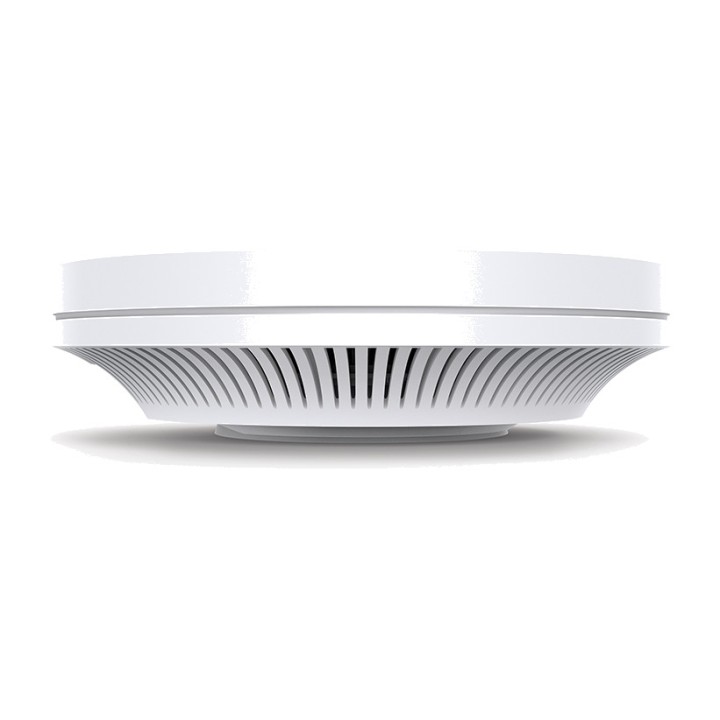

TP-LINK WiFi 6 ceiling access point with 2.5 Gigabit port OMADA EAP660-HD AX3600 MGS0000026139

- SPEED AND PERFORMANCE
Ultra-fast Wi-Fi 6 with a total of up to 3550 Mbps:
- 2402 Mbps in the 5 GHz band.
- 1148 Mbps in the 2.4 GHz band.
Capacity to connect more than 1000 devices in a stable and uninterrupted manner.
2.5 Gbps Ethernet port for faster network performance.

- MANAGEMENT AND CONTROL
Full integration with Omada for advanced functionalities:
- Zero Touch Provisioning (ZTP).
- Centralized management from the cloud.
- Smart monitoring.
Intuitive and efficient control with the Omada controller, accessible locally or via the cloud.
Cloud access available with OC300, OC200, or Omada software controller.

- ROAMING AND CONNECTIVITY
Seamless roaming to automatically switch to the access point with the best coverage.
Omada Mesh for flexible wireless connectivity.
PoE+ (802.3at) compatibility for flexible installation and no need for nearby power outlets.

- GUEST NETWORK AND SECURITY
Secure guest network with separate access for visitors.
Captive portal for user authentication.
Wireless MAC address filtering and access control.
SSID assignment to VLAN for network segmentation.
Compatibility with WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, and WPA3-Personal/Enterprise.

- WIRELESS FEATURES
Wireless client capacity: over 1000 devices.
Wireless standards: IEEE 802.11ax/ac/n/g/b/a.
Compatibility with frequency bands of 2,4 GHz and 5 GHz.
Advanced functions:
- 1024-QAM.
- OFDMA and MU-MIMO for greater efficiency.
- Up to 16 SSID (8 per band).
- Belt drive and load balancing.
- Beamforming
- QoS (WMM) for traffic prioritization.
- Transmission timing equity.
- Wireless reset programming and configurations.
- Detailed wireless statistics based on SSID, AP or client.

- Hardware Features
1 Ethernet port 2.5 Gbps (PoE+ IEEE802.3at compatible).
Power supply via PoE (802.3at) or 12 VCC.
Power consumption:
- EU: 18,5 W.
- USA: 21,5 W.
Internal Omni Antennas:
- 2,4 GHz: 4 x 4 dBi.
- 5 GHz: 4 x 5 dBi.
Ceiling or wall mounting (kits included).
Dimensions: 243 × 243 × 64 mm.

- MANAGEMENT
Omada app for easy management from mobile devices.
Compatible with controllers:
- Based on the Omada cloud.
- Omada OC300 hardware and OC200.
- Omada Software.
Email alerts.
LED ON/OFF Control.
MAC address control management.
Supports SNMP v1, v2c, v. 3.
SSH access and web-based management (HTTP/HTTPS).
L3 management support, multi-site, and management VLAN.
Contactless provisioning with cloud-based Omada controller.

- SAFETY
Captive portal for user authentication.
MAC address filtering and access control.
Wireless customer isolation.
SSID assignment to VLAN for network segmentation.
Detection of unauthorized access points.
Compatibility with 802.1X.
Security protocols: WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.

- TRANSMISSION POWER
CE:
- <,20 dBm (2,4 GHz, EIRP).
- <,23 dBm (5 GHz, EIRP).
FCC:
- <,26 dBm (2,4 GHz).
- <,26 dBm (5 GHz).

- COMPATIBILITY AND REQUIREMENTS
Compatible with Microsoft Windows XP, Vista, Windows 7, 8, 10, 11 and Linux.

- ENVIRONMENTAL FACTORS
Operating temperature : 0–40 ?.
Storage temperature : -40–70 ?.
Operating humidity: 10–90% HR without condensation.
Storage humidity: 5–90% HR without condensation.

- CERTIFICATIONS AND PACKAGE CONTENT
Certifications: CE, FCC, RoHS.
Package contents:
- EAP660 HD.
- Power adapter.
- Roof or wall mounting kits.
- Installation guide.
Volume (m ³): 0.0016
