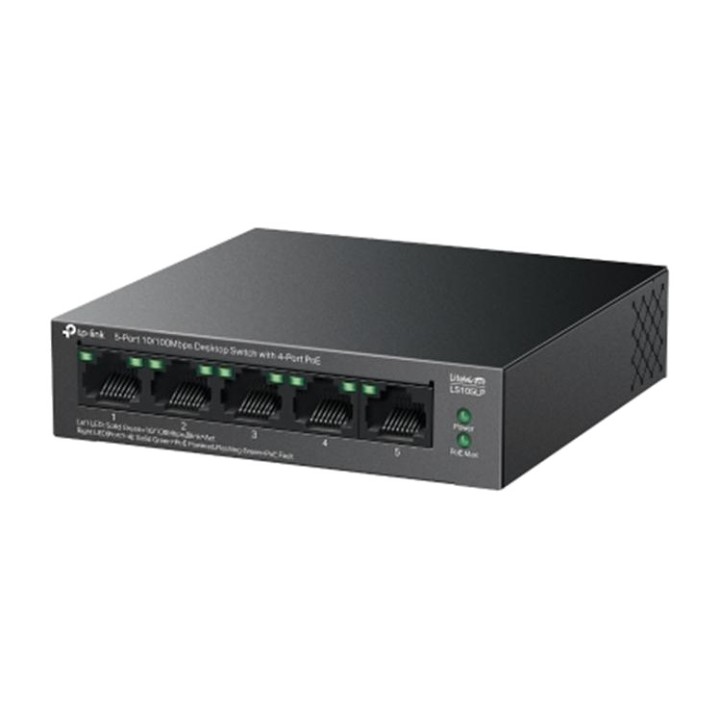

TP-LINK 5-Port Fast Ethernet Unmanaged Switch with 4 PoE LITEWAVE-LS105LP 41W MGS0000023330

LS105LP
5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

41 W PoE budget: Four 10/100 Mbps PoE ports compliant with 802.3af easily connect and power fixed devices such as IP cameras, access points and IP phones through a single cable.
Each PoE port supports a PoE output of up to 15,4 W.*
PoE transmission up to 250 m: with Extended Mode, the PoE transmission distance reaches up to 250 m, perfect for deploying surveillance cameras across large areas.**
PoE Auto Recovery: automatically reboots your PoE-powered devices that have crashed or stopped responding.
Plug and Play: Simply plug it in and play for instant connectivity with no configuration required.
Silent operation: the fanless design reduces power consumption and ensures quiet operation, ideal for noise-sensitive homes or businesses.
Reliable hardware design: the durable metal casing and desktop/wall-mount design are suitable for different environments.
Hardware Features
Interface: 5 10/100 Mbps RJ45 ports (4 10/100 Mbps 802.3af PoE ports)
Auto-Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m)
Number of Fans
Desktop installation
wall mount
Power Supply External power adapter (output : 53,5 V CC/0,81 A)
PoE ports (RJ45) Standard: 802.3 af compatible
PoE ports: ports 1 to 4, up to 15.4 W PoE output per port
Power supply : 41 W

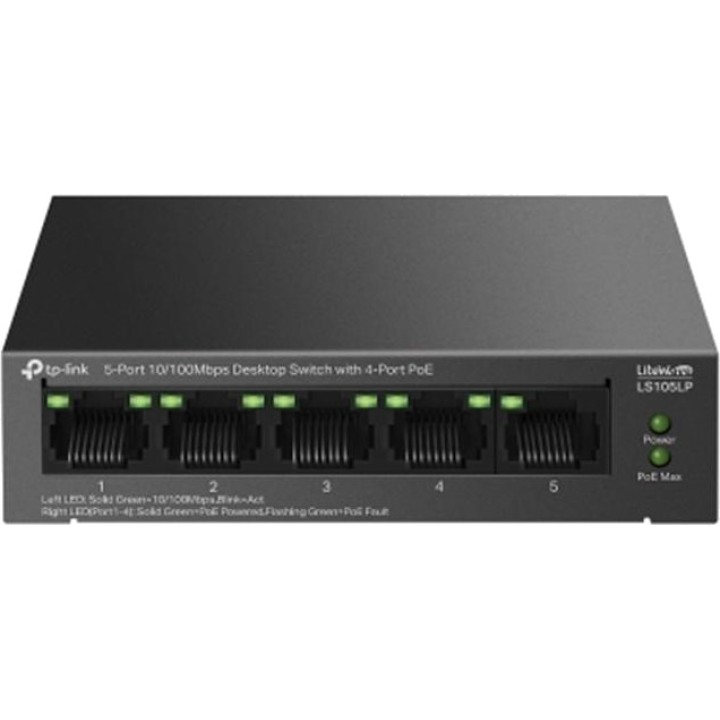

LED indicator: Power
Link/Act
PoE status
PoE MAX
Dimensions (W x D x H) 3.93.91.0 in. (1009825 mm)
Maximum power consumption 2.40 W (220 V/50 Hz with no PD connected)
46.45 W (220 V/50 Hz with 41 W PD connected)
Maximum heat dissipation 8.15 BTU/h (220 V/50 Hz with no PD connected)
157.93 BTU/h (220 V/50 Hz with 41 W PD connected)
performance
Switching capacity 1 Gbps
Packet forwarding rate 0.744 Mpps
Address Table MAC 2K
Jumbo frame 2 KB
software features

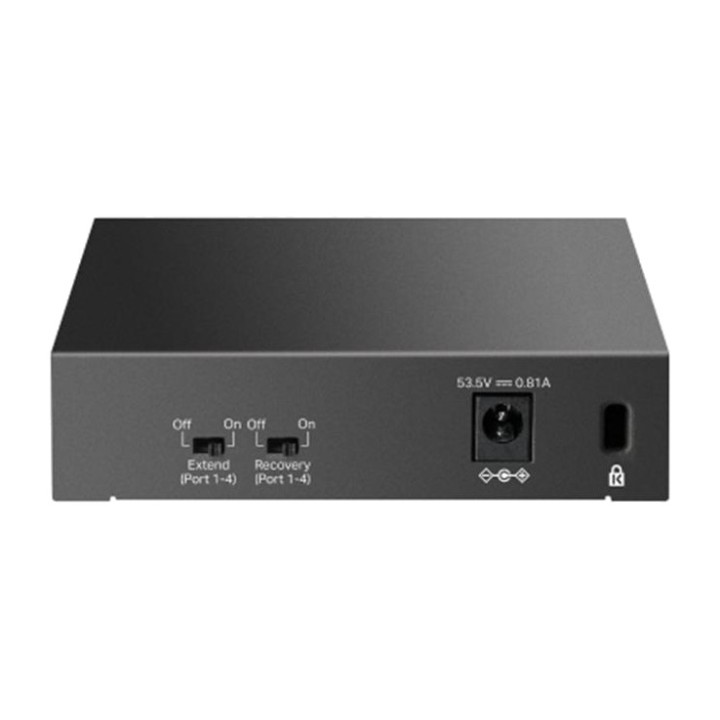

Advanced features: Extended Mode button (ports 1 to 4, PoE power supply up to 250 m and data transmission)
PoE Auto Recovery button (ports 1 to 4)
Compatible with IEEE 802.3af-compliant PDs
Self-learning and automatic aging of MAC addresses
Flow control IEEE 802.3x
Green technology
Transfer method Store and forward
Others
CE, FCC, RoHS certification
PACKAGE CONTENT LS105LP
Power adapter
Installation guide
Environment: operating temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 1090% RH non-condensing
Storage humidity: 5–90% RH, non-condensing
Volume (m ³): 0.0018
