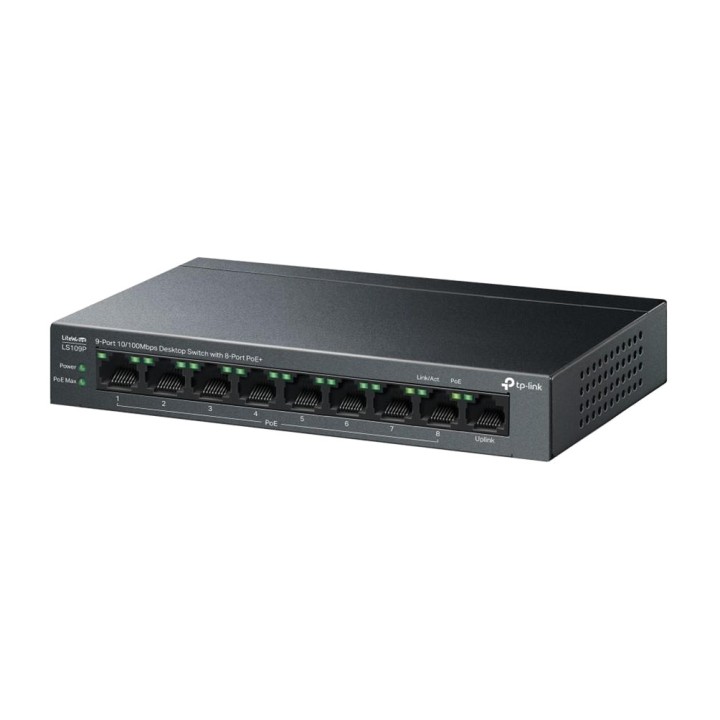

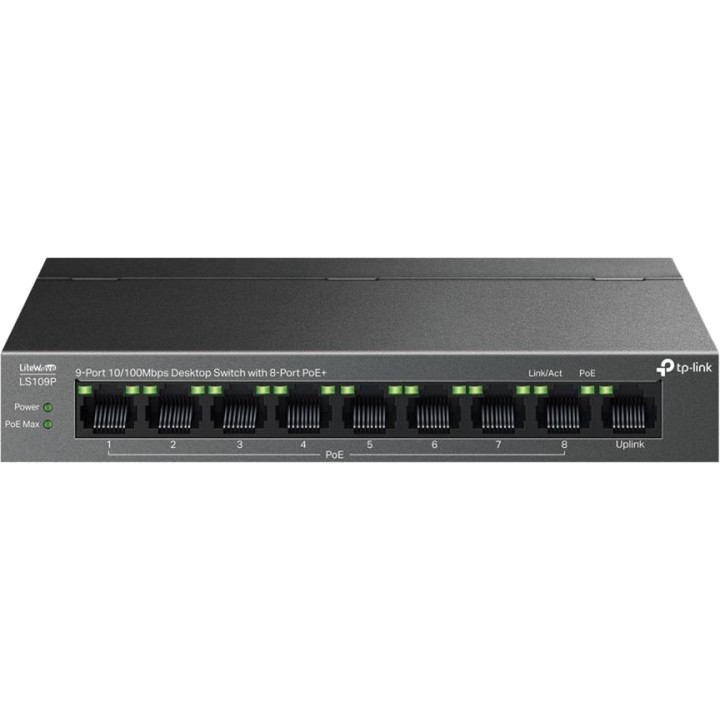

TP-LINK 9-Port Fast Ethernet Unmanaged Switch with 8 PoE+ LITEWAVE-LS109P 63W MGS0000023328

LS109P
9-Port 10/100 Mbps Desktop Switch with 8 PoE+ Ports

63 W PoE power. 8 Gigabit PoE+ ports compatible with 802.3af/at easily power devices such as IP cameras, access points and IP phones through a single cable. Each PoE port supports up to
30 W output.*
Up to 250 m PoE transmission. With extension mode, the PoE transmission distance reaches up to 250 m, ideal for deploying surveillance cameras over large areas.**
PoE Auto Recovery. Automatically restarts PoE-powered devices that are not responding.
Traffic separation. Isolation mode separates client traffic with a single click to prevent snooping and tampering, as well as isolate broadcast storms.
Plug and Play. Instant connectivity with no configuration required.
Silent operation. The fanless design reduces power consumption and ensures silent operation, ideal for homes or businesses.
Reliable hardware. Durable metal housing and a design for desktop or wall mounting, suited to different environments.
Hardware Features
Interface - 9 10/100 Mbps RJ45 ports (8 10/100 Mbps 802.3af/at PoE+ ports)
- Auto-negotiation
- Auto MDI/MDIX
Network media - 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
- 100BASE-TX: Category 5, 5e UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
Quantity of Fans No Fan
Installation - Desktop
- Wall mounting
Power Supply External power adapter (output : 53,5 V CC / 1,31 A)
PoE ports (RJ45) - Standard: 802.3 af/at compatible
- PoE ports: Ports 1-8, up to 30 W PoE output per port
- Power supply : 63 W
LED indicator - Power
- Link/Act
- PoE Status
- PoE MAX
Dimensions 1719827 mm
Maximum Power Consumption - 3,67 W (220 V/50 Hz with no PD connected)
- 73,24 W (220 V/50 Hz with 63 W DP connected)
Maximum heat dissipation - 12,48 BTU/h (220 V/50 Hz with no PD connected)
- 249 BTU/h (220 V/50 Hz with 63 W DP connected)
Performance
Switching Capacity 1.8 Gbps
Packet Forwarding Rate: 1.3392 Mpps
Address Table MAC 2K
Jumbo frame 1.5 KB
SOFTWARE FEATURES

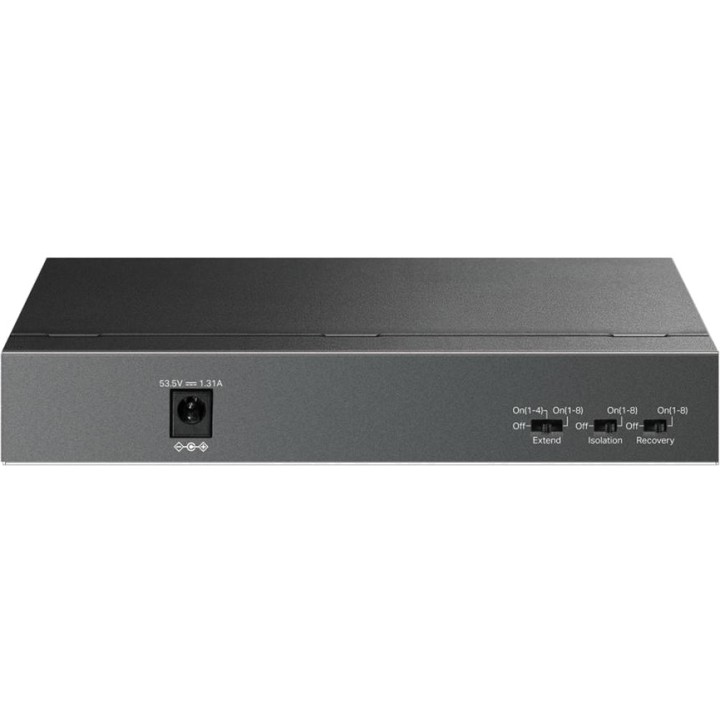

Advanced Features - Extension mode button (ports 1-4/1-8, up to 250 m PoE power and data transmission)
- Isolation mode button (ports 1-8)
- PoE Auto Recovery button (Ports 1-8)
- Compatible with IEEE 802.3af/at-compliant PDs
- Auto-learning and auto-aging of MAC addresses
- Flow control IEEE 802.3x
- Green technology
Store and Forward Transfer Method
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT - LS109P
- Power adapter
- Installation guide
- Rubber feet
Environmental factors - Operating temperature : 0-40 (32-104 )
- Storage temperature : -40-70 (-40-158 )
- Operating humidity: 10–90% RH, non-condensing.
- Storage humidity: 5-90% RH, non-condensing
Volume (m ³): 0.0040
