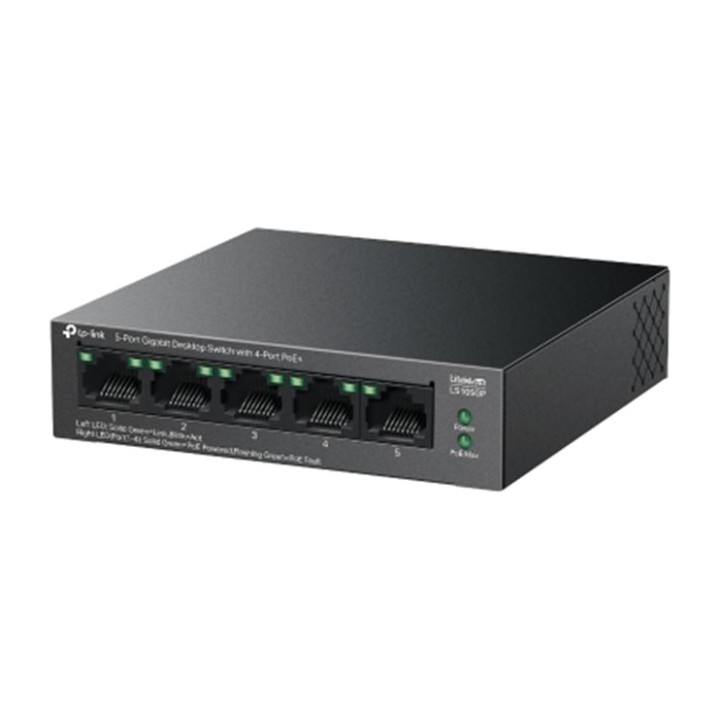

TP-LINK 5-Port Gigabit Unmanaged Switch with 4 PoE+ LITEWAVE-LS105GP 65W MGS0000023327

LS105GP
5-Port Gigabit Desktop Switch with 4 PoE+ Ports

Gigabit ports. 5 Gigabit Ethernet RJ45 ports with auto-negotiation up to 10 Gbps.
65 W PoE power. 4 Gigabit PoE+ ports compatible with 802.3af/at easily power devices such as IP cameras, access points and IP phones through a single cable. Each PoE port supports up to
30 W output.
Up to 250 m PoE transmission. With extension mode, the PoE transmission distance reaches up to 250 m, ideal for deploying surveillance cameras over large areas.**
PoE Auto Recovery. Automatically restarts PoE-powered devices that are not responding.
Plug and Play. Instant connectivity with no configuration required.
Silent operation. The fanless design reduces power consumption and ensures silent operation, ideal for homes or businesses.
Reliable hardware. Durable metal housing and a design for desktop or wall mounting, suited to different environments.
Hardware Features

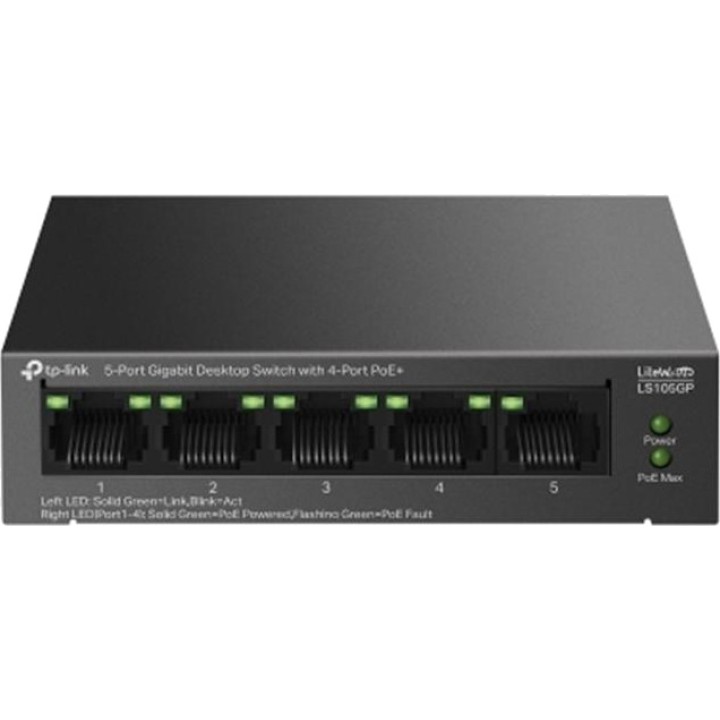

Interface 5 10/100/1000Mbps RJ45 ports (Ports 1-4 support 802.3af/at PoE+)
Auto-negotiation
auto MDI/MDIX
Network media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
Quantity of Fans No Fan
Installation Desktop
wall mount
Power Supply External power adapter (output : 53,5 V CC / 1,31 A)
PoE ports (RJ45) Standard: 802.3 af/at compatible
PoE ports: Ports 1-4, up to 30 W PoE output per port
Power supply : 65 W
Dimensions 99,89825 mm
Maximum power consumption 4 W (220/50 Hz. with no PD connected)
74,46 W (220/50 Hz. with 65 W DP connected)
Maximum heat dissipation 13,6 BTU/h (with no PD connected)
253,16 BTU/h (with 65 W DP connected)
Performance
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
Address Table MAC 2K
Jumbo frame 16 KB
SOFTWARE FEATURES

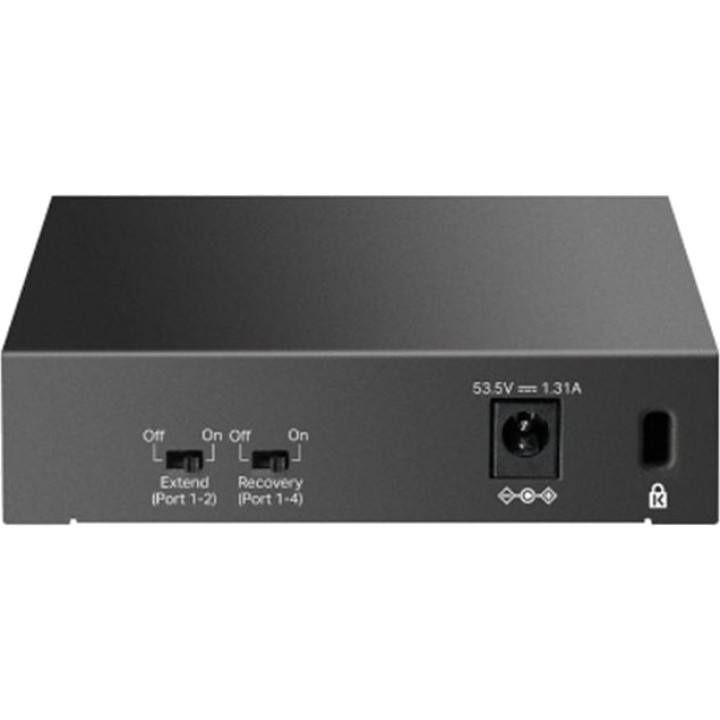

Advanced features Extension mode button (ports 1-2, up to 250 m PoE power and data transmission)
PoE auto-recovery button (ports 1-4)
Compatible with IEEE 802.3af/at-compliant PDs
MAC address self-learning and auto-aging
Flow control IEEE 802.3x
QoS 802.1p/DSCP
IGMP Snooping
Green technology
Transfer method: Store-and-forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT LS105GP
Power adapter
Installation guide
Environmental Factors Operating Temperature : 0-40 (32-104 ),
Storage temperature : -40-70 (-40-158 )
Operating humidity: 10-90% RH, non-condensing.
Storage humidity: 5-90% RH, non-condensing.
Volume (m ³): 0.0031
