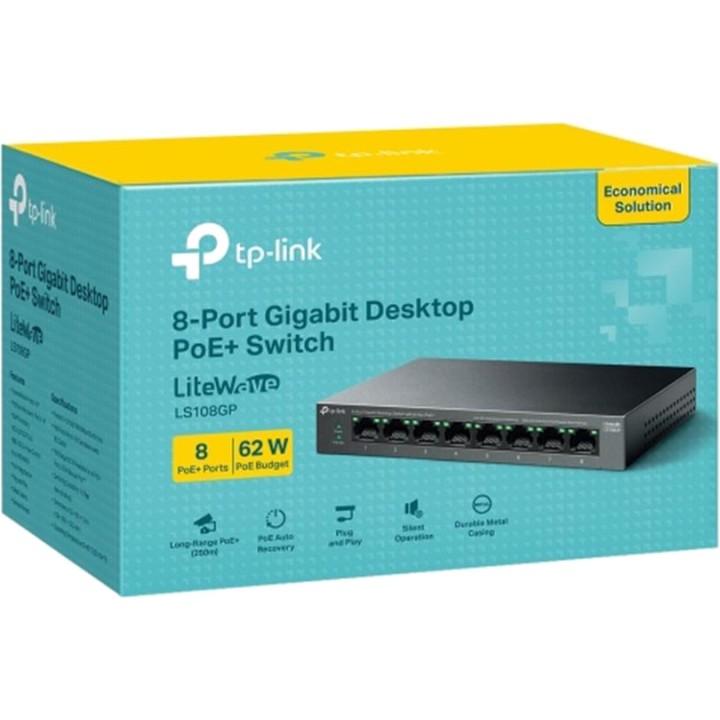

TP-LINK 8-Port Gigabit Unmanaged PoE+ Switch LITEWAVE-LS108GP 62W MGS0000023326

LS108GP

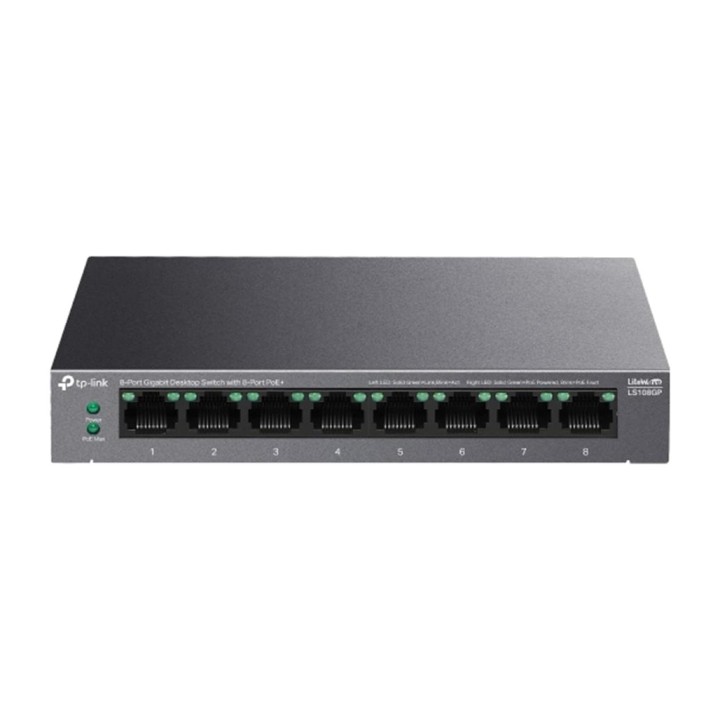

8-Port Gigabit Desktop Switch with 8-Port PoE+

Full Gigabit Ports: Eight gigabit auto-negotiation ports provide switching capacity of up to 16 Gbps.
62 W PoE Budget: Eight 802.3af/at-compliant Gigabit PoE+ ports easily connect and power fixed devices such as IP cameras, access points and IP phones via a single cable. Each
PoE port supports up to 30 W.*
PoE transmission up to 250 m: with Extended Mode, the PoE transmission distance reaches up to 250 m, perfect for deploying surveillance cameras across large areas.**
PoE Auto Recovery: automatically reboots your PoE-powered devices that have crashed or stopped responding.
Plug and Play: Simply plug it in and play for instant connectivity with no configuration required.
Silent operation: the fanless design reduces power consumption and ensures quiet operation, ideal for noise-sensitive homes or businesses.

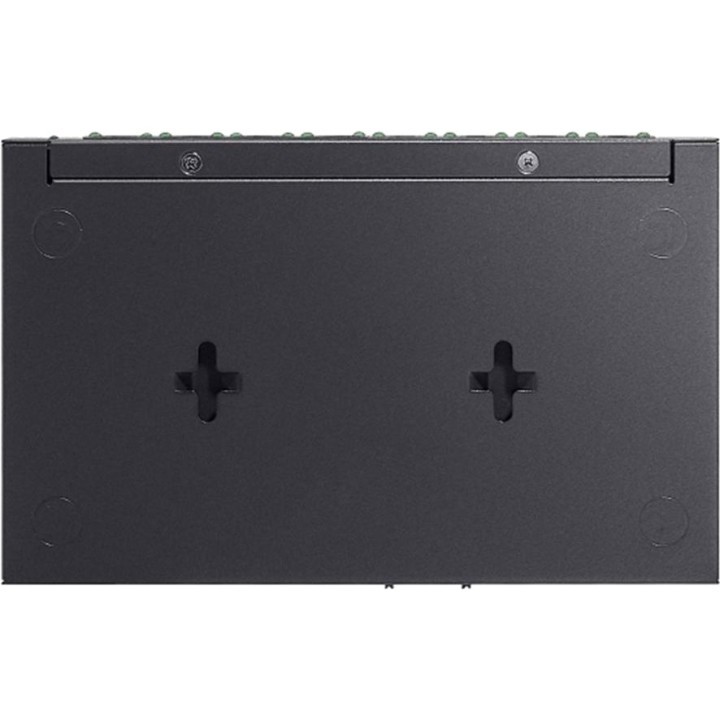

Reliable hardware design: the durable metal casing and desktop/wall-mount design are suitable for different environments.
Hardware Features
Interface 8 10/100/1000 Mbps RJ45 ports (ports 1 to 8 support 802.3af/at PoE+)
Auto-Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m)
Number of Fans
Desktop installation
wall mount
Power Supply External power adapter (output : 53,5 VCC/1,31 A)
PoE ports (RJ45) Standard: 802.3 af/at compatible
PoE ports: ports 1 to 8, up to 30 W PoE output per port
PoE budget E: 62 W
Dimensions (width x depth x height) 6,23,91.0 in (1589925 mm)
Maximum power consumption 5.53 W (220 V/50 Hz, with no PD connected)
71.61 W (220 V/50 Hz with 62 W PD connected)
Maximum heat dissipation 18.81 BTU/h (220 V/50 Hz, with no PD connected)
243.47 BTU/h (220 V/50 Hz with 62 W PD connected)
performance
Switching Capacity 16 Gbps
Packet forwarding rate 11.9 Mpps
Address Table MAC 4K
Jumbo frame 16 KB
software features

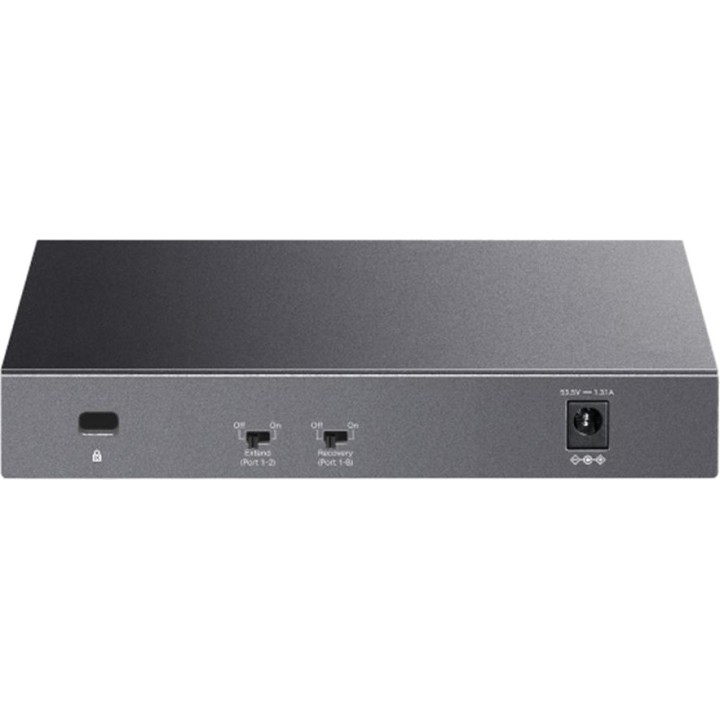

Advanced features Extended Mode button (ports 1 to 2, PoE power supply up to 250 m and data transmission)
PoE Auto Recovery button (ports 1-8)
Self-learning and automatic aging of MAC addresses
Flow control IEEE 802.3x
802.1p/DSCP Quality of Service
IGMP Snooping
Green technology
Transfer method Store and forward
Others
FCC, CE, RoHS certification
PACKAGE CONTENT LS108GP
Power adapter
Installation guide
Environment Operating temperature : 040 (32104 ),
Storage temperature : -4070 (-40158 )
Operating humidity: 1090% RH non-condensing
Storage humidity: 5–90% RH, non-condensing
Volume (m ³): 0.0030
