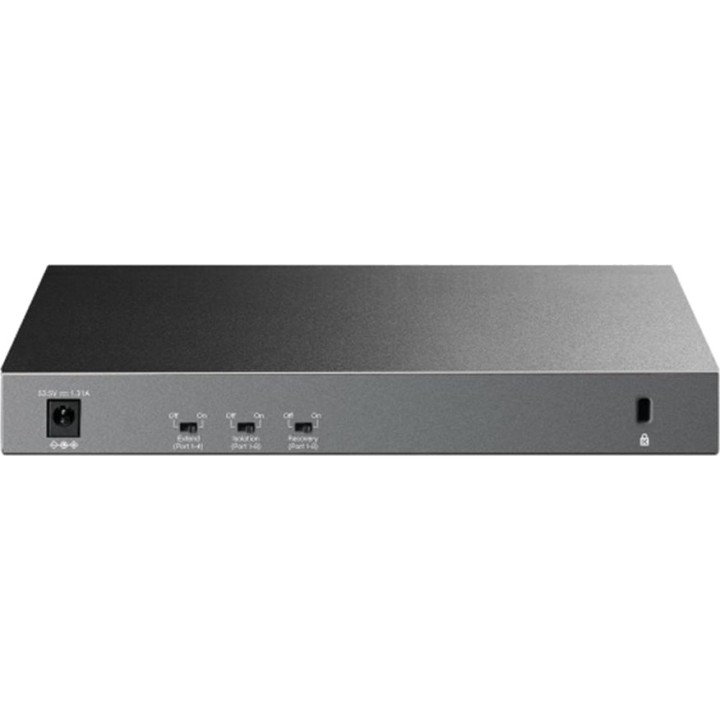

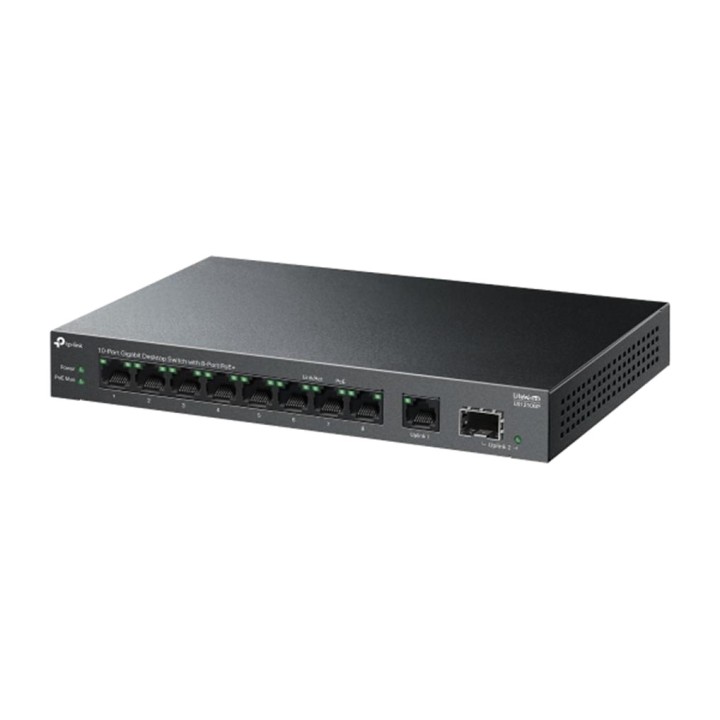

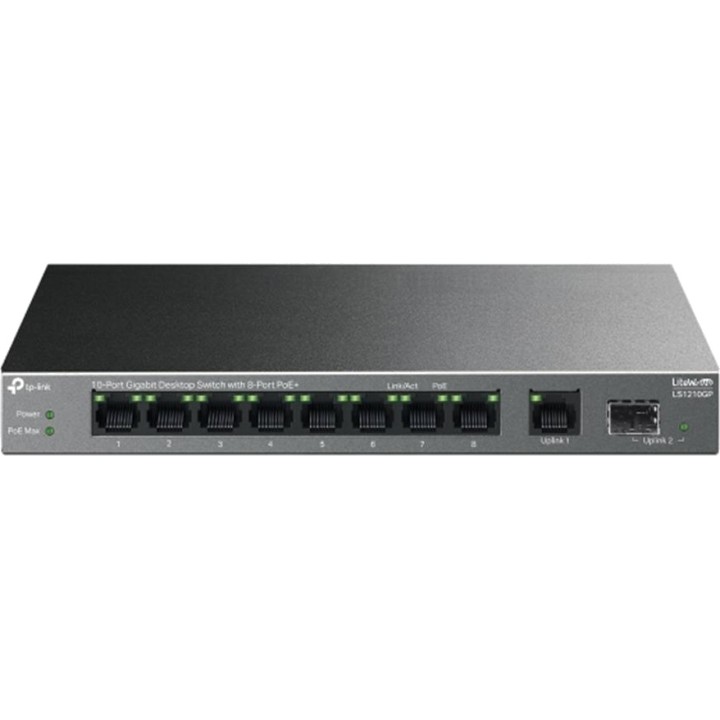

TP-LINK 10-port unmanaged Gigabit switch with 8 PoE+ LITEWAVE-LS1210GP 1X-SFP 61W MGS0000023325

LS1210GP
10-Port Desktop Gigabit Switch with 8-Port PoE+

Gigabit ports. 9 Gigabit RJ45 Ethernet ports with auto-negotiation and 1 Gigabit SFP port provide switching capacity of up to 20 Gbps.
61 W PoE power. 8 Gigabit PoE+ ports compliant with 802.3af/at easily power devices such as IP cameras, access points and IP phones through a single cable. Each PoE port supports up to
30 W output.*
Up to 250 m PoE transmission. With extension mode, the PoE transmission distance reaches up to 250 m, ideal for deploying surveillance cameras over large areas.**
PoE Auto Recovery. Automatically restarts PoE-powered devices that are not responding.
Traffic separation. Isolation mode separates client traffic with a single click to prevent snooping and tampering, as well as isolate broadcast storms.
Plug and Play. Instant connectivity with no configuration required.
Silent operation. The fanless design reduces power consumption and ensures silent operation, ideal for homes or businesses.
Reliable hardware. Durable metal housing and a design for desktop or wall mounting, suited to different environments.
Hardware Features
Interface 9 RJ45 ports, 10/100/1000 Mbps (ports 1–8 support PoE+ output)
1 Gigabit SFP port
Network media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m), EIA/TIA-568 100 STP (maximum 100 m).
Quantity of Fans No Fan
Installation Desktop
wall mount
Physical Security Lock Yes
Power Supply External power adapter (output : 53,5 VCC / 1,31 A)
PoE+ (RJ45) Ports Standard: 802.3at/802.3af compatible
PoE Ports: Ports 1-8, up to 30 W PoE output per port
Total PoE Power: 61W
Dimensions 20912626 mm
Maximum Power Consumption 7.3 W (220/50 Hz. with no PD connected)
76.96 W (220/50 Hz. with a 61 W DP connected)
Maximum heat dissipation 24.82 BTU/h (with no PD connected)
261.66 BTU/h (with a 61 W DP connected)
Performance
Switching Capacity 20 Gbps
Packet forwarding rate: 14.88 Mpps
Address Table MAC 4K
Jumbo frame 16 KB
SOFTWARE FEATURES
Advanced Features Extension mode button (ports 1-4, up to 250 m PoE power and data transmission)
Isolation mode button (ports 1-8)
PoE auto-recovery button (ports 1-8)
Compatible with IEEE 802.3af/at-compliant PDs
Flow control IEEE802.3x
QoS 802.1p/DSCP
IGMP Snooping
Green technology
Transmission method Store-and-forward
Others
CE, FCC, RoHS certifications

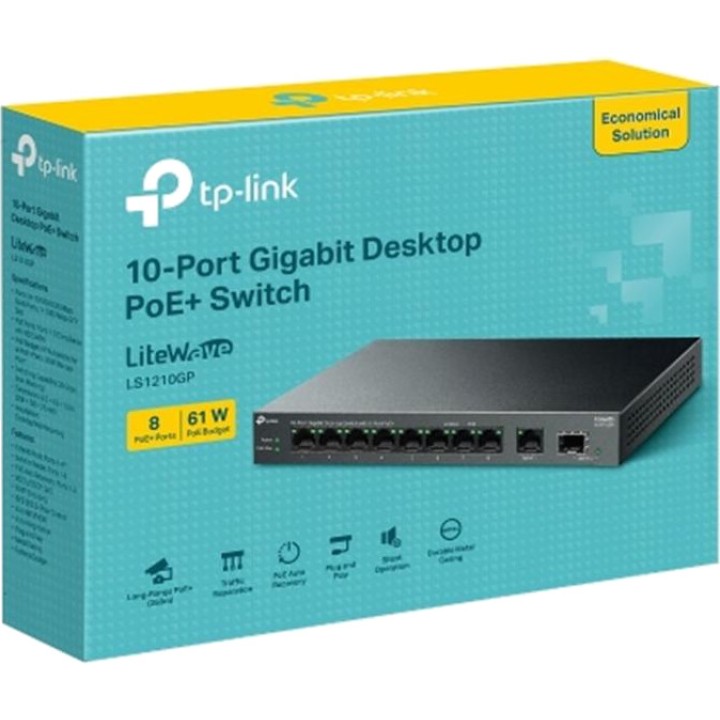

PACKAGE CONTENT LS1210GP
Power adapter
Installation guide
Environmental Factors Operating Temperature : 0C~40C (32F~104F)
Storage temperature : -40C~70C (-40F~158F)
Operating Humidity: 10% ~ 90% without condensation
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0053
