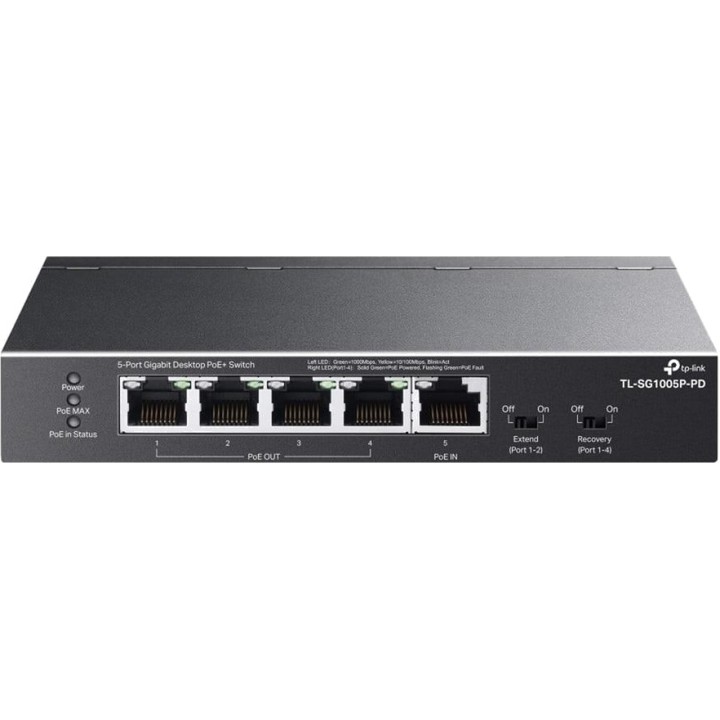

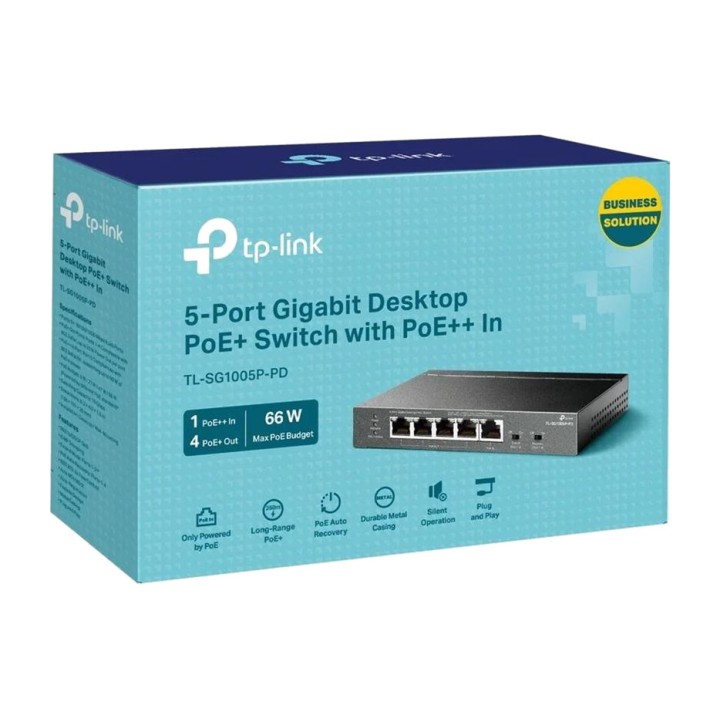

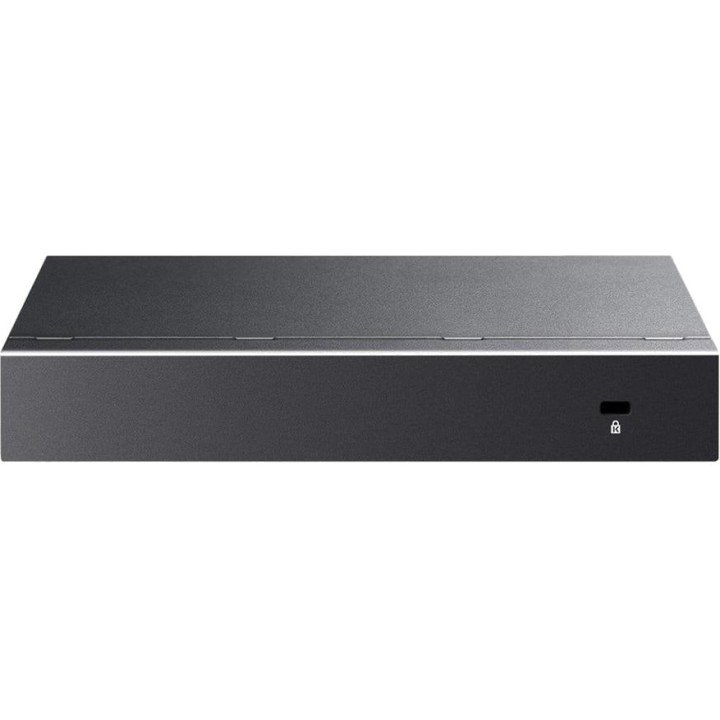

TP-LINK 5-port Gigabit switch with PoE input and output for 4 devices TL-SG1005P-PD MGS0000023324
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosManagement features
Quality of Service (QoS) support
YES
Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports Number of basic RJ-45 Ethernet switching ports
5
Basic RJ-45 Ethernet switching port type Basic RJ-45 Ethernet switching port type
Gigabit Ethernet (10/100/1000)
Connection
Network standards Network standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u , IEEE 802.3x
10G support Support 10G
YES
Copper Ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Supported cable types
Cat3, Cat4, Cat5, Cat5e, Cat6
Supports MAC address auto-aging
YES
Supports MAC address auto-learning
YES
Flow control support
YES
Auto MDI / MDI-X Auto MDI / MDI-X
YES
Auto-negotiation
YES
Data transmission
Switching capacity Switching capacity
10 Gbit/s
Forwarding rate
7,44 Mpps
MAC address table MAC address table
2000 entries
Store and forward
YES
SECURITY
IGMP
YES
Design
Product colour Product colour
BLACK
LED Indicators
YES

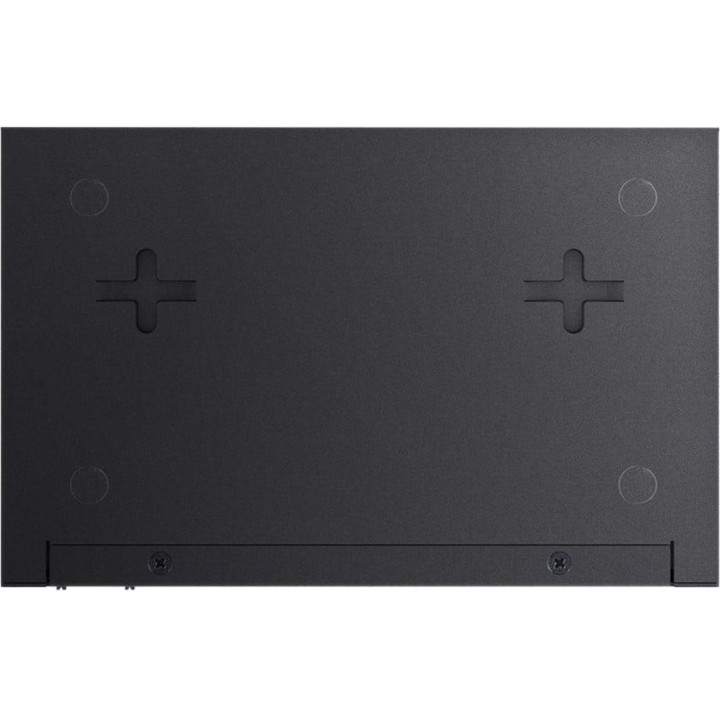

Wall mounting Wall mounting
YES
CERTIFICATION
CE, FCC, RoHs
Performance
Fanless
YES
Power control
Power source Power source
POE
Power supply included Power supply included
NOT
Power consumption (max) Power consumption (max)
68,59 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Power over Ethernet (PoE)
YES
Number of Power over Ethernet (PoE) ports
5
Power over Ethernet (PoE) budget
66 W
Environmental conditions
Operating temperature range Operating temperature range
-30 - 70 C
Storage temperature range Storage temperature range
-40 - 70 C
Relative humidity range for operation
10 - 90%
Relative humidity range during storage
5 - 90%
Heat dissipation Heat dissipation
233,206 BTU/h
WEIGHT AND DIMENSIONS
Width Width
158 mm
Depth Depth
101 mm
Height Height
25 mm
Volume (m ³): 0.0012
- Brand
- TP-LINK
- Reference
- MGS0000023324
- EAN-13
- 4895252501117
- Weight
- 0,5 kg
