TP-LINK 6-Port Gigabit Unmanaged Switch with PoE Power Supply TL-SG1006PP 802.3BT MGS0000023320
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

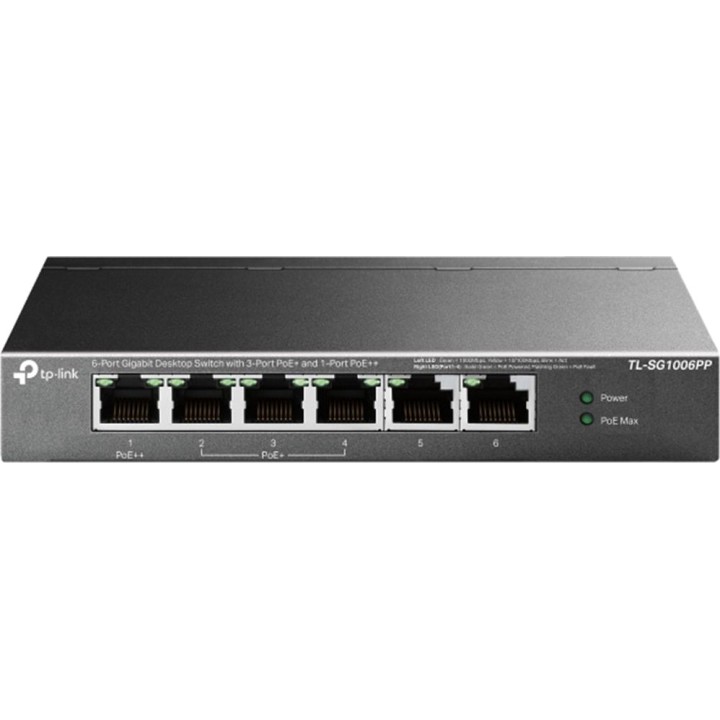

6 × 10/100/1000 Mbps RJ45 ports
With one PoE++ port and three PoE+ ports, it transfers data and power over a single cable
Works with IEEE 802.3af/at/bt-compliant PD devices
802.1p/DSCP QoS enables smooth, latency-sensitive traffic
Supports up to 30 W of PoE power for each PoE+ port and 60W for the PoE++ port
Supports up to 64 W of PoE power across all PoE ports*
Up to 250m data and power transmission range in Extend Mode**
PoE Auto Recovery ensures stable operation of PoE devices by automatically rebooting disconnected or unresponsive PD devices
Plug and play, no configuration or installation required
Hardware Features
Interface: 6 10/100/1000Mbps ports RJ45
Auto-negotiation
auto MDI/MDIX
Network media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m).
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100m).
EIA/TIA-568 100 STP (100 m maximum)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100m).
EIA/TIA-568 100 STP (100 m maximum)
Number of Fans Fanless
External Power Supply External power adapter (output : 53,5 V CC / 1,31 A)
Packet forwarding rate: 8.928 Mpps
PoE ports (RJ45): Port 1 complies with 802.3af/at/bt; ports 2-4 comply with 802.3af/at
Power supply : 64 W
Address Table MAC 4K
Switching capacity: 12 Gbps
Dimensions 6.2x4.0x1.0 in (158x101x25 mm)
Maximum Power Consumption 4.75 W (220/50 Hz. with no PD connected)
71.46 W (220/50 Hz. with 64 W DP connected)
Maximum heat dissipation 16.20 BTU/h (220/50 Hz. with no PD connected)
243.68 BTU/h (220/50 Hz. with 64 W DP connected)
SOFTWARE FEATURES
Advanced Features Compatible with PD devices compliant with IEEE 802.3af/at/bt
Automatic learning and aging of MAC addresses
Flow control IEEE 802.3x
Quality of Service (QoS) 802.1p/DSCP
IGMP Snooping

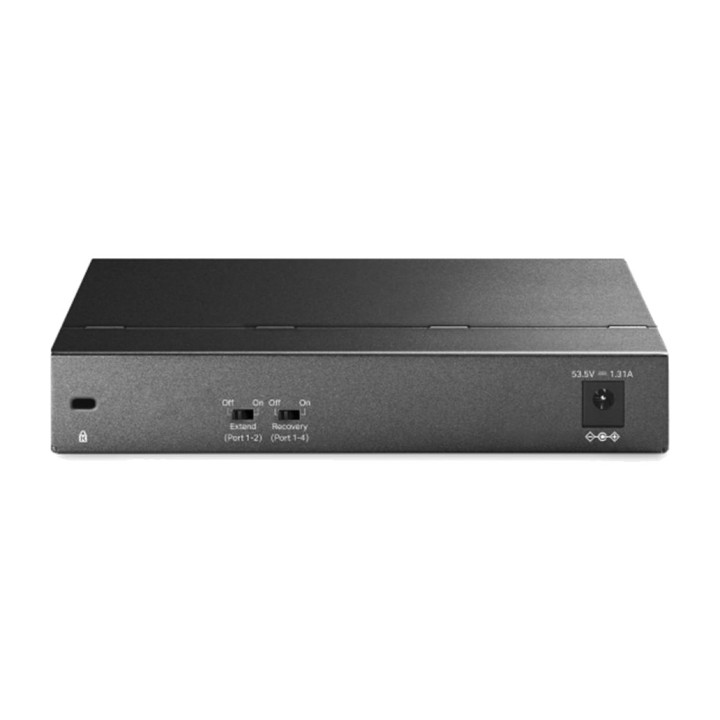

Extension Mode Button (Ports 1-2, PoE power supply and data transmission up to 250 m)
PoE Auto Recovery (Ports 1-4)
Transfer method Store and forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG1006PP
Power adapter
Installation guide
Environmental Factors Operating Temperature : 0-40 (32-104 )
Storage temperature : -40-70 (-40-158 )
Operating humidity: 10-90% RH, non-condensing
Storage humidity: 5-90% RH, non-condensing
Volume (m ³): 0.0031
- Brand
- TP-LINK
- Reference
- MGS0000023320
- EAN-13
- 4895252500325
- Weight
- 1 kg
