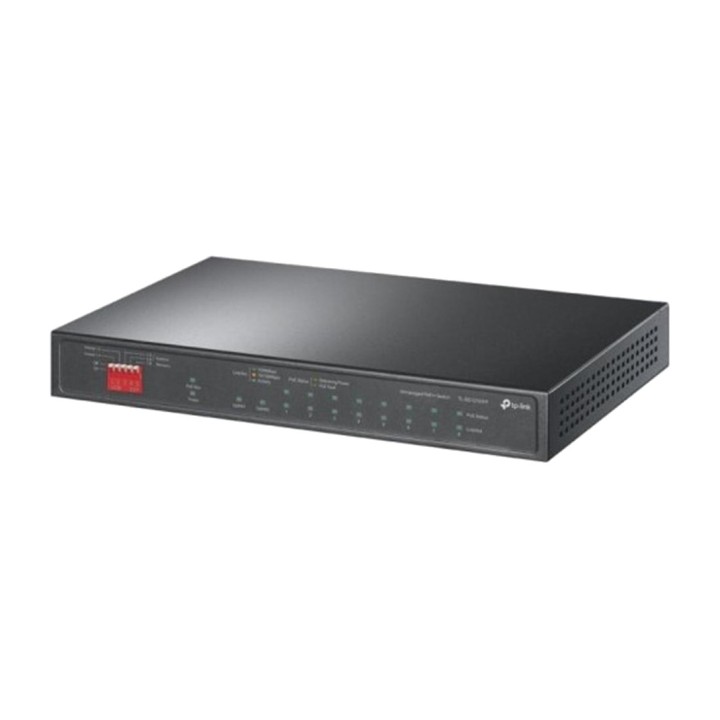

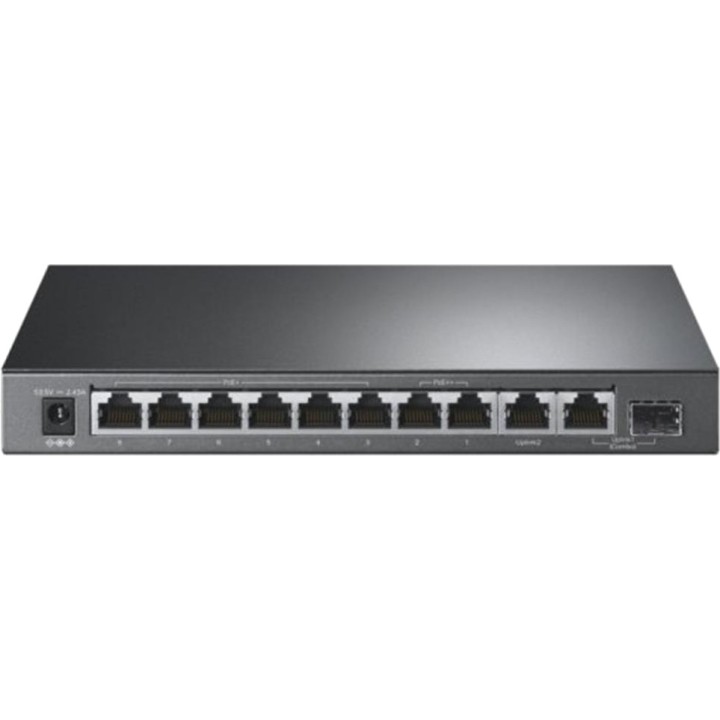

TP-LINK 10-Port Gigabit Unmanaged Switch with PoE++ TL-SG1210PP 1X-SFP MGS0000023319

About the product

Ports 1–8 of the switch support Power over Ethernet (PoE). These PoE ports can automatically detect and supply power to powered devices (PDs) that comply with IEEE 802.3af /
at. When the total power consumption exceeds 63W, intelligent power management will cut power to the lowest-priority port to ensure power supply to the high-priority port and
protect the device from power overload.
Characteristic:

9 10/100/1000 Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, it transfers data and power over a single cable
Works with IEEE 802.3af / at-compatible PDs and extends the office network
802.1p / DSCP QoS enables smooth latency-sensitive traffic
High PoE power availability with up to 30 W for each PoE port and 63 W for all PoE ports
Easy to use, no configuration or installation required

TP-Link Specifications TL-SG1210PP:

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes

Ports and Interfaces
Number of basic RJ-45 Ethernet switching ports : 10
Basic RJ-45 Ethernet switching port types: Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) ports : 10
Combo SFP port count : 1

Connection
Network standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Copper Ethernet cabling technology : 10BASE-T, 100BASE-TX
Supported cable types: Cat3, Cat4, Cat5, Cat5e
Flow control support: Yes
Auto MDI / MDI-X: Yes
Auto-negotiation: Yes
Supports MAC address auto-learning: Yes
Supports MAC address auto-aging: Yes

Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14,88 Mpps
MAC address table: 4000 entries
Store and forward: Yes

SECURITY
IGMP: Yes

Design
Rack mounting: No
Product colour: Black
Housing material: steel
LED indicators: Yes
Certification: FCC, CE, RoHS

Performance
Fanless: Yes

Power control
Power source: DC/PoE
Power supply included: Yes
Number of power supplies : 1
Input voltage AC: 90 - 220 V
AC input frequency: 50 Hz
Input current : 2.43 A
Input voltage : 53.5 V
Power consumption (ma x): 144,1 W

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet Plus (PoE+) port count : 2
Number of 4-pair PoE (Power over Ethernet) or 4PPoE ports (Po E++): 6
Power over Ethernet (PoE) budget : 123 W

Environmental conditions
Operating temperature range : 0 - 40 C
Storage temperature range : -40 - 70 C
Relative humidity range for operation : 10 - 90%
Relative humidity range during storage : 5 - 90%
Heat dissipation: 482,17 BTU/h

WEIGHT AND DIMENSIONS
Width: 209 mm
Depth: 126 mm
HEIGHT: 26MM

Packaging
Cables included: AC power cable
User manual: Yes
Packaging type: Box
Volume (m ³): 0.0053
