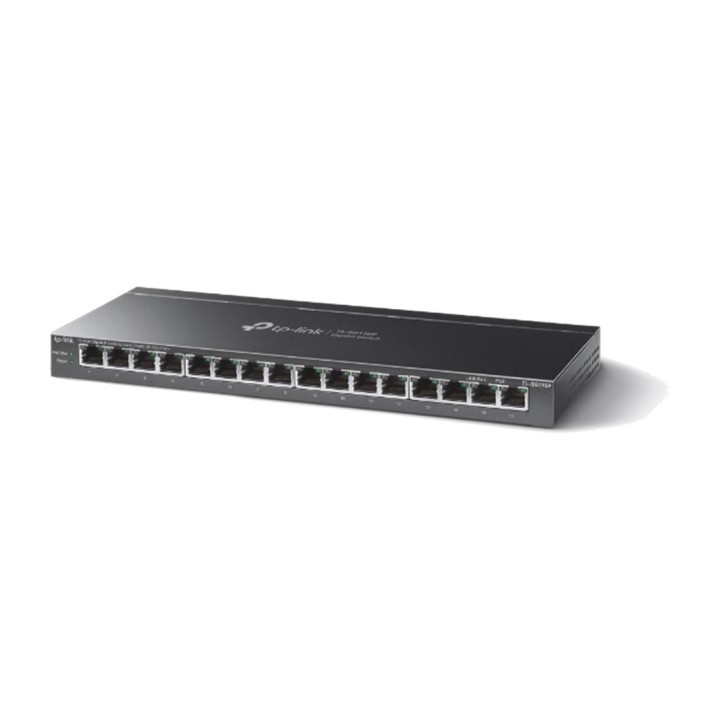

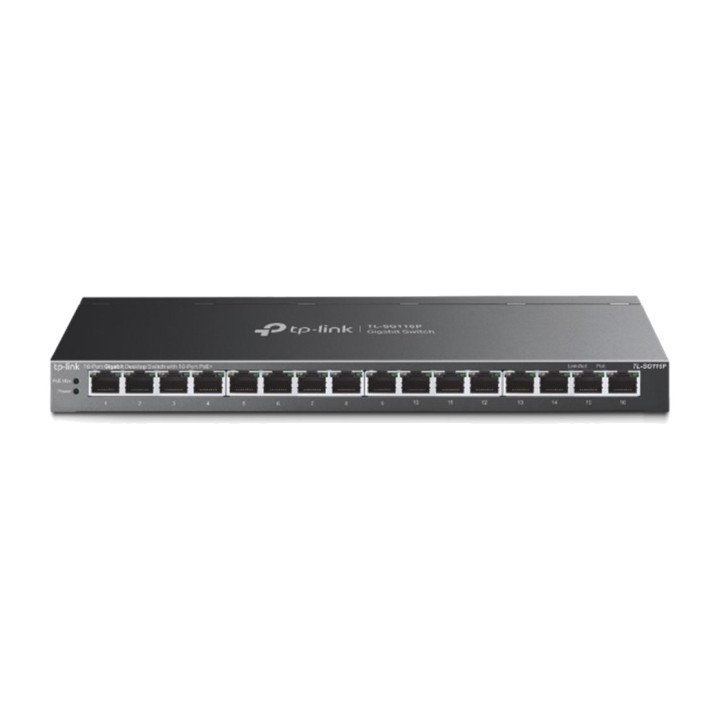

TP-LINK 16-port Gigabit unmanaged PoE+ switch TL-SG116P MGS0000023315

TL-SG116P
16-Port Gigabit Desktop Switch with 16-Port PoE+

16 10/100/1000 Mbps RJ45 ports
With 16 PoE+ ports, it transfers data and power over a single cable
Compliant with IEEE 802.3af/at PoE+, the switch supports PoE power of up to 30 W for each PoE port
Supports up to 120 W of PoE power for all PoE ports*
Data and power transmission range of up to 250 m in extended mode**
Priority mode ensures ports 1 to 4 are given high priority to guarantee the quality of sensitive applications
Isolation mode allows client traffic to be separated with a single click for greater security and performance
Automatically reboots dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play, no configuration required
Hardware Features
Interface - 16 10/100/1000Mbps ports RJ45
- Auto-negotiation
- Auto MDI/MDIX
Network Media - 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100m).
- EIA/TIA-568 100 STP (maximum 100 m)
- 100BASE-TX: Category 5, 5e UTP cable (maximum 100m).
- EIA/TIA-568 100 STP (maximum 100 m)
- 1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100m).
- EIA/TIA-568 100 STP (maximum 100 m)
Quantity of Fans No Fan
External Power Supply External power adapter (output : 53,5 V CC / 2,43 A)
Packet Forwarding Rate 23.8 Mpps
PoE ports (RJ45) - Standard: 802.3 af/at compatible
- PoE ports: Ports 1-16
- Power supply : 120 W
MAC address table 8K, auto-learning, auto-aging of MAC addresses
Switching capacity 32 Gbps
Dimensions 11.3 4.4 1.0 in (286 111.7 25.4 mm)
Maximum power consumption - 11,72 W (220 V / 50 Hz with no PD connected) /
11,56 W (110 V / 60 Hz with no PD connected)
- 142,51 W (220 V / 50 Hz with 120 W* PD connected) /
144,28 W (110 V / 60 Hz with 120 W* PD connected)
Maximum heat dissipation - 39,85 BTU/h (220 V / 50 Hz with no PD connected) /
39,31 BTU/h (110 V / 60 Hz with no PD connected)
- 484,53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /
490,55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
SOFTWARE FEATURES
Advanced features - Compatible with IEEE 802.3af/at-compatible PDs
- Extension mode button (ports 1-4, up to 250 m PoE power and data transmission)
- Priority mode button (ports 1-4)
- Isolation mode button (ports 1-7 / 8-14)
- PoE Auto Recovery (Ports 1-16)
- Auto-learning and auto-aging of MAC addresses
- Flow control IEEE 802.3x
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer method Store and forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT - TL-SG116P
- Power adapter
- Installation guide
Environmental factors - Operating temperature : 0-40 (32-104 ),
- Storage temperature : -40-70 (-40-158 )
- Operating humidity: 10–90% RH, non-condensing.
- Storage humidity: 5–90% RH, non-condensing.
Volume (m ³): 0.0071
