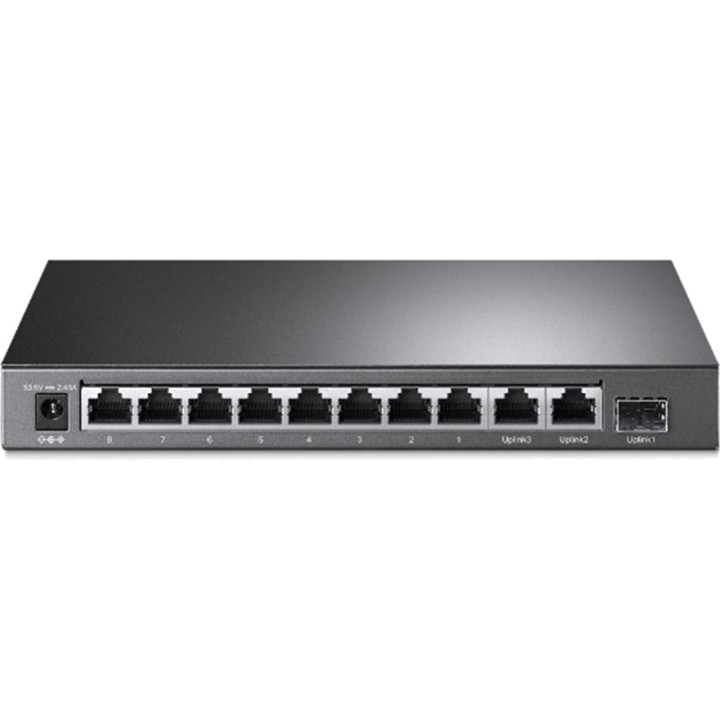

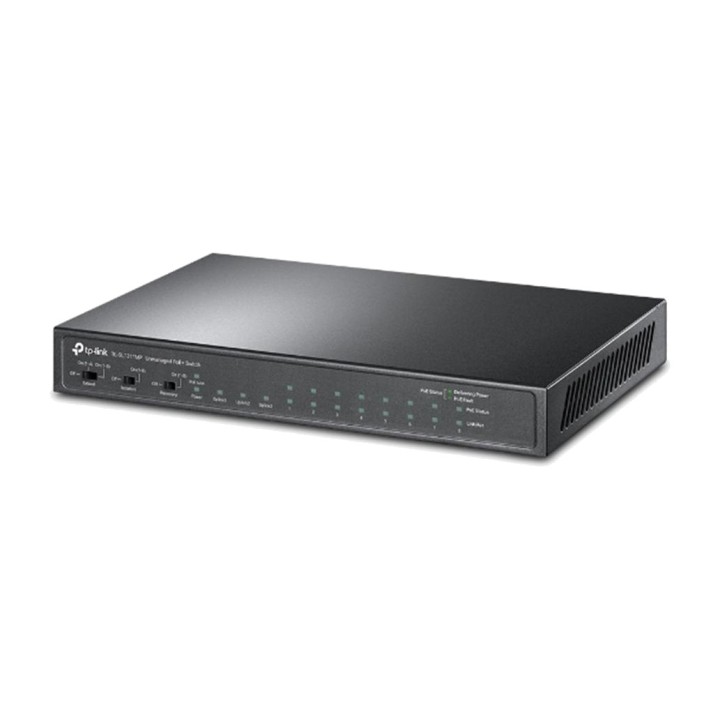

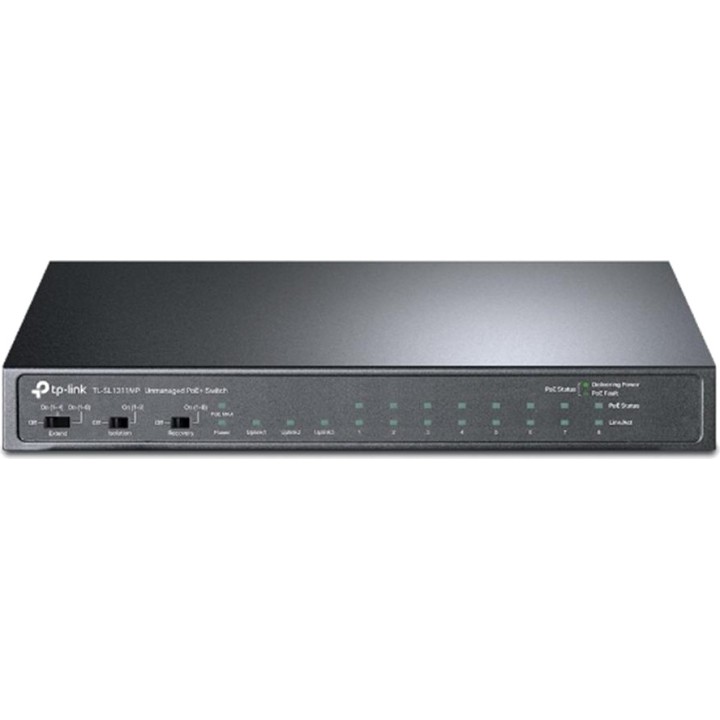

TP-LINK 8-Port Fast Ethernet Unmanaged PoE+ Switch with 3 Gigabit Ports TL-SL1311MP 1X-SFP 124W MGS0000023312

TL-SL1311MP
8-port 10/100Mbps Gigabit desktop switch + 3 PoE+ ports + 8 ports

8 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports, 1 Gigabit SFP port
8 PoE+ ports transfer data and power over individual cables
Works with IEEE 802.3af / at-compatible PDs
Supports PoE power of up to 30 W for each PoE port
Supports PoE power supply of up to 124 W for 8 PoE ports *
Data and power transmission range of up to 250 m in extended mode **
Isolation mode allows client traffic separation with a single click for greater security and performance
PoE Auto Recovery ensures stable operation of PoE devices by automatically restarting failed or unresponsive PD devices
The fanless design reduces power consumption and operates silently at its location
Plug and play with no configuration required
Hardware Features
Interface: 8 10/100 Mbps 802.3af / at PoE+ ports, 2 Gigabit RJ45 ports, 1 Gigabit SFP port
Auto-Negotiation
auto MDI / MDIX
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
Quantity of Fans No Fan
Physical Security Lock Yes
External Power Supply External power adapter (output : 53,5 V CC / 2,43 A)
Packet forwarding rate 5.6544 Mpps
PoE ports (RJ45) Standard: 802.3 af / at compatible
PoE Ports: Ports 18
Power supply : 124 W
Address Table MAC 2K
Jumbo frame 16 KB
Switching capacity 7.6 Gbps
Dimensions 8.2 4.9 1.0 in (209 126 26 mm)
Maximum Power Consumption 5.95 W (220/50 Hz. No PD connected)
140.92 W (220/50 Hz. With 124 W PD connected)
Maximum heat dissipation 20.29 BTU / h (without PD connected)
480.54 BTU / h (220/50 Hz. With 124 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-and-forward
Advanced Features Compatible with IEEE 802.3af / at-compatible PDs
Extended Mode button (ports 1 to 4 and ports 1 to 8, PoE power supply up to 250 m and data transmission)
Isolation Mode Button (ports 1 to 8)
PoE Auto Recovery button (ports 1 to 8)
Self-learning and automatic aging of MAC addresses
IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SL1311MP
Power adapter
Installation guide
Environmental Factors Operating Temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 10 to 90% relative humidity, non-condensing
Storage humidity: 590% relative humidity, non-condensing
Volume (m ³): 0.0053
