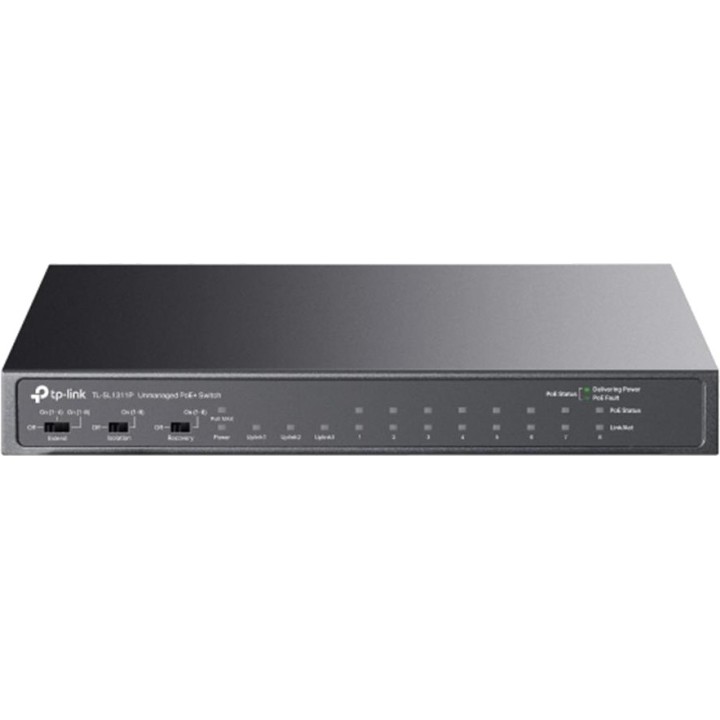

TP-LINK 8-Port Fast Ethernet Unmanaged PoE+ Switch with 3 Gigabit Ports TL-SL1311P 1X-SFP 65W MGS0000023311

TL-SL1311P
8-port 10/100 Mbps + 3-port Gigabit desktop switch with 8 PoE+ ports

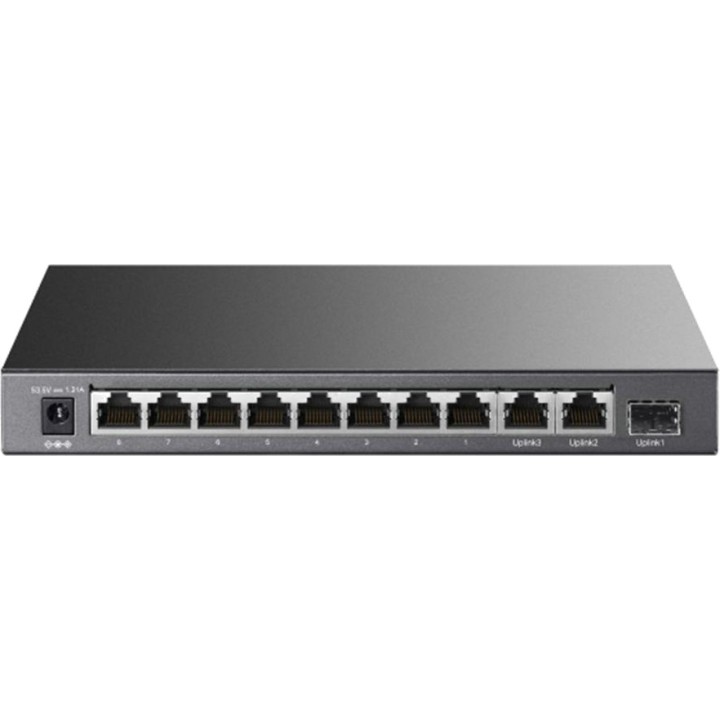

8 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports, 1 Gigabit SFP port
8 PoE+ ports transfer data and power over individual cables
Works with IEEE 802.3af/at-compatible PDs
Supports PoE power of up to 30 W for each PoE port
Supports PoE power of up to 65 W for 8 PoE ports*
Data and power transmission range of up to 250 m in Extended Mode**
Isolation mode allows client traffic to be separated with a single click for greater security and performance
PoE Auto Recovery ensures stable operation of PoE devices by automatically rebooting dropped or unresponsive PD devices
Fanless design reduces power consumption and operates silently in its location
Plug and play with no configuration required
Hardware Features
Interface 8 10/100 Mbps 802.3af/at PoE+ Ports, 2 Gigabit RJ45 Ports, 1 Gigabit SFP Port
AUTO Negotiation
auto MDI/MDIX
Network media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
Number of fans Fanless
Physical Security Lock Yes
External power supply External Power Adapter (Output : 53.5 VDC / 1.31 A)
Packet forwarding rate 5.6544 Mpps
PoE ports (RJ45) Standard: 802.3 af/at compliant
PoE ports: Ports 18
Power supply : 65 W
Address Table MAC 2K
Jumbo frame 16 KB
Switching capacity 7.6 Gbps
Dimensions 8.2 4.9 1.0 in (209 126 26 mm)
Maximum power consumption 5.61 W (220 V/50 Hz, no PD connected)
77.32 W (110 V/50 Hz. with 65 W PD connected)
Maximum heat dissipation 19.13 BTU/h (no PD connected)
263.7 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Store-and-Forward transmission method
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)
Isolation Mode Button (Ports 18)
PoE Auto Recovery Button (Ports 18)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SL1311P
Power Adapter
Installation Guide
Environmental Factors Operating Temperature : 040 (32104 )
Storage Temperature : -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Volume (m ³): 0.0634
