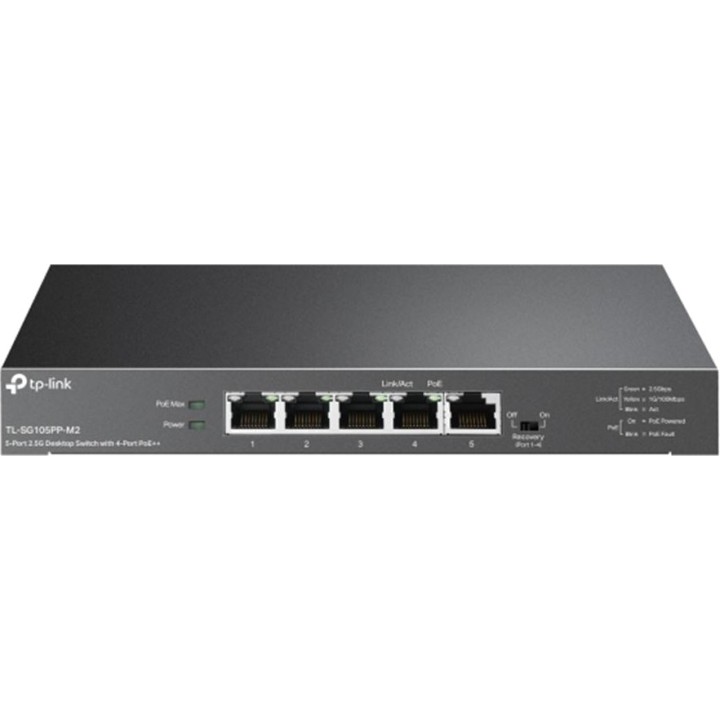

TP-LINK 5-Port 2.5G Unmanaged Switch with 4 PoE++ Ports TL-SG105PP-M2 MGS0000023306
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos5-Port 2.5G Desktop Switch with 4-Port PoE++
5 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
With four PoE++ ports, it transfers data and power over a single cable
Works with IEEE 802.3af/at/bt Type 3-compatible PDs
802.1p/DSCP QoS enables smooth latency-sensitive traffic
Supports PoE power of up to 60 W for each PoE++ port
Supports PoE power of up to 123 W for all PoE ports*
PoE Auto Recovery ensures stable operation of PoE devices by automatically rebooting failed or unresponsive PD devices
Plug and play, no configuration or installation required
Hardware Features
Interface: 5 RJ45 ports, 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps
Auto-Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (100 m maximum)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (100 m maximum)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (100 m maximum)
Number of Fans

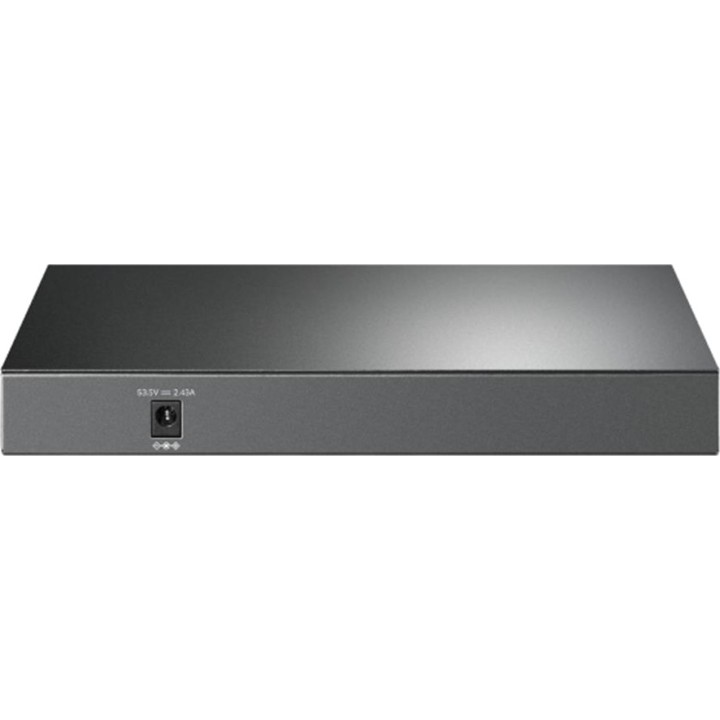

External Power Supply: External Power Adapter (Output : 53,5 VCC/2,43 A)
Packet forwarding rate: 18.6 Mpps
PoE ports (RJ45) Standard: 802.3 af/at/bt Type 3 compatible
PoE++ ports: ports 1 to 4
Power supply : 123 W
MAC address table 4K
Switching capacity: 25 Gbps
Dimensions (width x depth x height) 8,24,91,0 in. (20912626 mm)
Maximum power consumption 7.57 W (220/50 Hz. with no PD connected)
143.37 W (220/50 Hz. with 123 W PD connected)
Maximum heat dissipation 25.81 BTU/h (220 V/50 Hz with no PD connected)
488.89 BTU/h (220 V/50 Hz with 123 W PD connected)
software features
Advanced features Compatible with PD devices compliant with IEEE 802.3af/at/bt Type 3
Self-learning and automatic aging of MAC addresses
Flow control IEEE 802.3x
802.1p/DSCP Quality of Service
IGMP Snooping
PoE Auto Recovery (ports 1 to 4)
Transfer method Store and forward
Others
FCC, CE, RoHS certification
PACKAGE CONTENT TL-SG105PP-M2
Power adapter
Installation guide
Rubber feet
Environment Operating temperature : 040 (32104 ),
Storage temperature : -4070 (-40158 )
Operating humidity: 10–90% RH, non-condensing
Storage humidity: 5–90% RH, non-condensing
Volume (m ³): 0.0053
- Brand
- TP-LINK
- Reference
- MGS0000023306
- EAN-13
- 4895252501131
- Weight
- 2 kg
