TP-LINK 5-Port Gigabit Managed Switch with 4 PoE+ TL-SG105MPE EASY-SMART 120W MGS0000023302

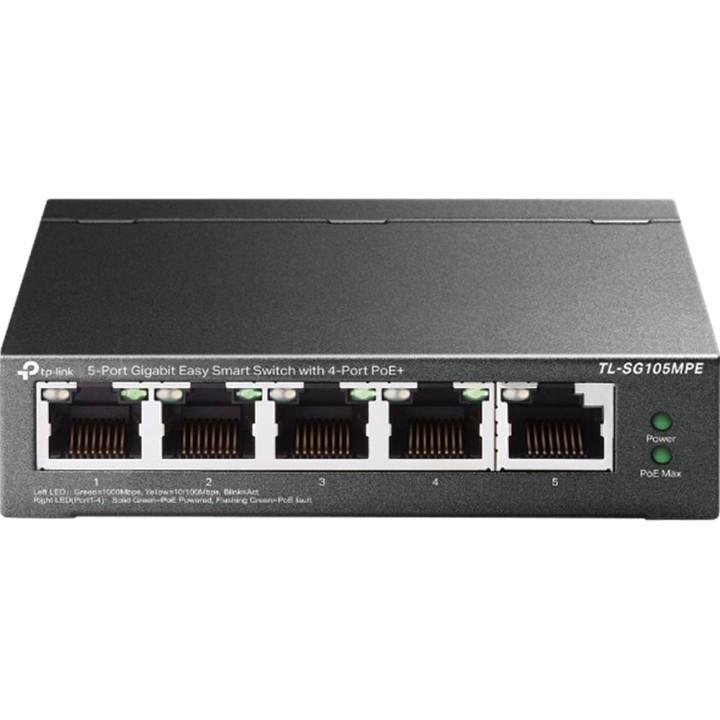

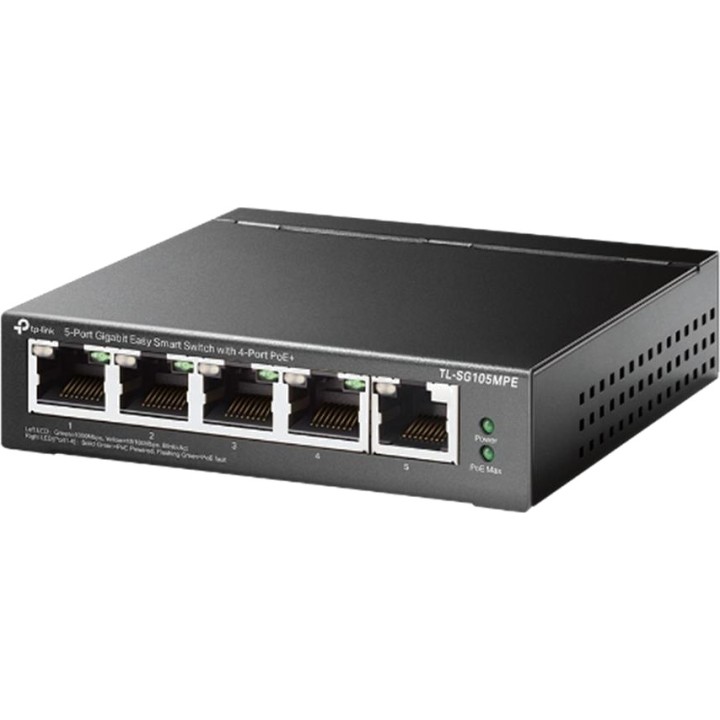

TL-SG105MPE
5-Port Easy Smart Gigabit Switch
with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports
Equipped with four 802.3af/at PoE+ ports providing up to 30 W per port, data and power can be transferred over a single cable
Supports up to 120 W of PoE power for all PoE ports*
Provides network monitoring, traffic prioritization, VLAN functions and automatic PoE recovery
Simple network configuration plus plug-and-play connectivity
The web-based user interface and Easy Smart Configuration utility simplify setup
The fanless design reduces power consumption and eliminates operating noise
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface: Five 10/100/1000Mbps RJ45 ports
AUTO Negotiation/AUTO MDI/AUTO MDIX
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (100 m maximum)
100BASE-TX: Category 5, 5e UTP cable (maximum 100m)
EIA/TIA-568 100 STP (100 m maximum)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (100 m maximum)
Quantity of Fans No Fan
Power Supply: External power adapter (Output : 53,5 VCC / 2,43 A)
PoE ports (RJ45) Standard: 802.3 af/at compatible
PoE ports: Port 1-Port 4
Po power budget E: 120 W
Dimensions 3.9 3.9 1.0 in (99.8 98 25 mm)
Maximum Power Consumption 4.34 W (220 V/50 Hz with no PD connected)
137.01 W (110 V/50 Hz with a 120 W PD connected)
Maximum heat dissipation 14.8 BTU/h (with no PD connected)
467.17 BTU/h (with a 120 W PD connected)
Performance
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
Address Table MAC 2 K
Packet Buffer Memory 1 Mb
Jumbo frame 16 KB
SOFTWARE FEATURES
Quality of Service: Supports port-based/802.1p/DSCP prioritization
Supports 4 priority queues
Rate limit
Storm Control
L2 Features Snooping IGMP V1/V2/V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop prevention
PoE Auto Recovery
Extended Mode
VLAN Supports up to 32 VLANs simultaneously (of 4K VLAN IDs)
MTU/port/VLAN tag
Web-based GUI management
Easy smart configuration utility
Transmission Method Store-and-forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG105MPE
Power adapter
Installation guide
Rubber feet
Microsoft Windows system requirements to run the utility
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~ 104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating humidity: 10%~90% RH, non-condensing
Storage humidity: 5%~95% RH, non-condensing
Volume (m ³): 0.0106
