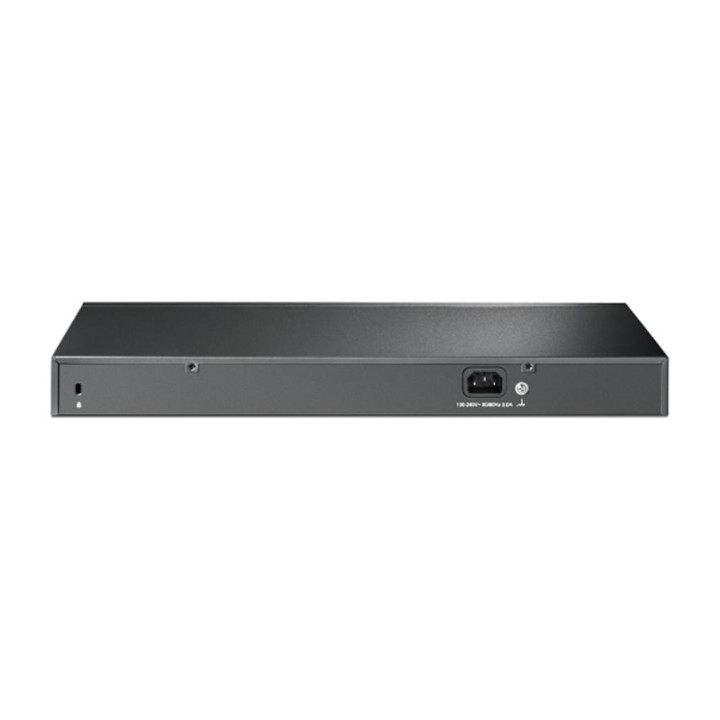

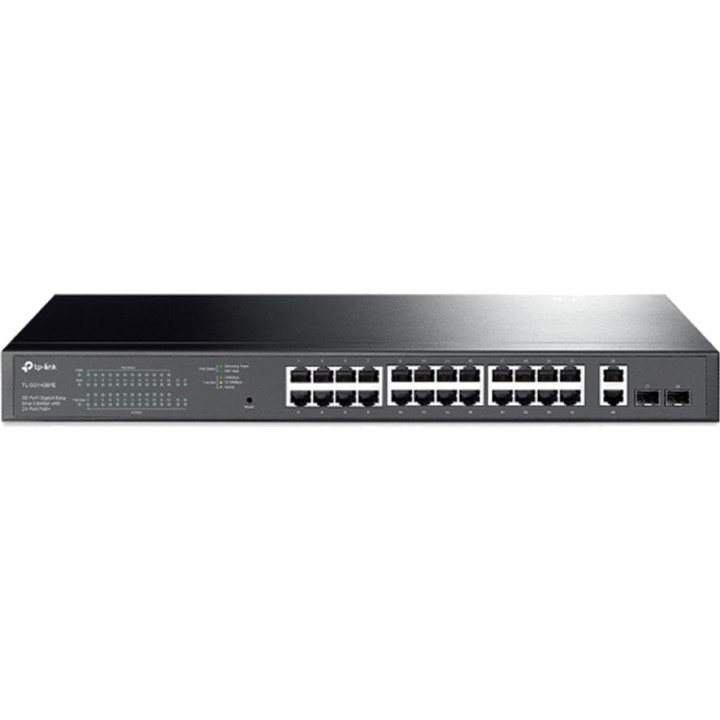

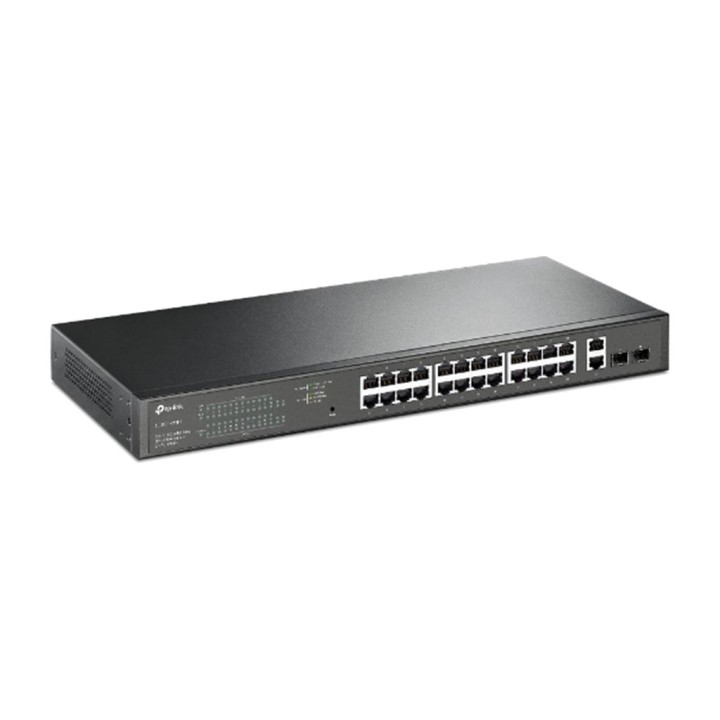

TP-LINK 28-Port Gigabit Managed Switch with 24 PoE+ TL-SG1428PE EASY-SMART 250W MGS0000023300

28-Port Easy Smart Gigabit Switch with 24-Port PoE+

24-Port 10/100/1000 Mbps RJ45 PoE+ Switch with 2 SFP Slots
The PoE power budget is up to 250 W*, making it ideal for small and medium-sized business surveillance systems
Priority Mode helps ensure the quality of sensitive applications such as video monitoring
PoE Auto Recovery enables system self-repair to ensure the stable operation of connected PoE devices
QoS provides a smooth Internet browsing experience, and IGMP Snooping can optimize traffic for IPTV
Intelligent power management can protect the switch from overload
Hardware Features
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 26 10/100/1000Mbps RJ45 ports
2 Gigabit SFP ports
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Number of Fans 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ (RJ45) Ports Standard: 802.3at/802.3af compatible
PoE+ Ports: 24 Ports
Power supply : 250 W
Dimensions 17.3 8.7 1.73 in (440 220 44 mm)
Mounting Rack-mountable
Maximum Power Consumption 27 W (220/50 Hz. No PD connected)
304,7 W (220/50 Hz. With 250 W PD connected)
Maximum heat dissipation 92,07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)
Performance
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mbps
Address Table MAC 8K
Packet Buffer Memory 4.1 Mbit
Jumbo frame 9 KB
SOFTWARE FEATURES
Quality of Service Port-based 802.1p / DSCP priority support
Supports 4 priority queues
Rate limit
Storm Control
L2 Features Snooping IGMP V1 / V2 / V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop prevention
PoE Auto Recovery
VLAN Supports up to 32 VLANs simultaneously (of 4K VLAN IDs)
MTU/port/VLAN tag
Web-based GUI management
Easy smart configuration utility
Transmission Method Store-and-forward
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT TL-SG1428PE
power cord
Installation guide
Rack mounting kit
Rubber feet
Environmental Factors Operating Temperature : 0 C ~ 50 C (32 F ~ 122 F)
Storage temperature : -40 C ~ 70 C (-40 F ~ 158 F)
Operating humidity: 10 % ~ 90 % non-condensing
Storage humidity: 5% ~ 90% non-condensing
Volume (m ³): 0.0180
