Archer AXE75
Archer AXE75 AX5400 Gigabit Wi-Fi 6E AI Tri-Band Router

AXE5400 Tri-Band AXE5400 Tri-Band Wi-Fi offers Wi-Fi speeds of up to 5400 Mbps.
Cutting-Edge Processing Equipped with a 1.7 GHz Quad-Core CPU.
SuperSpeed USB 3.0 Transfer speeds up to 10 times faster than USB 2.0.
Wi-Fi 6E Unleashed The new 6 GHz band offers more bandwidth, faster speeds and near-zero latency.
HomeShield Customize your home network with enhanced security and control.
OneMesh Create a Mesh network by connecting to a TP-Link OneMesh extender for seamless coverage throughout your home.
Connect More Devices OFDMA technology increases capacity up to 4 times to enable simultaneous transmission to more devices.
Ultra-Low Latency Enables more responsive gaming and video conferencing.

Wireless
Standards IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi speeds AXE5400
6 GHz: 2402 Mbps (802.11ax)
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi range
2–3-bedroom homes6 high-performance fixed antennas
Multiple antennas form a signal-boosting array to cover more directions and larger areas

Beamforming
Focuses wireless signal strength toward clients to expand WiFi range

High-power FEM
Enhances transmission power to strengthen signal coverage
Very High Wi-Fi CapacityTri-band
Assign devices to different bands for optimal performance

OFDMA
Communicates simultaneously with multiple Wi-Fi 6 clients

Airtime fairness
Improves network efficiency by limiting excessive occupancy

SFD
Access an additional band to reduce congestion

6 streams
Connect your devices to more bandwidth
Operating Modes Router Mode
Access Point Mode
SECURITY
SPI Firewall Network Security
Access control
IP & MAC Binding
Application Layer Gateway

Security HomeShieldReal-time IoT protection
Malicious site blocker
Intrusion Prevention System
DDoS Attack Prevention
Home network scanner
Guest Network 1 6 GHz guest network,
1 5 GHz guest network,
1 2.4 GHz guest network
VPN Server OpenVPN Server
PPTP VPN Server
Server VPN L2TP
VPN Client OpenVPN Client
PPTP VPN Client
Client VPN L2TP
WiFi Encryption WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)
Hardware
1.7 GHz quad-core CPU processor

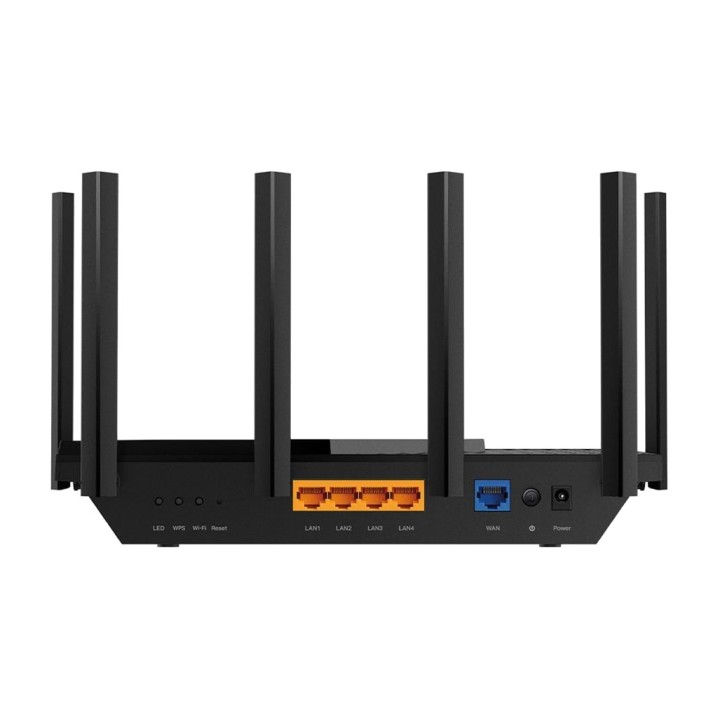

Ethernet ports 1 Gigabit WAN port
4x Gigabit LAN ports
USB support, 1 port USB 3.0

Supported partition formats:
NTFS, and xFAT, HFS+, FAT32

Supported features:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi on/off button
on/off button
LED on/off button
WPS button
Reset button
ENERGY 12 V 2.5 A
SOFTWARE
IPv4 protocols
IPv6
HomeShield Service Kits
OneMesh Compatible with OneMesh
Without replacing your existing devices or buying a completely new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental controls HomeShield parental controls Custom profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
pause internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Device QoS
Cloud storage service Automatic firmware update
TP-Link ID
DDNS
NAT forwarding Port forwarding
Port Triggering
DMZ
UPnP
Virtual server
IPTV Proxy IGMP
IGMP Snooping
Jumper
VLAN Tagging
DHCP Address Reservation
DHCP Client List
Server
TP-Link DDNS
NO-IP
DynDNS
Management Tether app
Web page
Other
System requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browsers
browser
Cable or DSL modem (if required)
Subscription with an internet service provider (for internet access)
FCC, RoHS certifications
Environment Operating temperature : 0 ~ 40 (32 ~ 104 )
Operating humidity: 10%~90% non-condensing
TEST DATA
WiFi transmission power FCC: 29dBm (2.4 GHz), 28dBm (5 GHz), 22dBm (6 GHz)
CE: 17dBm (2.4 GHz), 27dBm (5 GHz), 20dBm (6 GHz)
WiFi reception sensitivity 2.4 GHz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 GHz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 GHz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
Physical
Dimensions (W. D. H.) 10.7 5.8 1.9 in
(272.5 147.2 49.2 mm)
Package contents Archer Wi-Fi Router AXE75
Power adapter
RJ Ethernet cable 45
Quick installation guide
Volume (m ³): 0.0107
