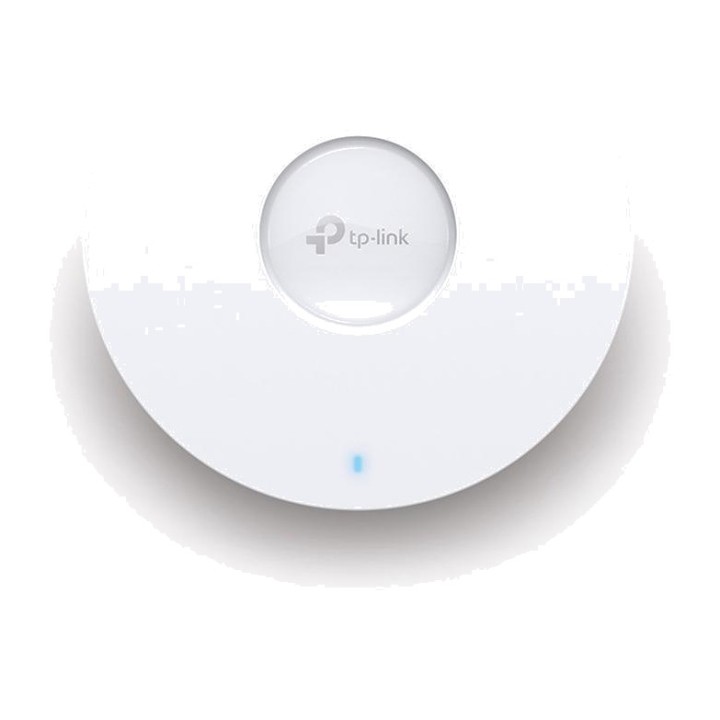

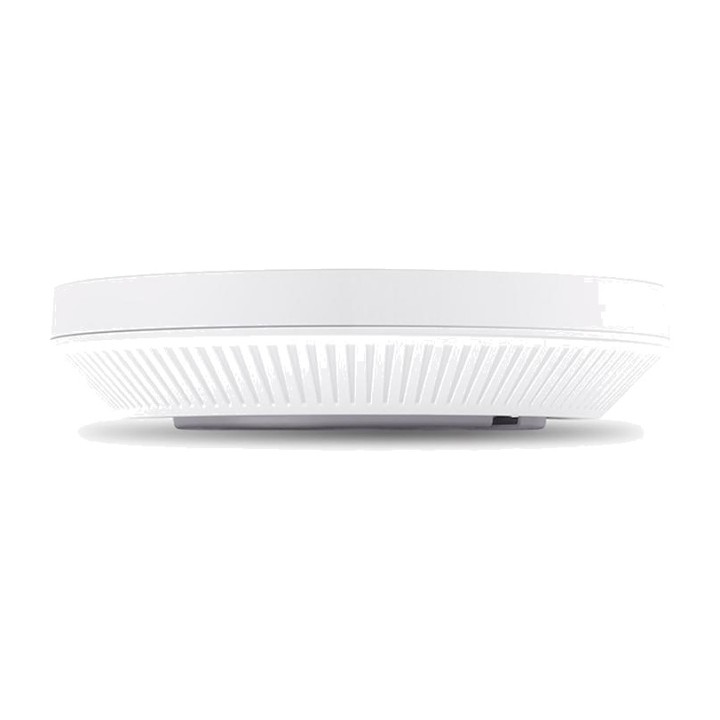

TP-LINK WiFi 6 Ceiling Access Point OMADA EAP653 AX3000 MGS0000022549

EAP653
Ceiling-Mount Wi-Fi 6 Access Point AX3000

Ultra-fast Wi-Fi 6 speeds. Up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz, for a total of 2976 Mbps.
High-efficiency networks. More than 250 devices connected simultaneously, stably and without interruptions.
Centralised management. The Omada controller provides intuitive and efficient network control, with local or cloud access.
160 MHz bandwidth. Reduces interference and doubles the available network spectrum in a single stream with HE160.
Omada Mesh. Enables connectivity between different Omada access points to create a network with extensive range and coverage.
Seamless roaming. Devices connected to the network automatically connect to the access point that can provide the best coverage without losing the connection
PoE+ compatibility. Supports Power over Ethernet (802.3at) for greater installation flexibility.

Hardware Features
Interface 1 Gigabit Ethernet port (RJ-45) (IEEE802.3at PoE compatible)
Buttons Reset
Power supply PoE 802.3at
12 V CC
(EU version: 12 V / 1,0 A DC. US version: 12 V / 1,5 A DC).
Note: the DC adapter is not included in the package and is sold separately
Passive PoE of 48 V
Power Consumption - UE: 13,07 W
- US: 13,98 W
Dimensions 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna type Internal omni
2,4 GHz: 2 × 4 dBi
5 GHz: 2 × 5 dBi

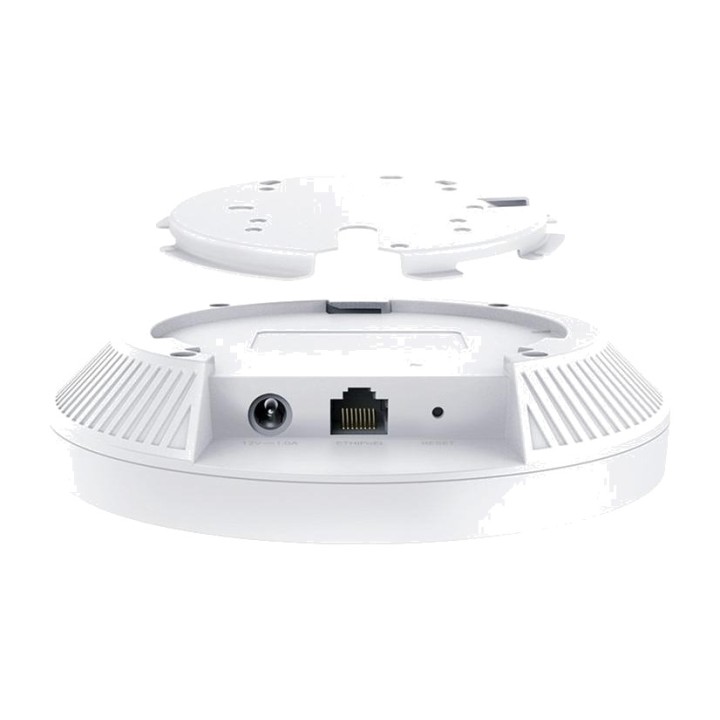

Mounting Ceiling / Wall Mount (Kits included)
Junction box mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: up to 2402 Mbps
2.4 GHz: up to 574 Mbps
WIRELESS FEATURES
1024-QAM
OFDM symbol 4 × longer
OFDMA
Multiple SSIDs (up to 16 SSIDs, 8 for each band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (transmit power adjustment in dBm)
Quality of Service (WMM)
MU-MIMO
HE160 (160 MHz bandwidth)
Continuous roaming
Omada Mesh
Band steering
Load balancing
Airtime fairness
Beamforming
Rate limit
Reboot schedule
Wireless schedule
Wireless statistics based on SSID / AP / Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC address filtering
Wireless client isolation
SSID-to-VLAN mapping
Rogue access point detection
Compatibility with 802.1X
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power - CE:
<,20 dBm (2,4 GHz, EIRP).
<,23 dBm(5 GHz, Band1 & Band 2, EIRP)
<,30 dBm(5 GHz, Band 3, EIRP).

- FCC:
<,25 dBm (2.4 GHz)
<,25 dBm (5 GHz)
Management
Omada App Yes
Centralized Management Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Omada cloud-based controller
Cloud access: Yes. Requires the use of OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller.
Email alerts Yes
LED control ON / OFF Yes
MAC Access Management Control Yes
SNMP v1, v2c, v3
Access to Local System Log/Remote System Log Local/remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-touch provisioning Yes. Requires the use of the Omada Cloud-Based Controller.
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT EAP653
Ceiling/Wall Mounting Kits
Installation guide

Notes: the DC adapter is not included in the package and is sold separately.
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environmental Factors Operating Temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 1090 % RH non-condensing
Storage humidity: 590 % RH non-condensing
Volume (m ³): 0.0037
