TP-LINK 48-port stackable L3 managed switch with 6 slots SFP+ 10G OMADA SG6654X MGS0000022238

SG6654X
Omada L3 Managed Stackable Switch with 48 Gigabit ports and 6 slots 10G

48 Gigabit RJ45 ports and 6 10 Gbps SFP+ slots
Switching capacity of 216 Gbps per unit
Stacking, redundancy and enhanced performance
L3 features. RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
Security. ACL, Port Security, DoS Defend, 802.1X
High availability with two power supplies, VRRP, and ERPS
Centralized cloud management through the Omada SDN Controller
Standalone management via Web, CLI, SNMP and RMON

What is this product used for?

Omada SG6654X is a high-performance L3 managed switch with L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48 Gigabit RJ45 ports, 6 10 Gbps SFP+ slots,
Gbps, physical stacking capability, and centralized management. Equipped with top-tier security and extensive management features, the SG6654X offers a reliable network solution for SMEs, enterprises, and ISPs.
Maximum 10G Uplink Connectivity. Optimize Bandwidth

48 Gigabit RJ45 ports and 6 10 Gbps SFP+ slots provide switching capacity of up to 216 Gbps per unit. Stacking is possible, with up to 4 units for switching capacity of
up to 864 Gbps. Optimize bandwidth with redundancy and high performance.
FUNCTIONS L3

Layer 3 routing protocols. Supports static routing, RIP, OSPF, ECMP, VRRP, DHCP server and DHCP relay. The PIM-DM multicast routing protocol ensures efficient routing
for multicast groups.
High Availability

Redundant power supplies (optional) and VRRP make it the ideal choice for a reliable network architecture. **ERPS supports fast protection and recovery in a ring topology.
Advanced security

Protection against a wide range of network threats thanks to support for ACL (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, port security and Secure Shell.
Omada SDN

Provides centralized cloud management and a range of management features, such as Zero-Touch Provisioning (ZTP)*. The Omada Software Defined Networking (SDN) platform integrates devices such as
network devices, such as access points, switches and routers, and provides 100% centralized cloud management.

In addition to being centrally managed via the Omada web interface or app, it is also easy to manage using an intuitive web-based graphical user interface (GUI) or the interface of
command-line interface (CLI). In both management methods, traffic is protected using SSL or SSH encryption. Support for SNMP (v1/v2c/v3) and RMON provides information
about the switch status and sends alerts in the event of abnormal events.
Hardware Features

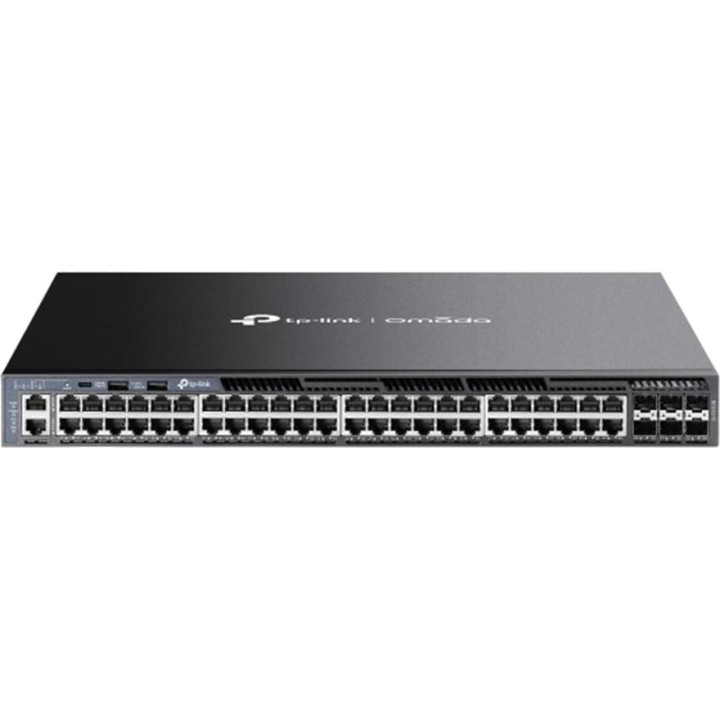

Interface 48 10/100/1000 Mbps RJ45 Ports
6 10G SFP+ Slots
2 USB 2.0 Ports
1 RJ45 Console Port
1 USB Type-C Console Port
1 RJ45 Management Port

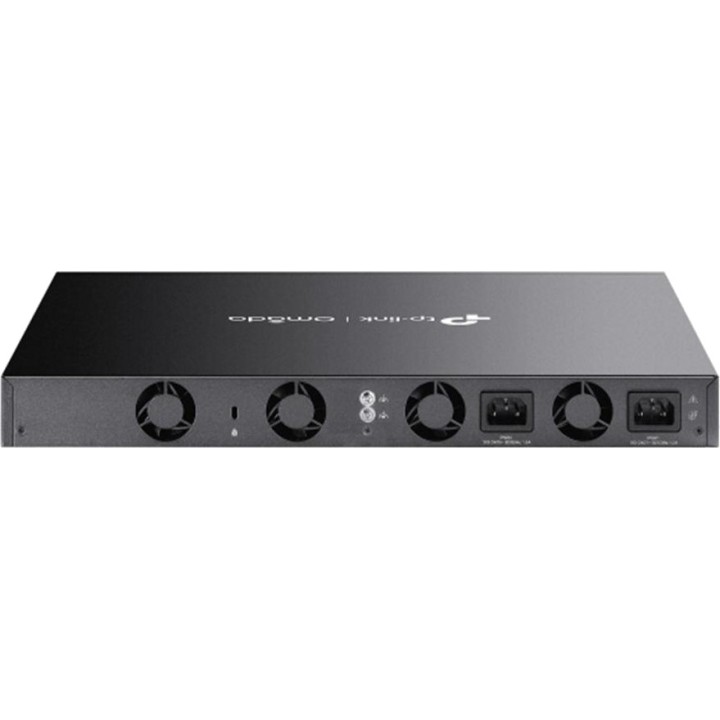

Number of Fans Four Internal Fixed Fans
Power Supply Two Internal Fixed Power Supply Modules (100240 VAC, 50/60 Hz)
Dimensions 17.3 15.0 1.7 in (440 380 44 mm)
Mounting Rackmountable
Maximum Power Consumption 39.8 W (220 V/50 Hz)
Maximum heat dissipation 135.81 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity 216 Gbps per Unit
Stacking Number : 4
Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Stack Bandwidth: Up to 120 Gbps (6 stack ports)
Packet Forwarding Rate 160.7 Mpps
Address Table MAC 32 K
Packet Buffer Memory 3 MB
Jumbo frame 9 KB
SOFTWARE FEATURES
Quality of Service Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Storm Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 IP Interfaces Features:
- IPv4: Max 256, IPv6: Ma x 256
Static Routing
- Max 1,024, IPv6: Ma x 512
Host Route Table: Max 6,100 entries
RIP: Version v1/v2, Ma x 8,190
OSPF: Version v2/v3, v2: Max 8,190, v3: Ma x 4,097
VRRP: Version v2/v3, Max 64 groups
ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Static ARP: 512 static entries
Dynamic ARP: 7,680 dynamic entries
Proxy ARP
DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3X Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv 4)
Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
Advanced Features Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
VLAN Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN
Port Isolation Security
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv 6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
DHCP Filter
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
AAA (including TACACS+)
Secure web management through HTTPS with SSLv 3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control
Management
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable diagnostics
Password Recovery
SNTP
System Log
EEE
Others
Package Contents SG6654X Switch
2 Power Cords
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux system requirements.
Environmental Factors Operating Temperature:
-5 C to 50 C (23 F to 122 F) @ 300 meters
-5 C to 45 C (23 F to 113 F) @ 2,000 meters
-5 C to 40 C (23 F to 104 F) @ 3,000 meters

Storage Temperature: -40 C to 70 (-40 to 158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Volume (m ³): 0.0074
