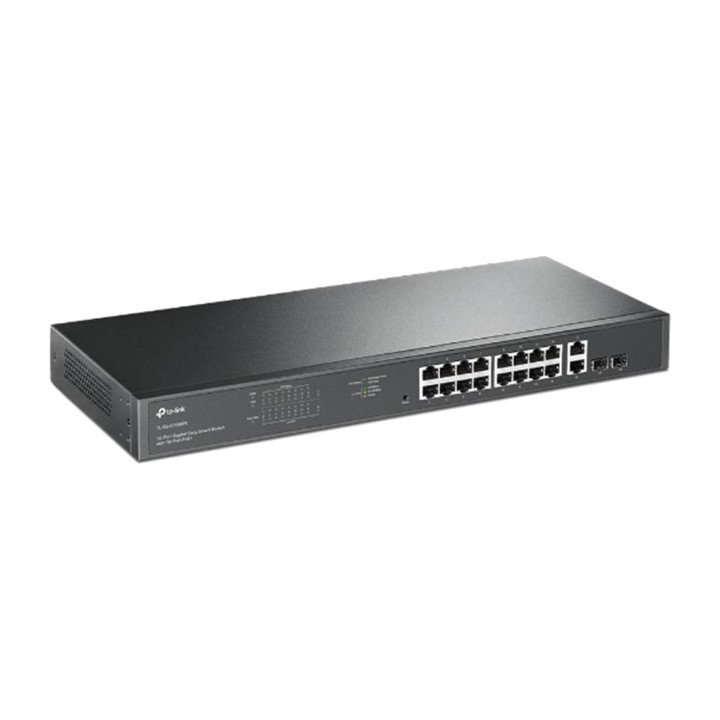

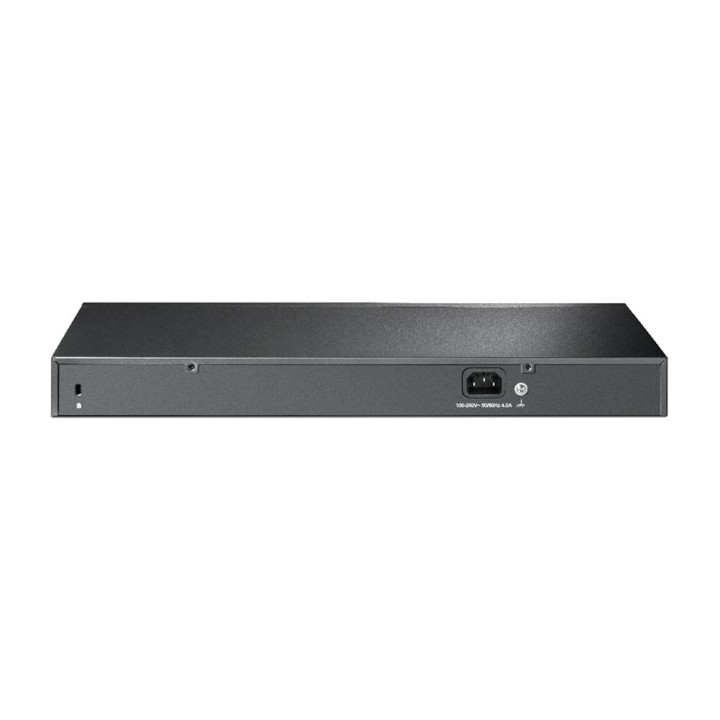

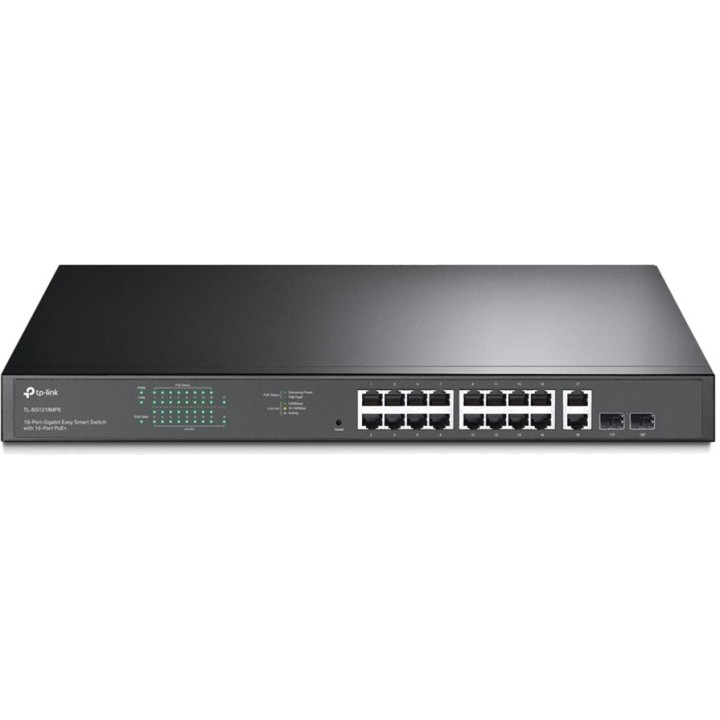

TP-LINK 18-port managed Gigabit switch with 16 PoE+ TL-SG1218MPE EASY-SMART 2X-SFP MGS0000021909

18-Port Gigabit Easy Smart Switch with PoE+ on 16 Ports.

16 Gigabit RJ45 PoE+ ports, 2 non-PoE Gigabit RJ45 ports and 2 Gigabit SFP combo slots.
PoE power budget is up to 250 W, making it ideal for small and medium-sized business surveillance systems.*
Port Priority ensures the quality of sensitive applications such as video monitoring.
PoE Auto Recovery automatically restarts PoE devices that disconnect or stop responding.
Intelligent power management protects the switch against overloads.
Quality of Service (QoS) ensures smooth traffic flow for latency-sensitive applications.
IGMP Snooping optimizes the delivery of multimedia traffic, such as IPTV.
Hardware Features
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000 Mbps PoE+ RJ45 ports (Auto-Negotiation/Auto MDI/MDIX)
2 10/100/1000 Mbps non-PoE RJ45 ports (Auto-Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Combo Ports
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Number of Fans 2 Fans
Physical Security Lock Yes
Power Supply 100240V AC, 50/60 Hz
PoE+ ports (RJ45) - Standard: compatible with 802.3at/802.3af
- PoE+ ports: Ports 1-16
- Power supply : 250 W
Dimensions 17.3 7.1 1.7 in (440 180 44 mm)
Mounting Rack mounting
Maximum Power Consumption v2, v3, 3.20, v 4:
- 21.4 W (220/50 Hz, without PD connected)
- 296.3 W (220/50 Hz, with 250 W DP connected)

v5:
- 19.4 W (220 V/50 Hz, without PD connected)
- 293.3 W (220 V/50 Hz, with 250 W DP connected)
Maximum heat dissipation v2, v3, 3.20, v 4:
- 72.97 BTU/h (without PD connected)
- 1010.38 BTU/h (with 250 W DP connected)

v5:
- 66.15 BTU/h (without PD connected)
- 1000.15 BTU/h (with 250 W DP connected)
Performance
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
Address Table MAC 8K
Packet Buffer Memory 4.1 Mbit
Jumbo frame 10 KB
SOFTWARE FEATURES
Quality of Service - Supports port-based 802.1p/DSCP priority
- Supports 4 priority queues
- Rate limiting
- Storm control
L2 Features - IGMP Snooping V1/V2/V3
- Static link aggregation
- Port mirroring
- Cable diagnostics
- Loop prevention
- Automatic PoE recovery
VLAN - Supports up to 32 simultaneous VLANs (out of 4K VLAN IDs)
- MTU/Port/VLAN tag
Management - Web-based graphical user interface
- Simple smart configuration utility
Store-and-forward transmission method
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT - TL-SG1218MPE
- Power cable
- Installation guide
- Rack mounting kit
- Rubber feet
Environmental factors - Operating temperature : 0-50 C (32-122 F)
- Storage temperature : -40-70 C (-40-158 F)
- Operating humidity: 10-90% RH, non-condensing
- Storage humidity: 5-90% RH, non-condensing
Volume (m ³): 0.0106
