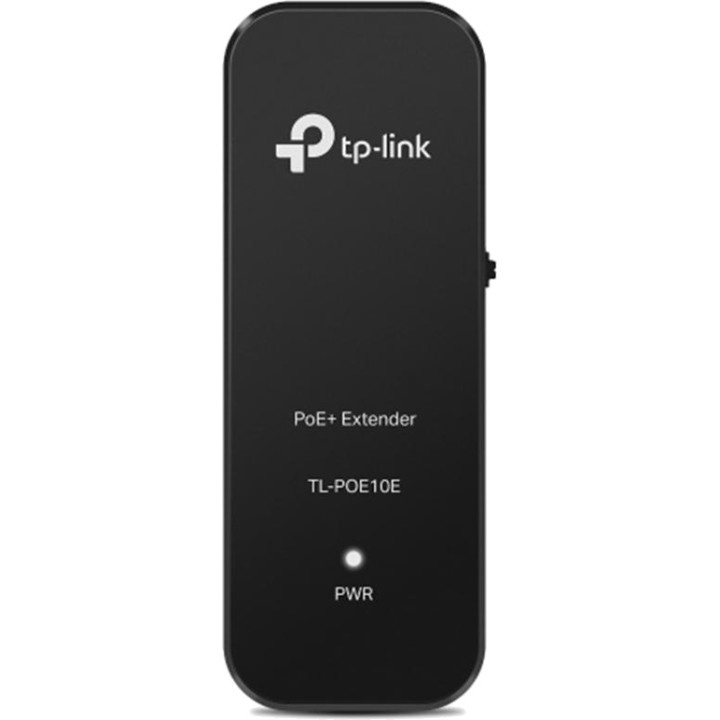

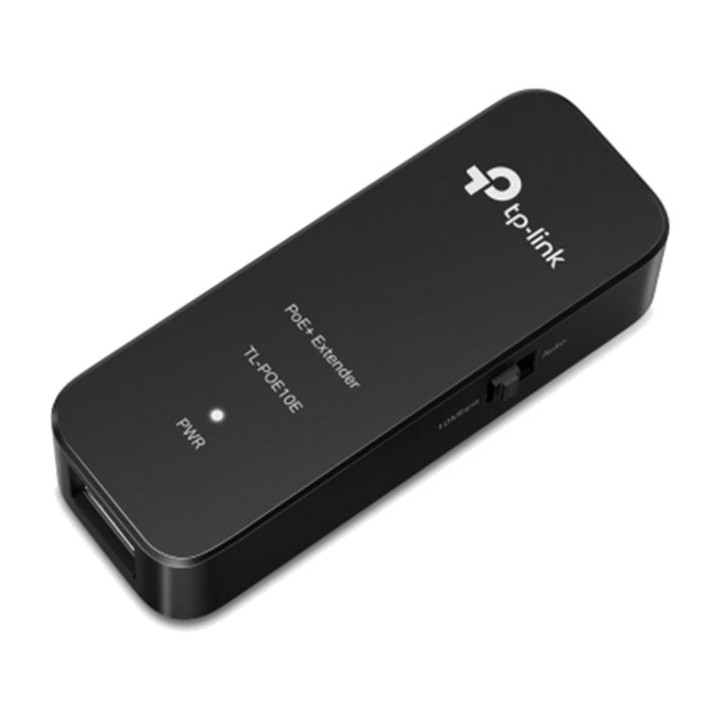

TP-LINK 2-Port Fast Ethernet PoE+ Extender TL-POE10E 802.3AT 20W MGS0000019803

Fast Ethernet PoE+ Extender

Extends a PoE/PoE+ network connection an additional 100m 250m (10 Mbps Mode) from the PoE power sourcing equipment
Compatible with 802.3af/at devices and supports a maximum output power of 20W
2 10/100Mbps ports ensure faster transmission
Plug and play, no configuration required

GRID
Standards and Protocols IEEE802.3i, IEEE802.3u
general
FCC, CE, RoHS certification
Environment - Operating temperature: 0C to 45C (32F to 113F)
- Storage temperature: -40C to 70C (-40F to 158F)
- Operating humidity: 10% to 90% RH non-condensing
- Storage humidity: 5% to 90% RH non-condensing
Material Plastic housing
package contents
Package contents - Fast Ethernet PoE+ Extender TL-POE10E
- Installation guide
Hardware Features
Network Media Cat.5E or higher UTP/STP (according to the standards met by the connected devices)

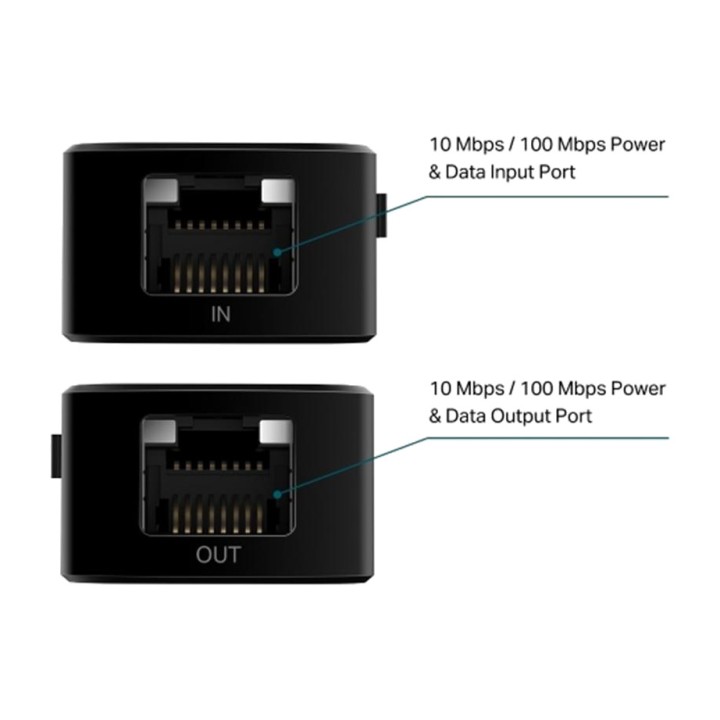

Ports - 1 10 Mbps /100 Mbps PoE IN RJ45 port
- 1 10 Mbps /100 Mbps PoE OUT RJ45 port
Basic Functions - 1 10/100 Mbps PoE IN RJ45 port
- 1 10/100 Mbps PoE Out RJ45 port, supplies up to 20 W

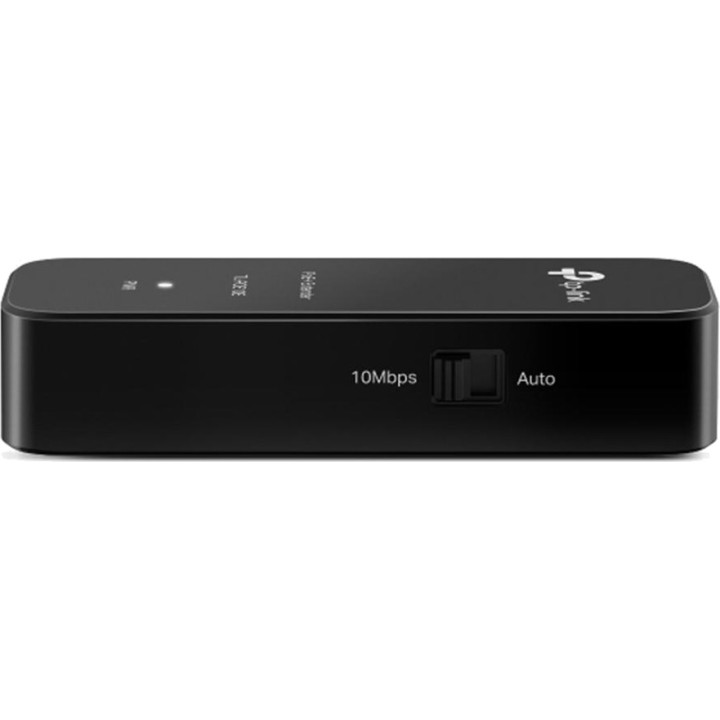

- Data and power transmission range of up to 250 m in 10 Mbps mode
- Plug and Play
Dimensions 2.33*0.85*0.52 in (71*26*16 mm)
POE ADAPTER SPECIFICATIONS
Output compliant with 802.3af/at devices
Volume (m ³): 0.0004
