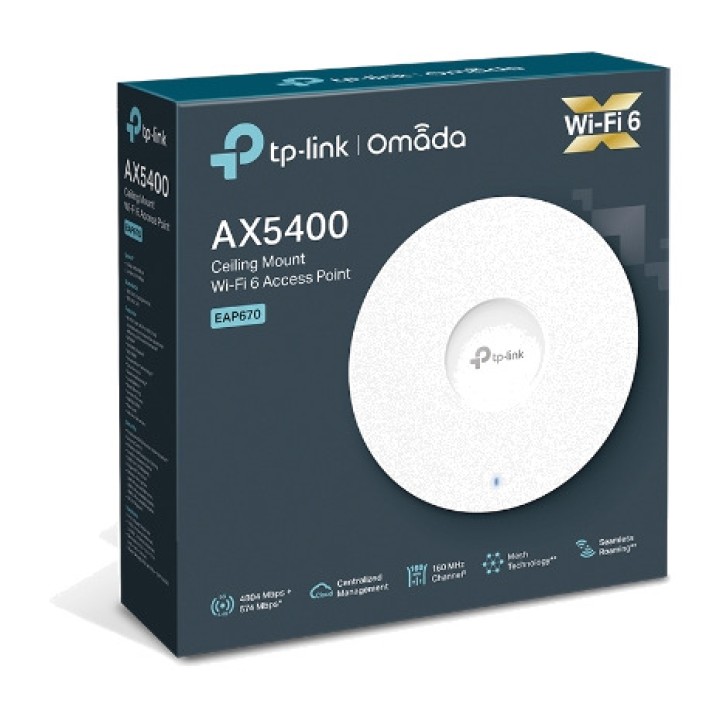

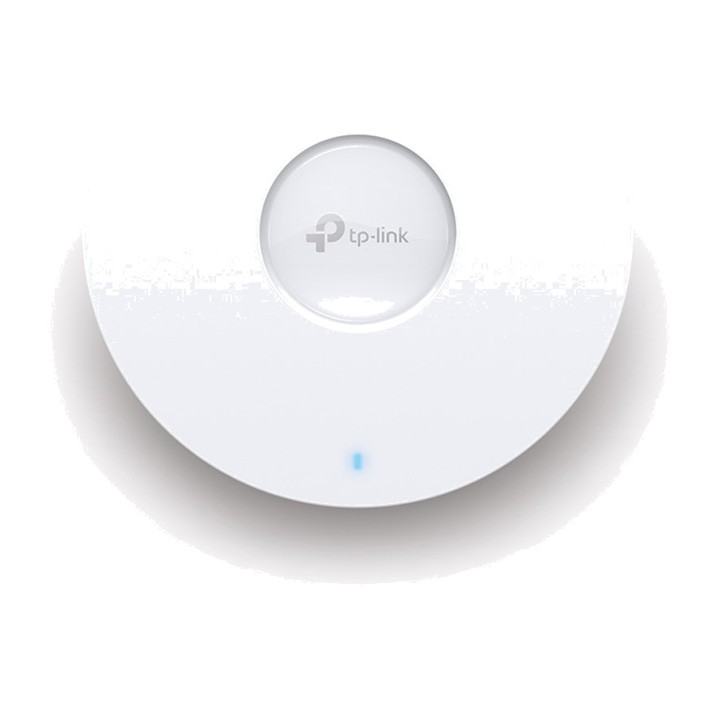

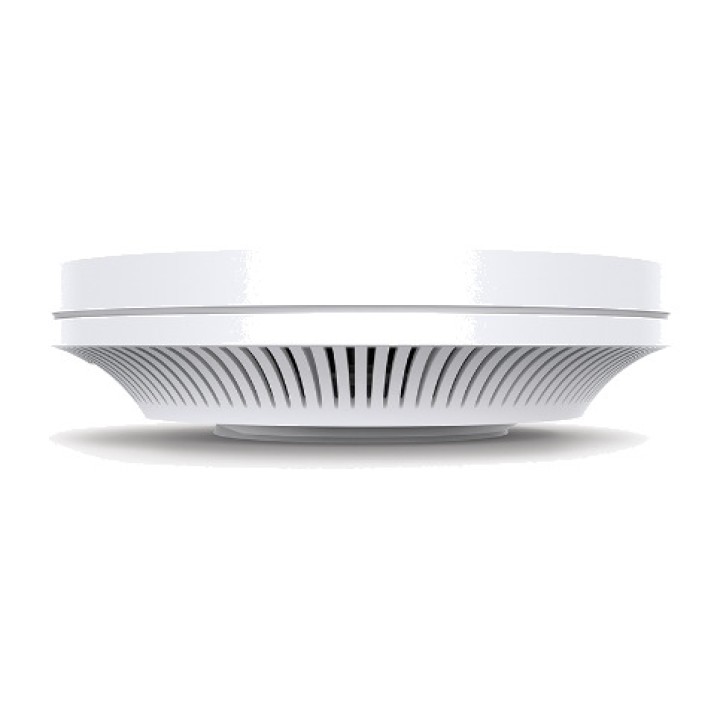

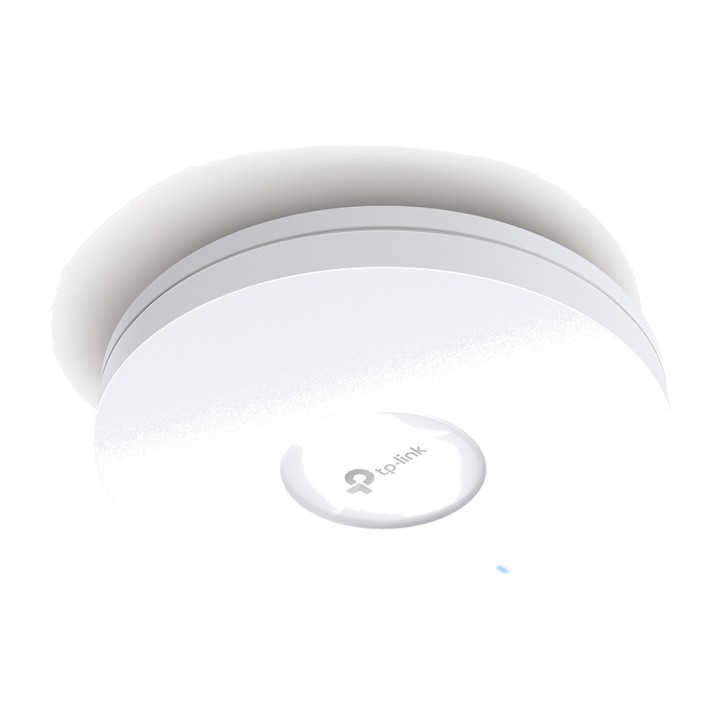

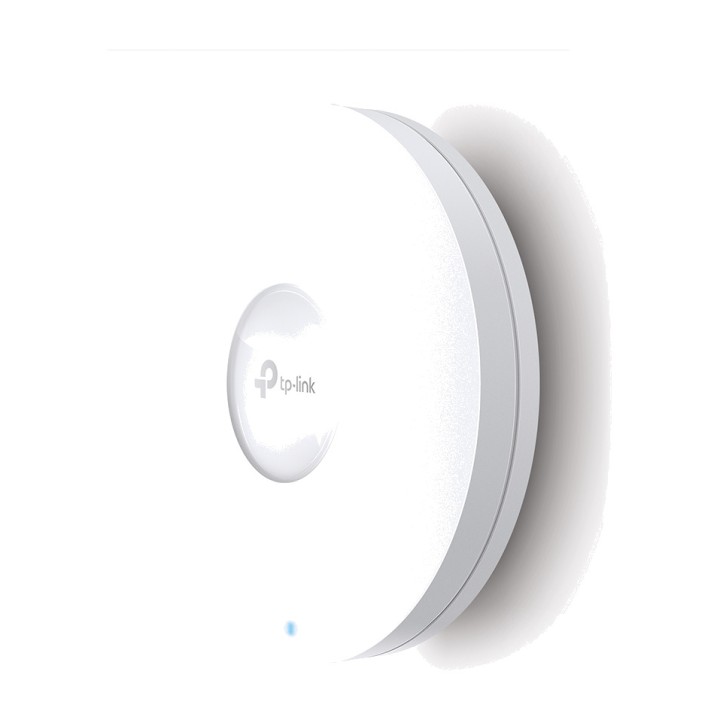

TP-LINK WiFi 6 Ceiling Access Point OMADA EAP670 AX5400 MGS0000014939

Ceiling-Mount Wi-Fi 6 Access Point AX5400

Incredibly Fast Wi-Fi 6: simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz add up to Wi-Fi speeds of 5378 Mbps.
High-Efficiency Wi-Fi 6: more connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the entire network locally or from the cloud via the web user interface or the Omada app.
160 MHz Channel: doubles the data at peak transmission times in a single stream with HE160.
Seamless Roaming: video streams and voice calls are unaffected when users move between locations.
Omada Mesh: enables wireless connectivity between access points for extended range and flexible deployment.
Powered by PoE+: supports 802.3at PoE+ and DC power supplies (adapter included) for flexible installations.

Hardware Features

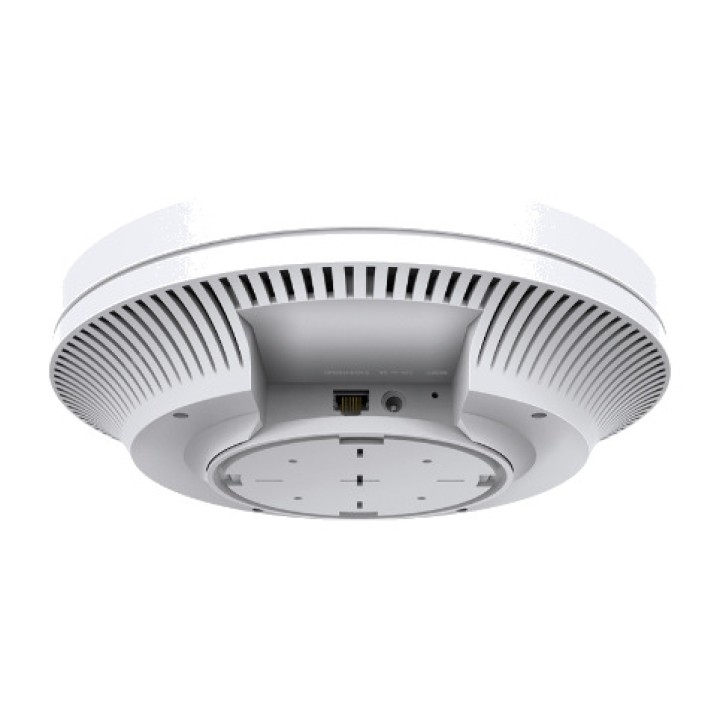

Interface 1 2.5 Gigabit Ethernet port (RJ-45) (IEEE802.3at PoE compatible)
Buttons Reset
Power supply
802.3at PoE
12 V / 1.5 A DC
Power Consumption
EU: 18.1 W
US: 19.8 W
Dimensions 9.6 9.6 2.5 in (243 243 64 mm)
Antenna type Internal omni
2.4 GHz: 2 4 dBi
5 GHz: 4 5 dBi
Mounting Ceiling/Wall Mount (kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
2.4 GHz and 5 GHz frequency
Signal Rate
5 GHz: up to 4804 Mbps
2.4 GHz: up to 574 Mbps
WIRELESS FEATURES
1024-QAM
4× longer OFDM symbol
OFDMA
Multiple SSIDs (up to 16 SSIDs, 8 for each band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (transmit power adjustment in dBm)
QoS (WMM)
MU-MIMO
HE160 (160 MHz bandwidth)
Continuous roaming
Omada Mesh
Band steering
Load balancing
Airtime fairness
Beamforming
Rate limit
Reboot schedule
Wireless schedule
Wireless Statistics Based on SSID/AP/Client
Wireless security
Captive portal authentication
Access control
Wireless MAC address filtering
Wireless client isolation
SSID-to-VLAN mapping
Rogue access point detection
Compatibility with 802.1X
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
CE Transmission Power:
<,20 dBm (2.4 GHz, EIRP)
<,23 dBm (5 GHz, band 1 and band 2, EIRP)
<,30 dBm (5 GHz, band 3, PIRE)

FCC:
<,25 dBm (2.4 GHz)
<,28 dBm (5 GHz)
Management
Omada App Yes
Centralized Management Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Omada cloud-based controller
Cloud access Yes (via OC300, OC200, Omada Software Controller or Omada Cloud-Based Controller)
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
Access to Local System Log/Remote System Log Local/remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-touch provisioning Yes. Requires the use of the Omada Cloud-Based Controller.
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT EAP670
Power adapter
Ceiling/Wall Mounting Kits
Installation guide
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
Environmental Factors Operating Temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 1090 % RH non-condensing
Storage humidity: 590 % RH non-condensing
Volume (m ³): 0.0066
