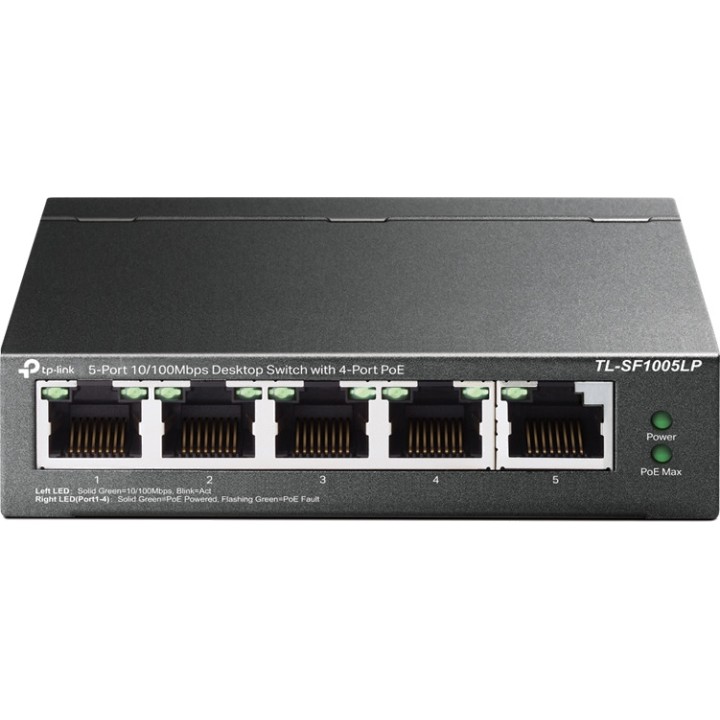

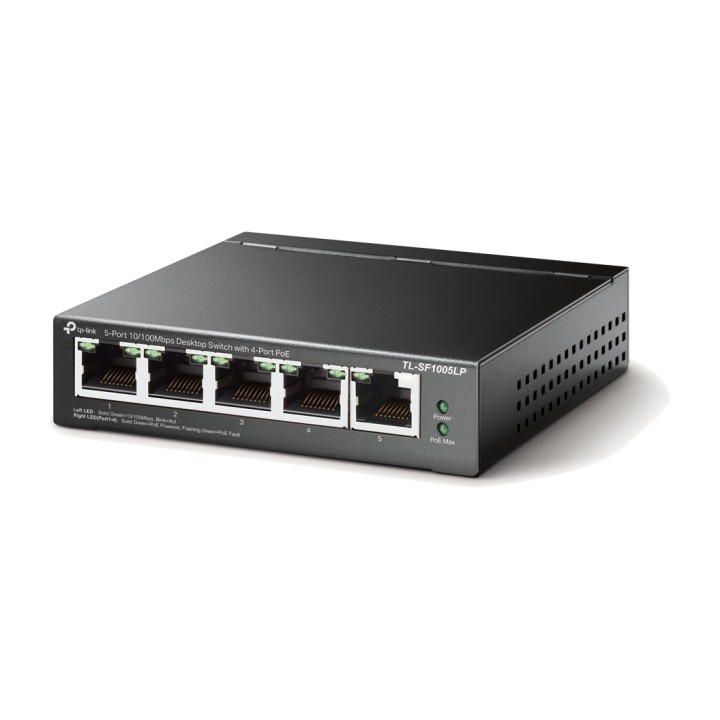

TP-LINK 5-Port Fast Ethernet Unmanaged Switch with 4 PoE TL-SF1005LP 41W MGS0000012646 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
TP-LINK 5-Port Fast Ethernet Unmanaged Switch with 4 PoE TL-SF1005LP 41W MGS0000012646
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos5 10/100 Mbps RJ45 ports
4 PoE ports transmit data and power over individual cables
Works with IEEE 802.3af-compliant PDs
Data and power transmission range of up to 250 m in extended mode **
Priority mode ensures high priority for ports 1 to 2 to
ensure the quality of sensitive applications
Supports up to 41 W of PoE power for all PoE ports *
Plug and play with no configuration required
Hardware Features
Interface 5 10/100 Mbps RJ45 ports (ports 1 to 4 support 802.3af PoE)
Auto-Negotiation
auto MDI / MDIX
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 STP, 100 (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 STP, 100 (maximum 100 m)
Quantity of Fans No Fan
Physical Security Lock Yes
External Power Supply External power adapter (output : 53,5
V CC / 0,81 A)
Packet Forwarding Rate 0.744 Mpps
PoE ports (RJ45) Standard: 802.3 af compatible
PoE Ports: Ports 14
Power supply : 41 W
Address Table MAC 2K
Jumbo frame 2 KB
Switching capacity 1 Gbps
Dimensions 3.93.91.0 in (1009825 mm)
Maximum Power Consumption 1,9 W (220 V / 50 Hz, with no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Maximum Heat Dissipation 6,48 BTU / h (with no PD connected)
160.27 BTU/h (with 41 W PD connected)
SOFTWARE FEATURES
Transmission method Store-and-forward
Advanced Features Compatible with IEEE 802.3af / at-compatible PDs
Extended Mode button (ports 1 to 4)
Priority Mode Button (Ports 12)
Self-learning and automatic aging of MAC addresses
IEEE 802.3x flow control for full-duplex mode and backpressure for
half-duplex mode
Others
FCC, CE, RoHS certifications

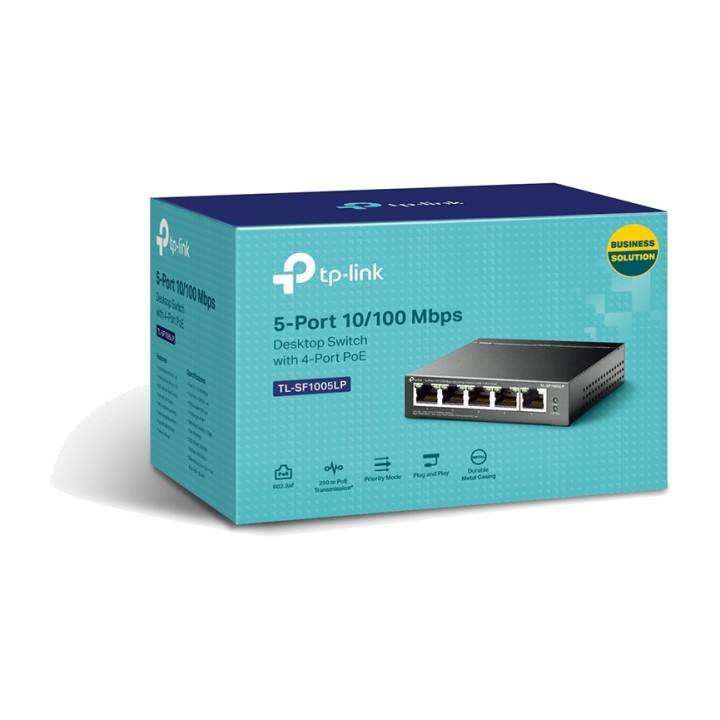

PACKAGE CONTENT TL-SF1005LP
Power adapter
Installation guide
Environment Operating temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 10 to 90% relative humidity, non-condensing
Storage humidity: 590% relative humidity, non-condensing
Volume (m ³): 0.0031
- Brand
- TP-LINK
- Reference
- MGS0000012646
- EAN-13
- 6935364052782
- Weight
- 1 kg
