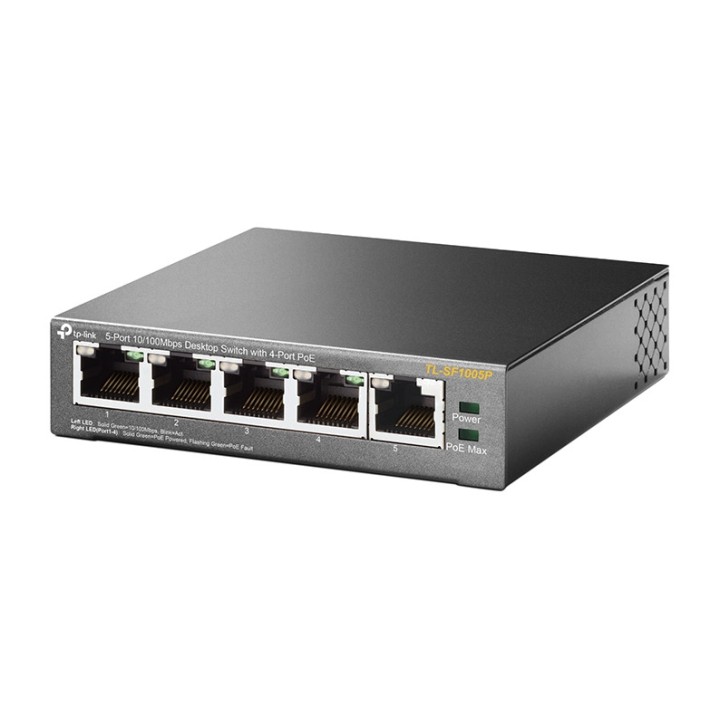

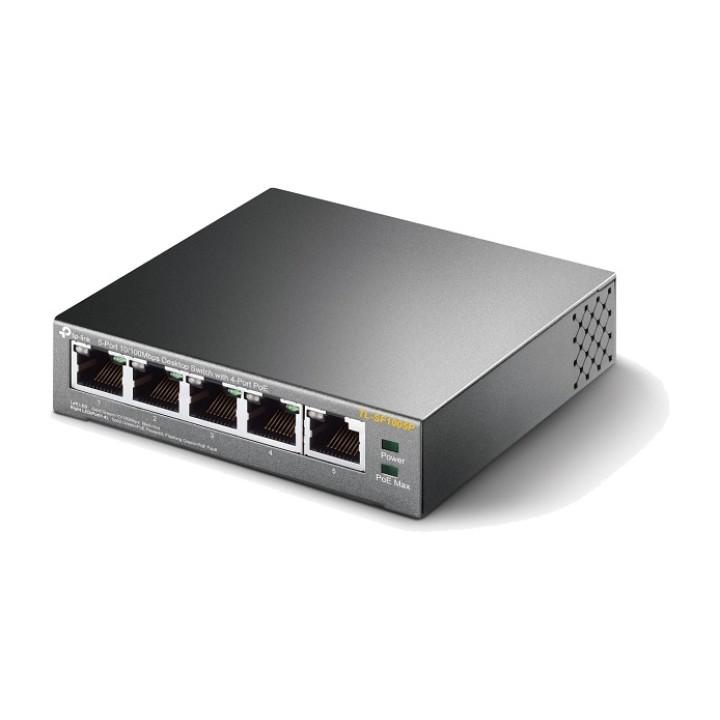

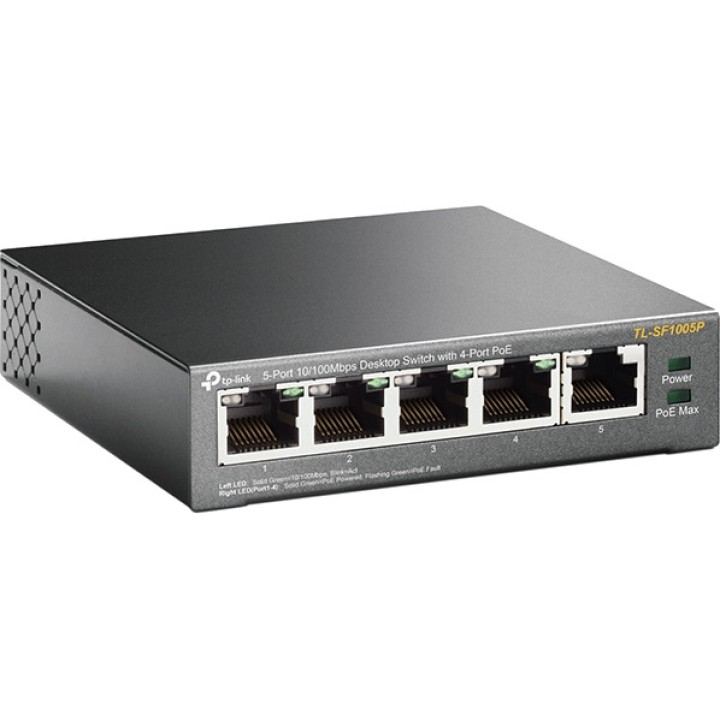

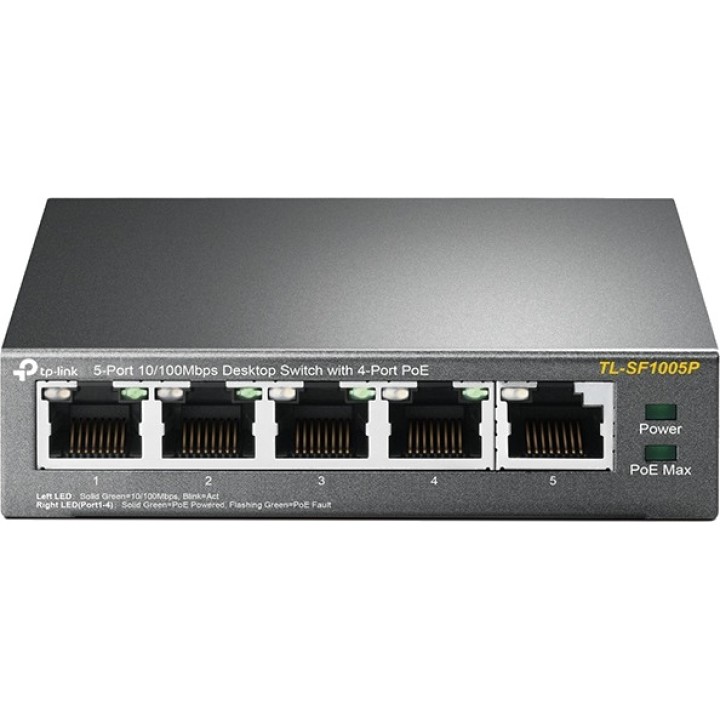

TP-LINK 5-Port Fast Ethernet Unmanaged Switch with 4 PoE TL-SF1005P 802.3AF MGS0000012645

5-Port 10/100 Mbps Desktop Switch with 4-Port PoE

5 10 / 100Mbps RJ45 ports
With four PoE ports, it transfers data and power over a single cable
Working with IEEE 802.3af-compatible PDs expands the home and office network
Supports PoE power of up to 15.4 W for each PoE port
Supports PoE power of up to 58 W for all PoE ports
No configuration or installation required
Hardware Features
Interface: 5 10/100 Mbps RJ45 ports
AUTO / AUTO MDI / MDIX negotiation
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
Quantity of Fans No Fan
Physical Security Lock Yes
External Power Supply External power adapter (output : 48 V
CC / 1,25 A)
Packet Forwarding Rate 0.744 Mpps
PoE ports (RJ45) Standard: 802.3 af compatible
PoE ports: Port1- Port4
Total power: 58W
Address Table MAC 2K
Jumbo frame 2 KB
Switching capacity 1Gbps
Dimensions 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Maximum Power Consumption 1,678 W (max. with no PD connected)
64,82 W (max. with 58 W PD connected)
Maximum heat dissipation 5.73BTU / h (with no PD connected)
221.17 BTU/h (with 58 W PD connected)
SOFTWARE FEATURES
Transmission method Store-and-forward
Advanced features Compatible with PDs compliant with IEEE 802.3af
Priority function
Automatic learning and aging of MAC addresses
IEEE 802.3x flow control for full-duplex mode and backpressure for
half-duplex mode
Others
FCC, CE, RoHS certifications
Package contents TL-SF1005P, power adapter, user guide
Environment Operating temperature : 0 ~ 40 (32 ~ 104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating humidity: 10% ~ 90% RH non-condensing
Storage humidity: 5% ~ 90% RH non-condensing
Volume (m ³): 0.0030
