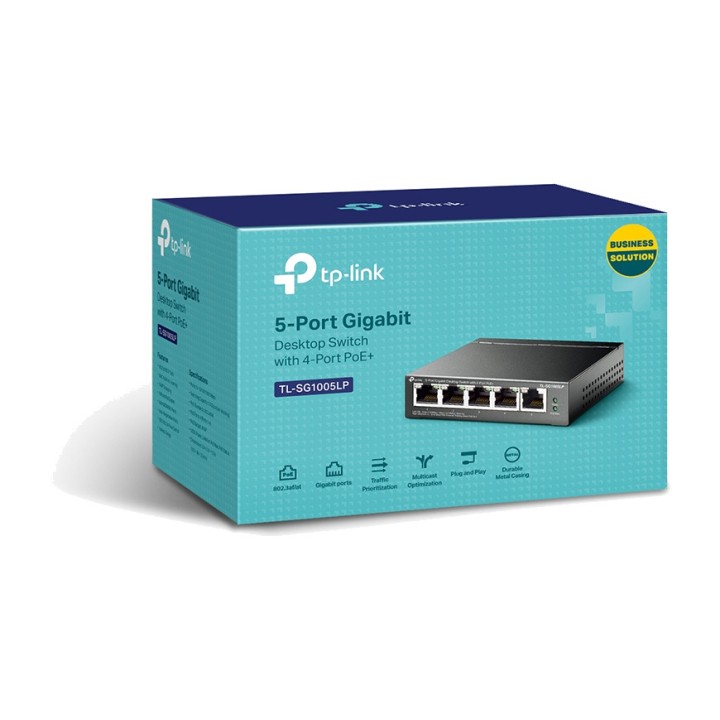

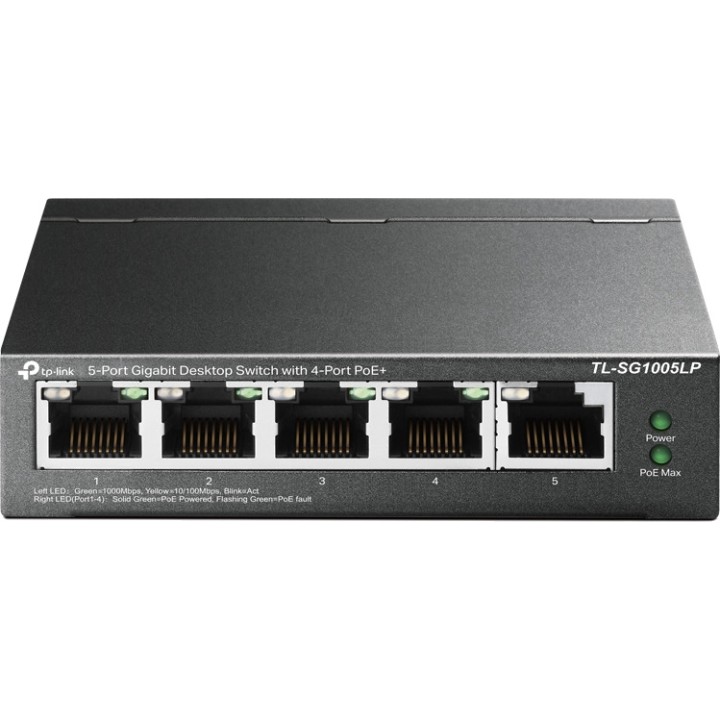

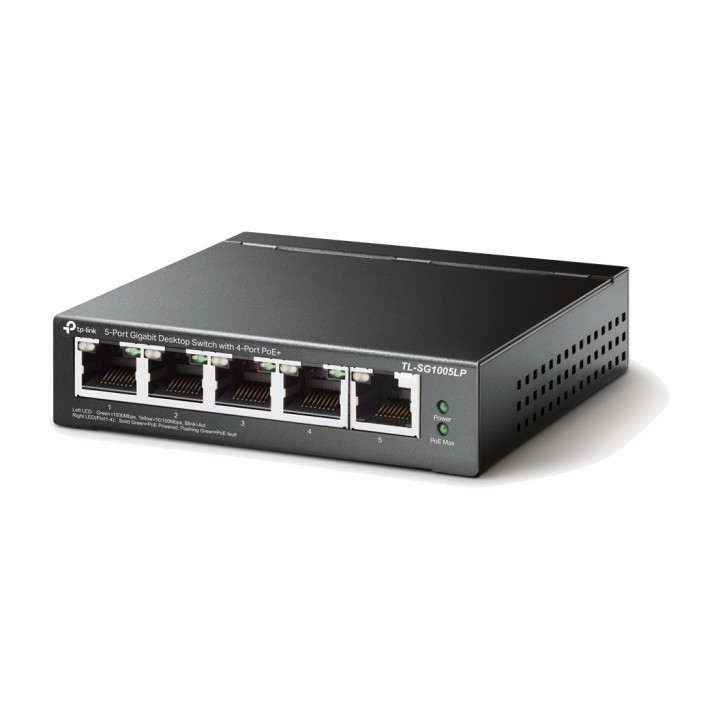

TP-LINK 5-Port Gigabit Unmanaged Switch with 4 PoE+ TL-SG1005LP 802.3AT MGS0000012641 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
TP-LINK 5-Port Gigabit Unmanaged Switch with 4 PoE+ TL-SG1005LP 802.3AT MGS0000012641
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos5 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, it transfers data and power over a single cable
Works with IEEE 802.3af / at-compatible PDs
802.1p / DSCP QoS enables smooth latency-sensitive traffic
Supports PoE power of up to 30 W for each PoE port
Supports up to 40 W of PoE power for all PoE ports *
Plug and play, no configuration or installation required
Hardware Features
Interface 5 10/100/1000 Mbps RJ45 ports
Auto-Negotiation
auto MDI / MDIX
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 STP, 100 (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 STP, 100 (maximum 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA / TIA-568 STP, 100 (maximum 100 m)
Quantity of Fans No Fan
External Power Supply External power adapter (output : 53,5
V CC / 0,81 A)
Packet Forwarding Rate 7.44 Mpps
PoE ports (RJ45) Standard: 802.3 af / at compatible
PoE Ports: Ports 14
Power supply : 40 W
Address Table MAC 2K
Jumbo frame 16 KB
Switching Capacity 10 Gbps
Dimensions 3.9×3.9×1.0 in (99.8×98×25 mm)
Maximum Power Consumption 4,12 W (220/50 Hz. Without PD connected)
47,5 W (220/50 Hz. With 40 W PD connected)
Maximum heat dissipation 14,05 BTU / h (without PD connected)
161,98 BTU / h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible with PDs compliant with IEEE 802.3af / at
Self-learning and automatic aging of MAC addresses
Flow control IEEE 802.3x
QoS 802.1p / DSCP
IGMP snooping
Transfer Method Store-and-forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG1005LP
Power adapter
Installation guide
Environmental Factors Operating Temperature : 040 (32104 ),
Storage temperature : -4070 (-40158 )
Operating humidity: 10 to 90% relative humidity, non-condensing
Storage humidity: 590% relative humidity, non-condensing
Volume (m ³): 0.0031
- Brand
- TP-LINK
- Reference
- MGS0000012641
- EAN-13
- 6935364052720
- Weight
- 1 kg
