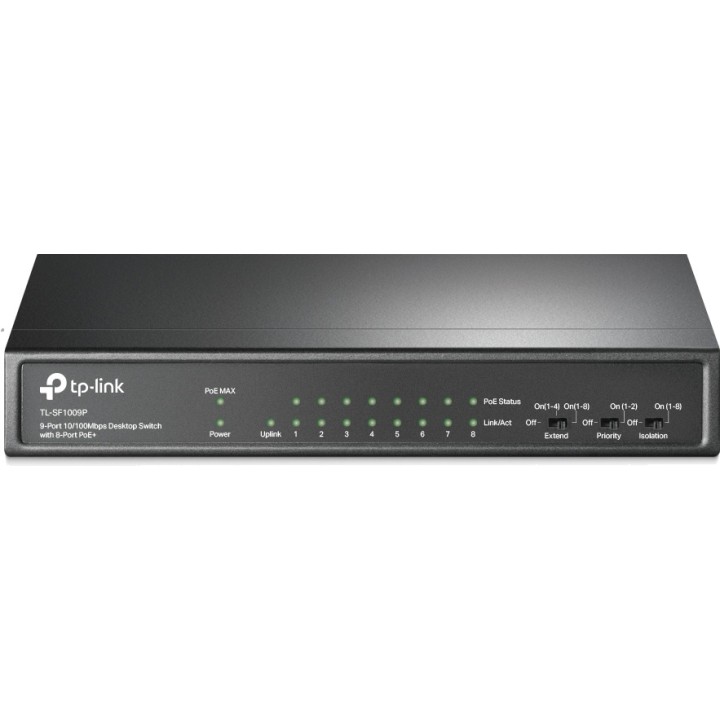

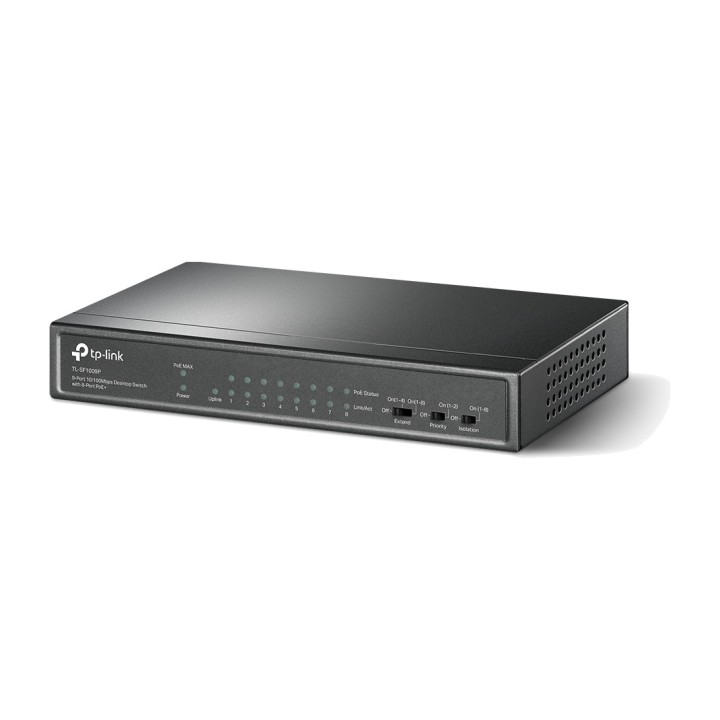

TP-LINK 9-Port Fast Ethernet Unmanaged Switch with 8 PoE+ TL-SF1009P MGS0000012636
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power over individual cables
Works with IEEE 802.3af/at-compatible PDs
Supports PoE power of up to 30 W for each PoE port
Supports PoE power of up to 65 W for 8 PoE ports*
Data and power transmission range of up to 250 m in Extended Mode**
Priority Mode ensures ports 1 and 2 have high priority to
ensure the quality of
sensitive application
Isolation Mode allows customer traffic to be separated with a single
click for greater security and
performance
Plug and play with no configuration required
HARDWARE FEATURES

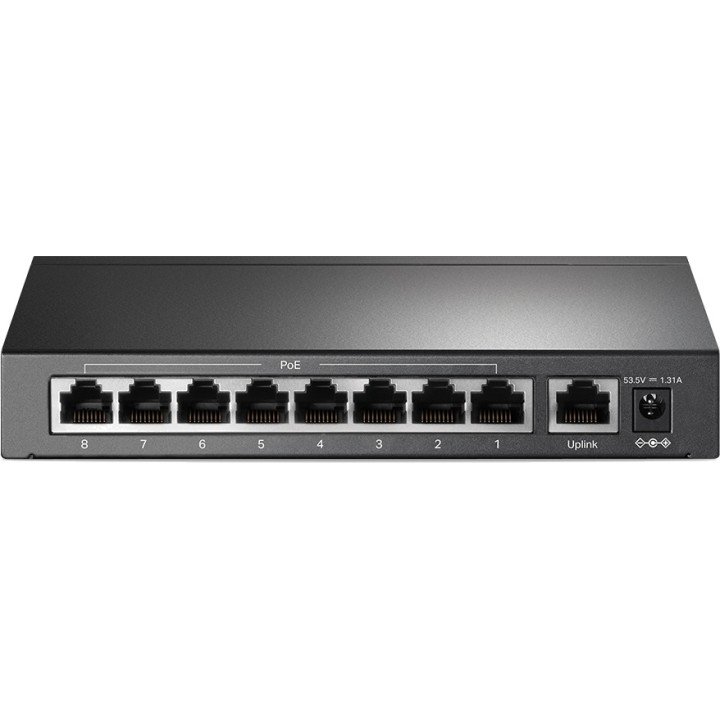

Interface: 9 10/100 Mbps RJ45 ports (8 10/100 Mbps 802.3af/at PoE+ ports)
Auto-Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100m)
Number of fans Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter (Output : 53.5VDC
/
1.31A)
Packet Forwarding Rate: 1.3392 Mpps
PoE (RJ45) Ports Standard: Complies with 802.3 af/at
PoE Ports: Ports 18
Power supply: 65W
Address Table MAC 2K
Jumbo frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions 6,7 3,9 1,1 in. (171 98 27 mm)
Maximum Power Consumption 3.6 (220/50 Hz. without PD connected)
77,08 (220/50 Hz. with 65 W PD connected)
Maximum heat dissipation 12,28 BTU/h (without PD connected)
262,84 BTU/h (with 65 W PD connected)
Software features
Store-and-Forward transmission method
Advanced Features Compatible with IEEE 802.3af/at-compliant PDs
Extended Mode Button (Ports 14 and Ports 18, PoE power supply
up to 250 m and
data transmission)
Priority Mode Button (Ports 12)
Isolation Mode Button (ports 1 to 8)
Self-learning and automatic aging of MAC addresses
IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
MODE
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SF1009P
Power adapter
Installation guide
Environmental Factors Operating Temperature : 040 (32104 )
Storage temperature : -4070 (-40158 )
Operating humidity: 1090 % RH non-condensing
Storage humidity: 590 % RH non-condensing
Volume (m ³): 0.0043
- Brand
- TP-LINK
- Reference
- MGS0000012636
- EAN-13
- 6935364052966
- Weight
- 1 kg
