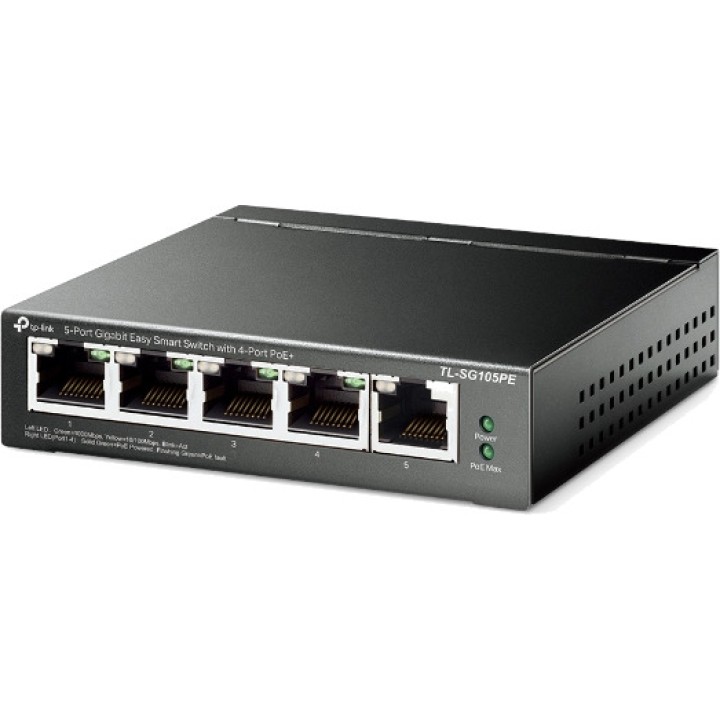

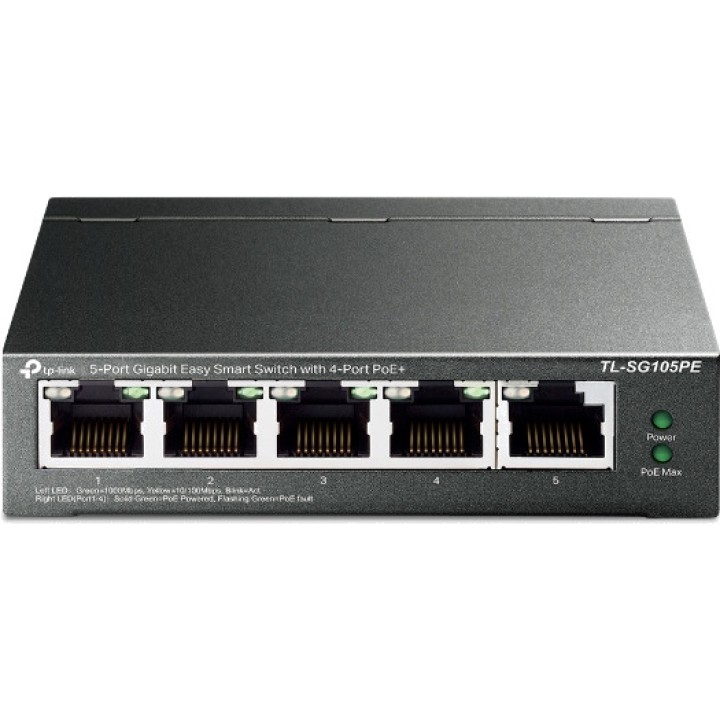

TP-LINK 5-Port Gigabit Managed Switch with 4 PoE+ TL-SG105PE EASY-SMART 65W MGS0000012617

5-Port Easy Smart Gigabit Switch
with 4-port PoE+

Five 10/100/1000 Mbps RJ45 ports
Equipped with four 802.3af / at PoE + ports with up to 30 W for each port,
data and power can be transferred over a single cable
Supports a total PoE power supply of up to 65 W *
Provides network monitoring, traffic prioritization, VLAN functions and
PoE Auto Recovery
Simple network configuration plus plug-and-play connectivity
The web-based user interface and Easy Smart Configuration Utility
simplify configuration
The fanless design reduces power consumption and eliminates noise from
Functioning
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000 Mbps RJ45 ports
AUTO / AUTO MDI / MDIX negotiation
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
Quantity of Fans No Fan

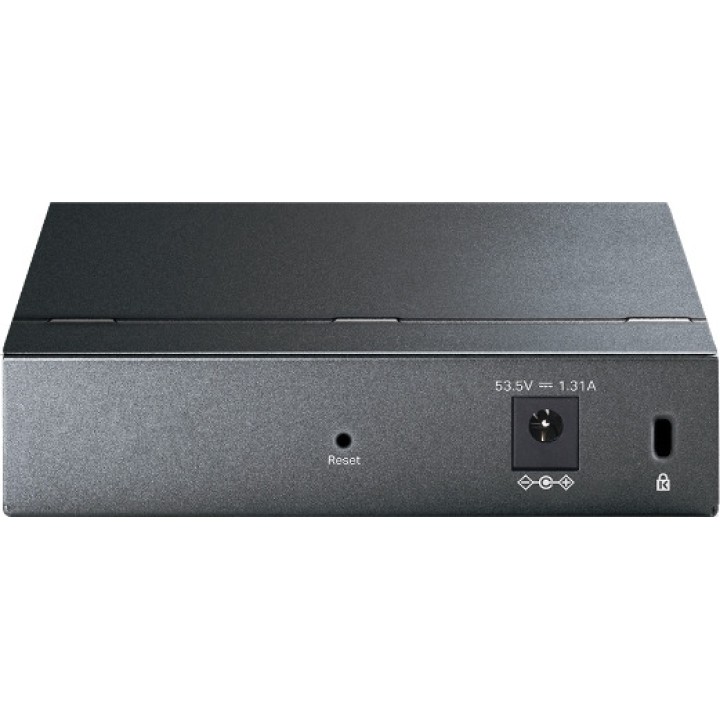

Power Supply External power adapter (output : 53,5 V CC / 1,31
A)
PoE ports (RJ45) Standard: 802.3 af / at compatible
PoE ports: Port 1-Port 4
Total PoE power E: 65 W
Dimensions 99.8 98 25 mm (3.9 3.9 1.0 in )
Maximum Power Consumption 4,52 W (220 V / 50 Hz with no PD connected)
75,16 W (220 V / 50 Hz with a 65 W PD connected)
Maximum heat dissipation 15,41 BTU / h (with no PD connected)
256,30 BTU / h (with a 65 W PD connected)
Performance
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
Address Table MAC 2 K
Packet Buffer Memory 1.5 Mb
Jumbo frame 16 KB
SOFTWARE FEATURES
Quality of Service Supports port-based / 802.1p / DSCP priority
Supports 4 priority queues
Rate limit
Storm Control
Features L2 IGMP Snooping V1 / V2 / V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop prevention
PoE Auto Recovery
Extended Mode
VLAN Supports up to 32 VLANs simultaneously (of 4K VLAN ID)
MTU / port / VLAN tag
Web-based GUI management
Easy smart configuration utility
Store-and-Forward Transmission Method
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG105PE
Power adapter
Installation guide
Rubber feet
Microsoft Windows system requirements to run the utility
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating humidity: 10% ~ 90% RH non-condensing
Storage humidity: 5% ~ 95% RH non-condensing
Volume (m ³): 0.0030
