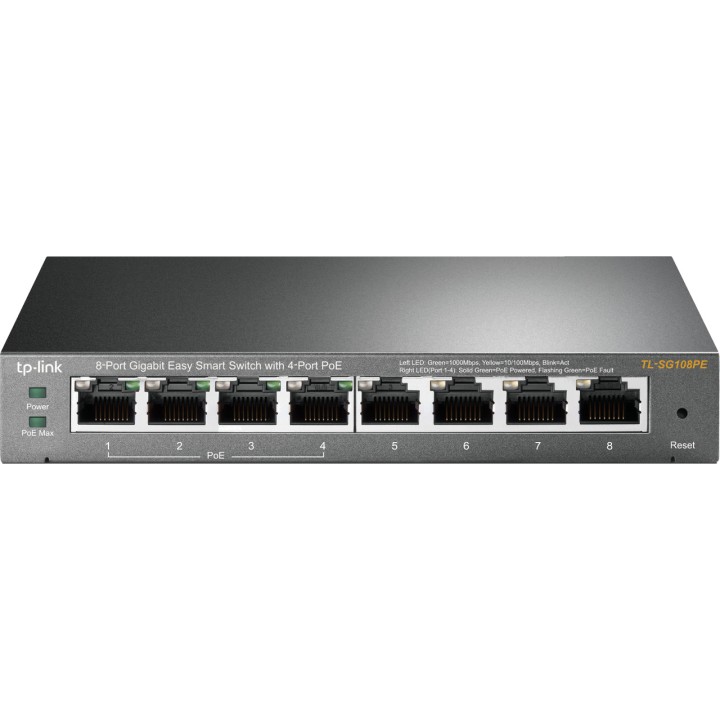

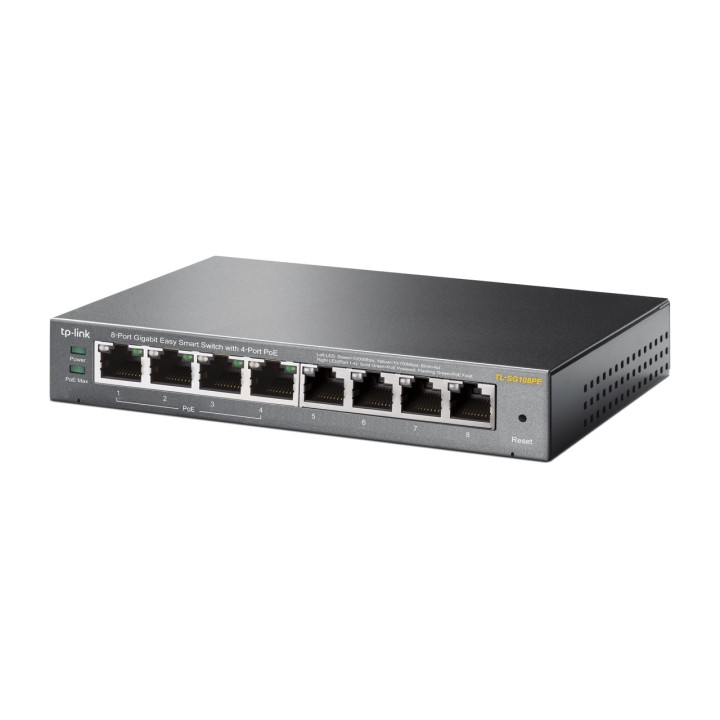

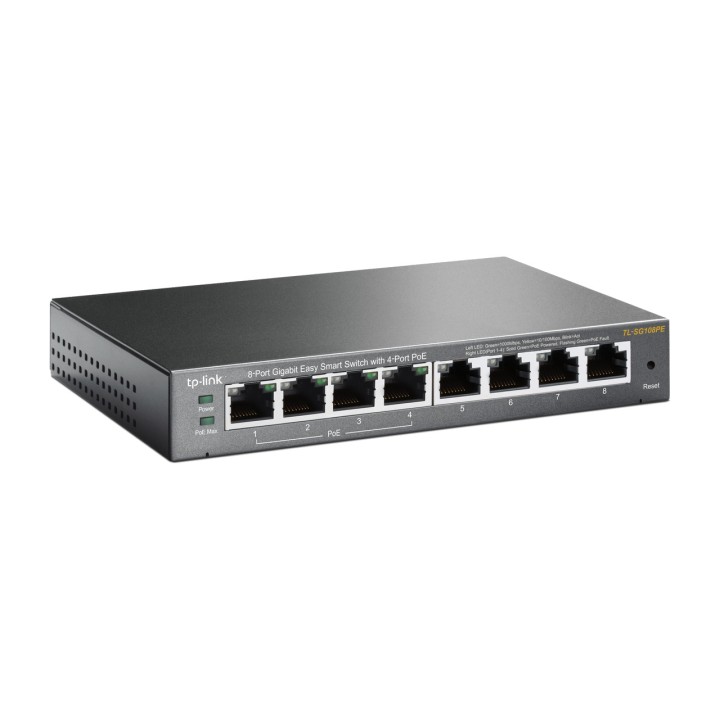

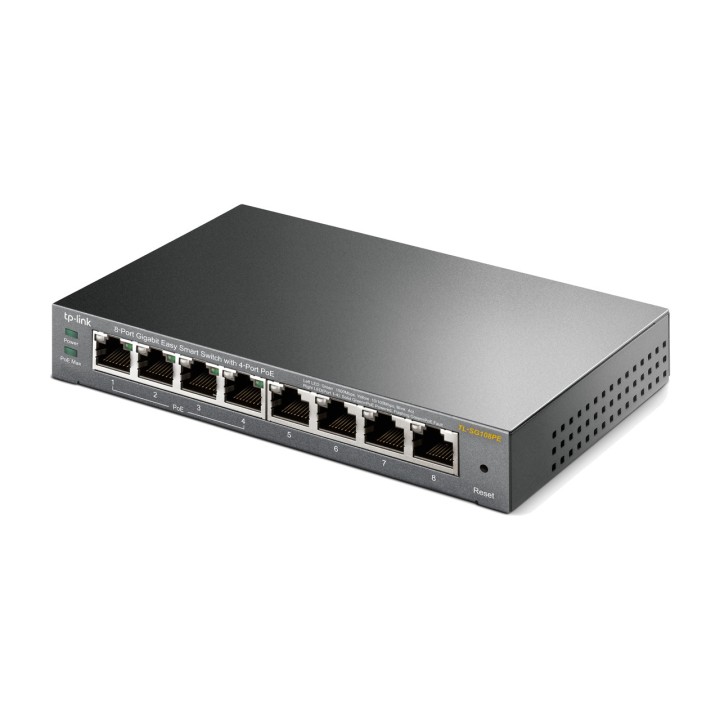

TP-LINK 8-port Gigabit managed switch with 4 PoE ports TL-SG108PE EASY-SMART MGS0000012615
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestoswith 4 PoE ports
8 10/100/1000 Mbps RJ45 ports
Equipped with 4 802.3af PoE ports providing up to 15.4 W per port, data
and power can be transferred over a single cable
Supports up to 55 W PoE power for all PoE ports
Provides network monitoring, traffic prioritization and VLAN features
Simple network configuration in addition to plug-and-play connectivity
The web-based user interface and Easy Smart Configuration Utility
simplify configuration
Hardware Features
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 8 10/100/1000 Mbps RJ45 ports
AUTO / AUTO MDI / MDIX negotiation
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
100BASE-TX: Category 5, 5e UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA / TIA-568 100 STP (maximum 100 m)
Quantity of Fans No Fan
Power Supply External power adapter (output : 48 V CC / 1,25
A)
PoE ports (RJ45) Standard: 802.3 af compatible
PoE ports: Port 1-Port 4
PoE power budget: 55W
Dimensions 6.2 4.0 1.0 in (158 101 25 mm)
Power Consumption Maximum 5.15W (220V / 50Hz with no PD connected)
65,18 W (220 V / 50 Hz with 55 W PD connected)
Maximum heat dissipation 17,57 BTU / h (with no PD connected)
222.39 BTU/h (with 55 W PD connected)
Performance
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
Address Table MAC 4 K
Packet Buffer Memory 1.5 Mb
Jumbo frame 16 KB
SOFTWARE FEATURES
Quality of Service Supports port-based / 802.1p / DSCP priority
Supports 4 priority queues
Rate limit
Storm Control
Features L2 IGMP Snooping V1 / V2 / V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop prevention
VLAN Supports up to 32 VLANs simultaneously (of 4K VLAN ID)
MTU / port / VLAN tag
Web-based GUI management
Easy smart configuration utility
Transmission method Store-and-forward
Others
FCC, CE, RoHS certifications
PACKAGE CONTENT TL-SG108PE
Power adapter
Installation guide
Rubber feet
Microsoft Windows system requirements to run the utility
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104 )
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating humidity: 10% ~ 90% RH non-condensing
Storage humidity: 5% ~ 95% RH non-condensing
Volume (m ³): 0.0031
- Brand
- TP-LINK
- Reference
- MGS0000012615
- EAN-13
- 6935364094744
- Weight
- 1 kg
