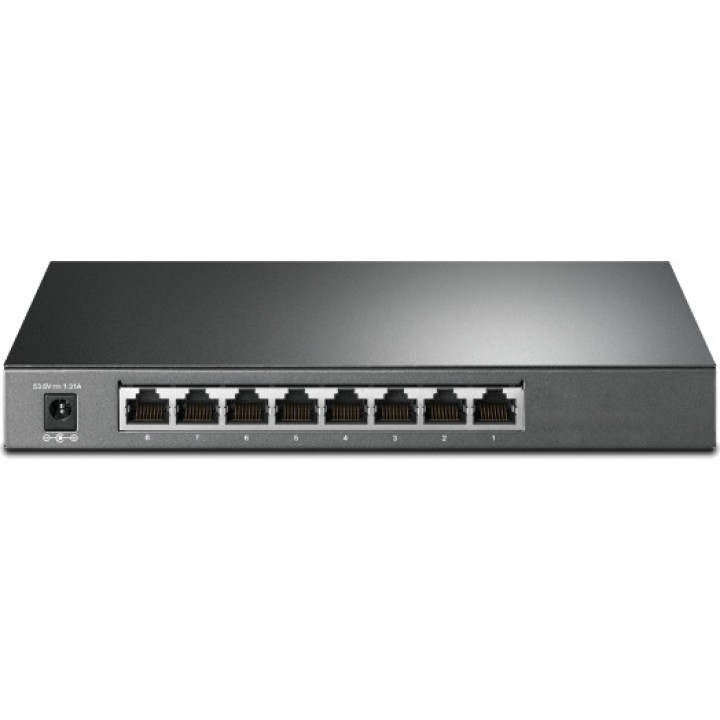

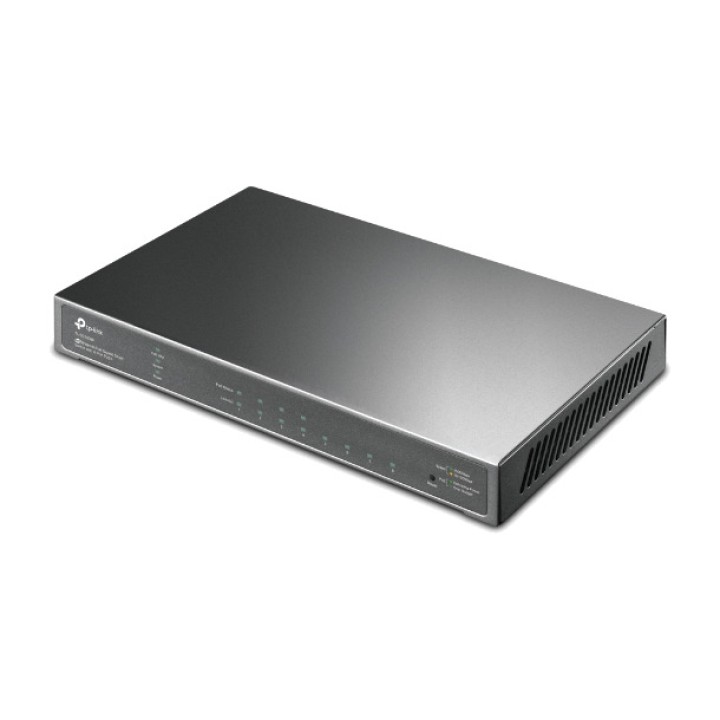

TP-LINK 8-Port Gigabit Managed Switch with 4 PoE+ OMADA TL-SG2008P JETSTREAM-L2+ MGS0000012612

8-Port Gigabit JetStream Smart Switch

Full Gigabit Ports: 8 gigabit RJ45 ports provide
high speed.
Integrated into Omada SDN: centralized cloud management and monitoring
software.
Centralized Management: cloud access and the Omada app for maximum
convenience and easy management.
Robust Security Strategies: 802.1Q VLAN, ACL, port security, storm control
and more.
Optimize Voice and Video Applications: L2 / L3 / L4 QoS and IGMP snooping.
Versatile Management: WEB / CLI managed modes, SNMP and RMON
provide abundant management features.

Hardware Features
Installation Desktop/wall mounting
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad,
IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE
802.1x
Interface 8 10/100/1000 Mbps RJ45 ports (auto-negotiation / auto MDI
auto / MDIX)
Network Media 10BASE-T: category 3, 4, 5 UTP cable (maximum 100 m)
100BASE-TX / 1000Base-T: category 5, 5e or higher UTP cable (maximum 100 m)
Quantity of Fans No Fan
Power Supply External 12 VDC / 1 A adapter or
Obtain power from the PoE source
Power Consumption 6.4 W (220 V/50 Hz)
Dimensions 8.2 4.9 1.0 in (209 126 26 mm)
Performance
Bandwidth / Backplane 16 Gbps
Packet Forwarding Rate 11.9 Mpps
Address Table MAC 8K
Packet Buffer Memory 4.1 Mbit
Jumbo frame 9 KB
SOFTWARE FEATURES
Quality of Service 802.1p CoS / DSCP Priority
8 priority queues
Strict priority mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue weight configuration
Bandwidth control
- Port-/flow-based classification limit
Smoother performance
Storm Control
- Multiple control modes (kbps / ratio)
- Broadcast / multicast / unknown unicast control
L2 and L2+ features, 16 IP interfaces
- IPv4 / IPv6 interface support
Static routing
- 32 IPv4 / IPv6 static routes
DHCP server
DHCP relay
- DHCP interface relay
- DHCP VLAN relay
Relay DHCP L2
Static ARP
Proxy ARP
Gratuitous ARP
Add a link
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- MSTP 802.1s
- STP Security: TC Protect, BPDU Filter / Protect,
Root protection
Loopback detection
Flow control
- Flow control 802.3x
Mirroring
- Port mirroring
- CPU mirroring
- Twelve fifty-nine at night
- Many-to-one
- Flow-based
- Ingress / Egress / Both
Device Link Detection Protocol (DLDP)
802.1ab LLDP / LLDP-MED
VLAN VLAN Group
- Max. 4K VLAN groups
Tagged VLAN 802.1Q
MAC VLAN: 12 entries
VLAN protocol
GVRP
Voice VLAN
Access Control List supports up to 230 entries
Time interval
- Time slice
- Weekly time range
- Absolute time range
- Holiday
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User priority
- Ether type
IP ACL
- Source IP
- Destination IP
- IP protocol
- TCP flag
- TCP / UDP source port
- TCP / UDP destination port
- TOS DSCP / IP
IPv6 ACL
Combined ACL
Rule operation
- Permit / Deny
Policy action
- Mirror
- Rate limit
- Redirect
- QoS monitoring
ACL rule binding
- Port binding
- VLAN binding
Actions per flow
- Mirror (to a supported interface)
- Redirect (to a supported interface)
- Rate limit
- QoS monitoring
AAA security
802.1X
- Port-based authentication
- MAC-based authentication (Host)
- The authentication method includes PAP / EAP-MD5
- MAB
- Guest VLAN
- Supports Radius authentication and
accounting
IP / IPv link 6-MAC
- 512 binding entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP inspection
- ND detection
IP source guard
- 253 entries
- Source IP + source MAC
IPv6 source guard
- 183 entries
- Source IPv6 address + source MAC
DoS Defense
Static / dynamic / permanent port security
- Up to 64 MAC addresses per port
Broadcast / multicast / unicast storm control
- kbps / ratio control mode
Port isolation
Secure web management via HTTPS with
SSLv 3 / TLS 1.2
Secure Command Line Interface (CLI)
Management with SSHv1 / SSHv2
IP / Port / MAC-based access control
Advanced Features Hardware Controller Compatibility
Omada (OC200/OC300) and the software controller
Automatic device detection
Batch configuration
Batch firmware update
Intelligent network monitoring
Abnormal event warnings
Unified configuration
Reboot schedule
Management
Omada App Yes. Requires the use of OC300, OC200 or Omada Software
Controller.
Centralized Management Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud access Yes. Requires the use of OC300, OC200 or Omada Software
Controller.
Management functions Web-based graphical user interface
Command Line Interface (CLI) via telnet
SNMPv1/v2c/v3
SNMP information/capture
RMON (groups 1,2,3,9)
MDF template
DHCP/BOOTP client
Dual image, dual configuration
CPU monitoring
Cable diagnostics
AEE
SNTP
System log
Others
CE, FCC, RoHS certifications
PACKAGE CONTENT TL-SG2008
Power adapter
Installation guide
Rubber feet
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 7, MAC OS, NetWare, UNIX or Linux.
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104 ),
Storage temperature : -40 ~ 70 (-40 ~ 158 )
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0052
