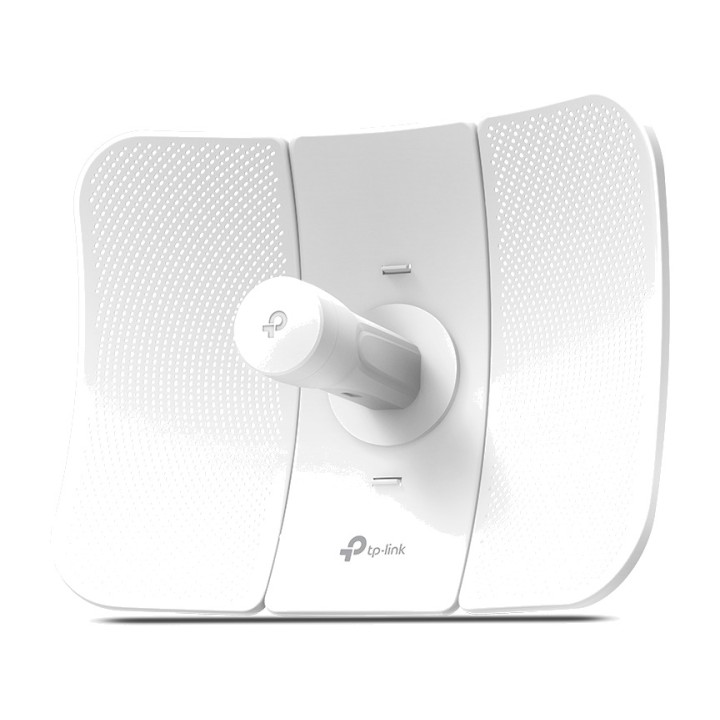

TP-LINK 5GHz Outdoor Access Point with 23dBi Antenna CPE710 AC867 MGS0000012590

CPE710
5GHz AC 867Mbps 23dBi Outdoor CPE

802.11ac for up to 867 Mbps with a wireless data rate of 5
GHz* 1 MIMO 22 directional high-gain 23 dBi, ideal for
long-range wireless transmissions of up to 30 km * 2
Excellent beam directivity, improved latency and noise cancellation

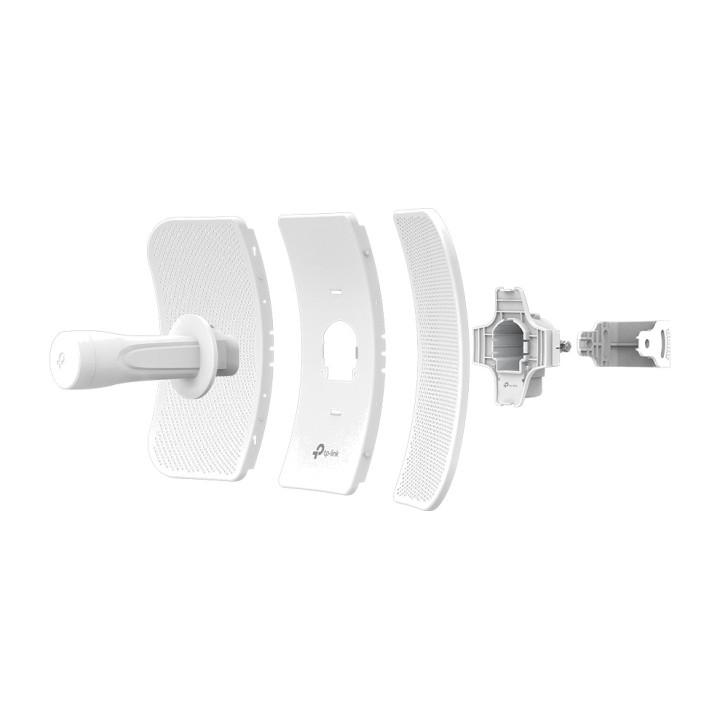

Innovative snap-lock parts enable quick assembly and a
robust structural design keeps the CPE710 stable even in strong winds
The durable, weather-resistant IP65 enclosure plus
15 kV ESD and 6 kV lightning protection ensure suitability for all
weather conditions* 3 Pharos Control provides administrators with a free, centralized management system
management system
Supports passive PoE for flexible deployment and
convenient installation
Hardware Features
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet (LAN/POE) Port
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins -
7,8pins)
Voltage range : 16-27V DC
Dimensions 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9 (Azimuth)/7 (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Exterior PC Plastic
Weatherproof Test: IP65 Waterproof and dustproof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speed Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.155.85 GHz
Max. transmission power: 27 dBm (adjustable power 1 dBm)
SOFTWARE FEATURES
Network configuration WAN: static / dynamic / PPPoE
LAN: Static / Dynamic / DHCP
Forwarding: ALG / UPnP / Virtual server / Port triggering
Security: SPI firewall / Ping blocking / DoS protection
Access control
Static routing
Bandwidth control
IP and MAC binding
Wireless settings Selectable channel width: 20/40/80 MHz
Automatic channel selection
Transmit power control
Dynamic Frequency Selection (DFS)
WDS Enable / Disable
Security: Encryption WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP),
SSID Broadcast Enable / Disable
Multi-SSID with VLAN tagging (AP mode only)
Distance / ACK timeout setting
Wireless MAC address filter
Advanced wireless:
Beacon Interval / RTS Threshold / Fragmentation Threshold / DTIM Interval /
AP Isolation / Short GI / Wi-Fi Multimedia
Long-range PtP
Management Discovery and remote management via the Pharos app
Control Web-based management HTTP / HTTPS
System log
SNMP agent (v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools Indicators: signal strength / noise /
transmission CCQ / CPU / memory
Monitors: Throughput / Stations / Interfaces / ARP / Routes / WAN / DHCP
Spectrum analyzer
Speed test
Ping
Traceroute
Antenna alignment
Optimizations System Level Optimized IGMP Snooping / Proxy for
multicast applications
POE ADAPTER SPECIFICATIONS
Dimensions(W*D*H) 85.843.929.7 mm
Interfaces 1 AC socket with earth protection
1 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000 Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Status LEDs Power Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.5A Max
+4, 5pins -7, 8pins. (Supports up to 60m Power over Ethernet)
Efficiency > ,84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
Certifications CE, FCC, Ro HS, IP65, IC
Outdoor Wireless CPE Package Contents
24V 0.5A Passive PoE Adapter
Pole Mounting Kit
AC power cable
Installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or
Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: the use of the following web browsers is recommended: Google
Chrome, Safari, Firefox.
Environmental Factors Operating Temperature : -40C~70C (-
40~158)
Storage temperature : -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Volume (m ³): 0.0068
