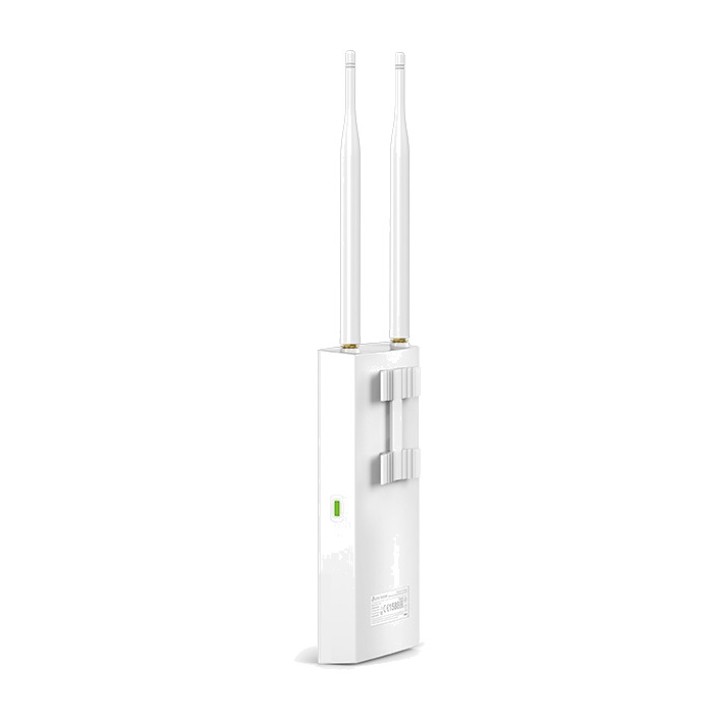

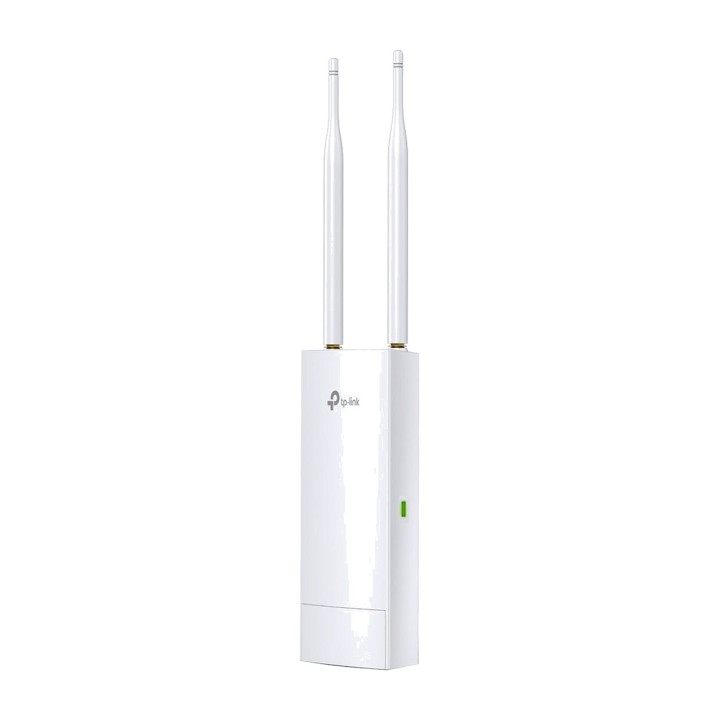

TP-LINK Outdoor WiFi 4 access point with passive Power over Ethernet OMADA EAP110-OUTDOOR N300 MGS0000012587

300Mbps Outdoor N Wireless Access Point

Ideal for outdoor environments: IP65 weatherproof enclosure for
outdoor Wi-Fi applications.
Fast Wi-Fi: Wi-Fi up to 300Mbps with 2×2 MIMO.
Long-range coverage: dedicated high-power amplifier and antennas
professional data.
Integrated into Omada SDN: Centralized cloud management and monitoring
software.
Centralized management: Cloud access and Omada app for maximum
convenience and easy management.*
PoE support: supports passive PoE (PoE adapter included) for convenient
deployment.
Secure guest network: together with multiple authentication options
(SMS/Facebook Wi-Fi/voucher, etc.) and a wealth of wireless security technologies.*
Hardware Features

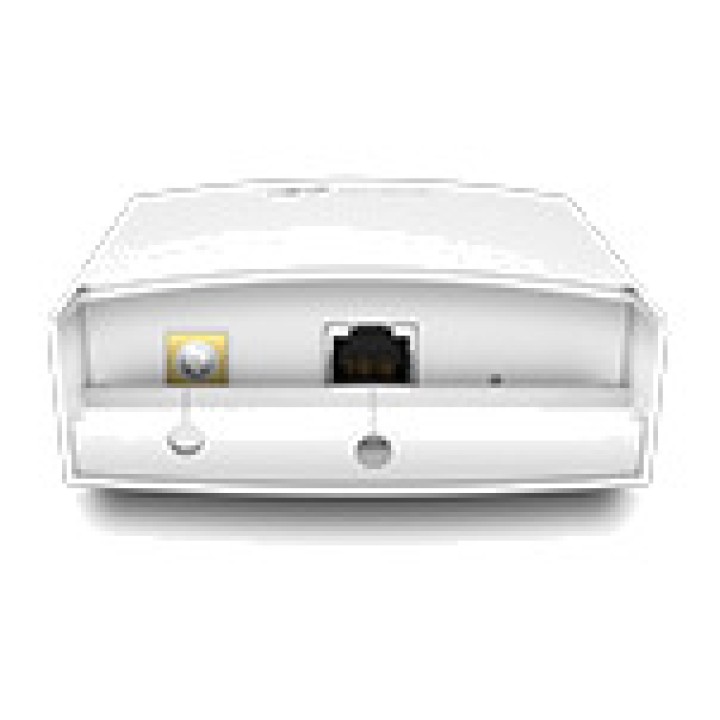

Interface Fast Ethernet port (RJ-45) (Supports Passive PoE)
Buttons Reset
Power Supply 24V Passive PoE (+4,5 pins, -7,8 pins. PoE adapter
Included)
Power Consumption 3.12 W
Dimensions 209 × 95 × 42.6 mm. (8.2 × 3.7 × 1.7 in)
Antenna Type 2 Waterproof 3dBi Omnidirectional External Antennas
Weather-resistant housing IP65
Mounting Wall/Pole Mounting (Kits included)
WIRELESS FEATURES
IEEE 802.11n/g/b wireless standards
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Transmission Power CE: 20 dBm (EIRP)
FCC: 22 dBm
Wireless Features Multiple SSIDs Up to 8 SSIDs
Enable/Disable Wireless Broadcast
Automatic channel assignment
Transmission Power Control Transmission Power Adjustment in dBm
QoS (WMM)
Cargo Balancing
Rate Limit
Reboot scheduling
Wireless Scheduling
Wireless Statistics Based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC Address Filtering
Wireless client isolation
SSID-to-VLAN Mapping
Rogue AP Detection
SUPPORT 802.1X
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Management
Omada App Yes
Centralized Management Cloud-Based Omada Controller
Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud Access Yes (via OC300, OC200, Omada Cloud Controller or
Omada Software Controller)
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP Yes
Local System Log/Remote System Log Access Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Others
CE, FCC, RoHS certifications
Package Contents 300Mbps Outdoor N Wireless Access Point,
EAP110-Outdoor
Passive PoE Adapter
power cord
Mounting kit
Waterproof Penetration Rubber
Waterproof Antennas
Installation guide
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8,
Windows10, Linux, MAC (web browser)
Environmental Factors Operating Temperature : -30~65 (-
22~149)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0036
