TP-LINK Wall-mounted WiFi 4 access point OMADA EAP115-WALL N300 MGS0000012584

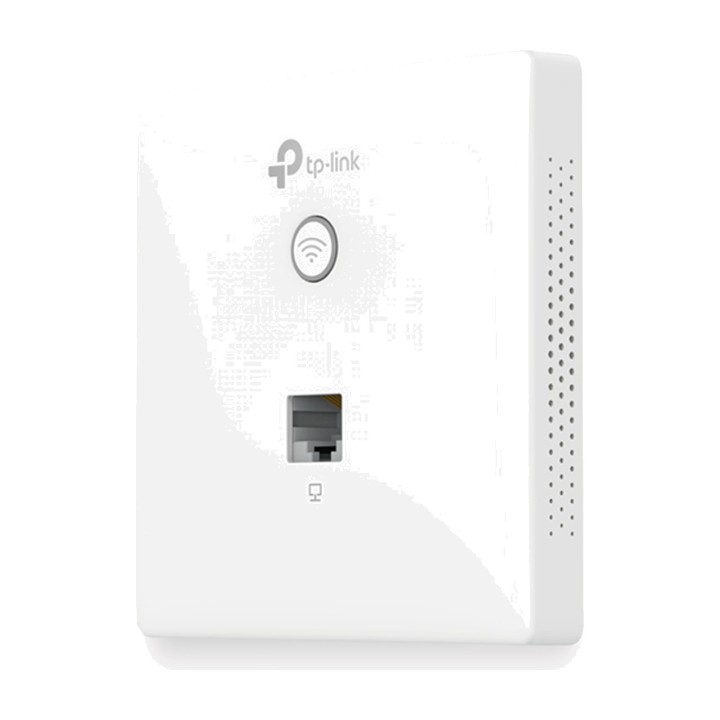

EAP115-Wall
300Mbps N Wall Wireless Access Point

Integrated into Omada SDN: Centralized cloud management and intelligent monitoring.
Centralized management: cloud access and Omada app for
ultra-convenient and easy management.

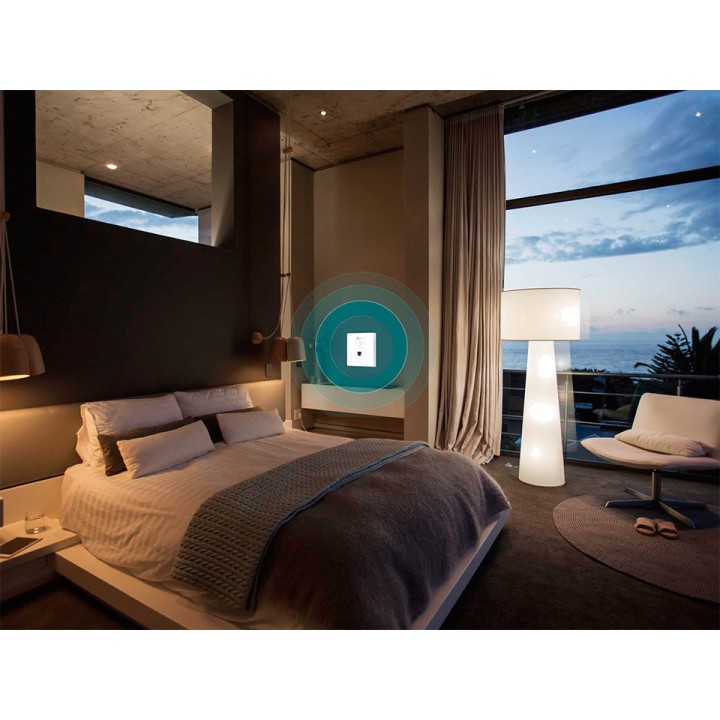

Elegant appearance: unprecedented slim design at just 11 mm, the same
size and shape as a light switch or power outlet faceplate
to fit perfectly into any room.

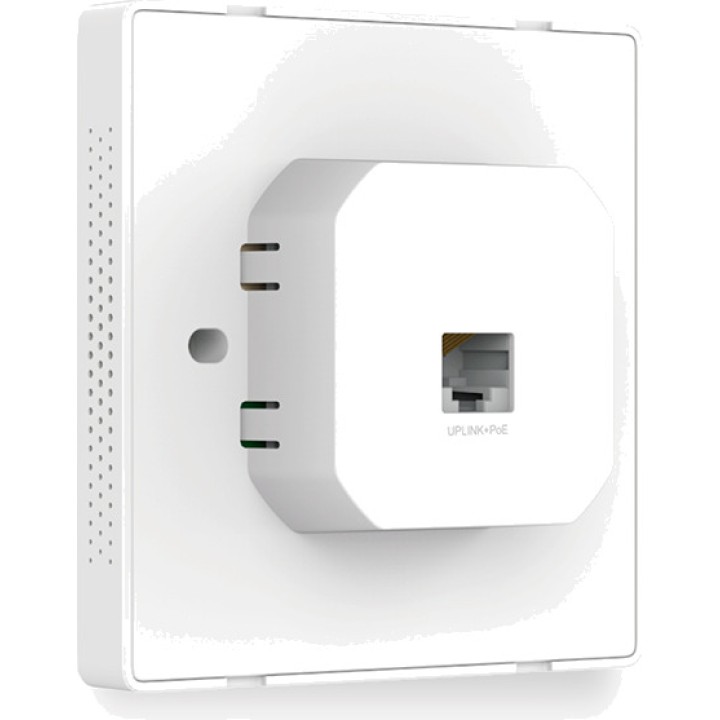

Easy installation and PoE compatibility: easy-mount construction,
compatible with standard EU and 86 mm junction boxes, and compatibility
with PoE 802.3af.
Secure guest network: together with multiple authentication options
(SMS/Facebook Wi-Fi/voucher, etc.) and a wealth of wireless security technologies.
§
Hardware Features
Interface 2 10/100Mbps Ethernet ports (RJ-45)
Physical Security Lock No
Buttons LED/Wi-Fi button, RESET
Power supply PoE (IEEE 802.3af)
Power Consumption 2.8 W
Dimensions 86.8*86.8*30.2 mm (3.4×3.4×1.2 in)
Antenna type 2 internal 1.8dBi omnidirectional antennas
Mounting Wall plate mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
IEEE 802.11n/g/b wireless standards
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Transmit Power CE
<,20dBm(2.4GHz)
Wireless functions Multiple SSIDs (up to 8 SSID)
Enable/disable wireless radio
Automatic channel assignment
Transmission power control (adjust transmission power in dBm)
QoS (WMM)
Load balancing
Traffic limit
Reboot scheduling
Wireless Scheduling
Wireless Statistics Based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC address filtering
Wireless client isolation
SSID-to-VLAN mapping
Port-based local LAN VLAN
Rogue access point detection
Compatibility with 802.1X
64/128/152-bit WEP/WPA/WPA2-Enterprise , WPA-PSK/WPA2-PSK

Management
Omada App Yes
Centralized Management Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud access Yes (via OC300, OC200 or Omada software controller)
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP v1,v2c
System Log Access Local/Remote System Log Local/Remote
Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Others
CE, ROHS certifications
Package Contents N Wireless Access Point, wall mount
300Mbps EAP115-Wall
Installation guide
Setscrew
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8,
Windows10, Linux, MAC (web browser)
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0008
