TP-LINK WiFi 5 wall access point OMADA EAP235-WALL AC1200 MGS0000012579

EAP235-Wall
Omada Gigabit WiFi MU-MIMO Wall Access Point AC1200

Fast dual-band Wi-Fi: 300 Mbps simultaneous on 2.4 GHz and 867 Mbps on 5
GHz add up to Wi-Fi speeds of 1,167 Mbps with MU-MIMO.

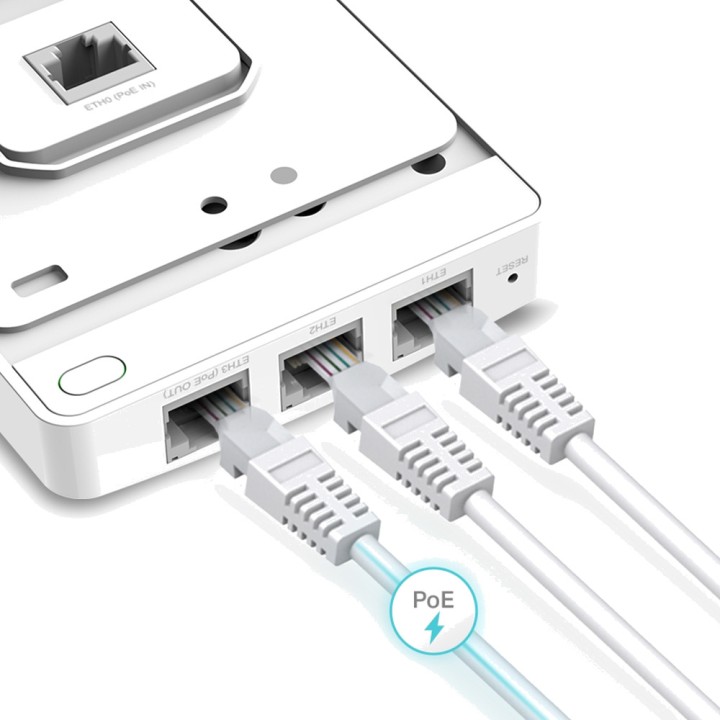

Four Gigabit Ports: 4 Gigabit Ethernet ports (1 × uplink + 3 ×
downlink), with one downlink port supporting PoE pass-through to power the wired device.
PoE to power the wired device.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP),
centralized cloud management and intelligent monitoring.
Centralized management: cloud access and the Omada app for maximum
convenience and easy management.
Elegant appearance: the ultra-slim, eye-catching design blends into rooms
in hotels, hospitals, offices, dormitories and any other environment.
Easy installation and PoE compatibility: easy-mount construction,
compatible with standard 86 mm and EU and US junction boxes. And
802.3af / at PoE compatibility.
Secure Guest Network: together with multiple authentication options (SMS /
Facebook Wi-Fi / Voucher, etc.) and abundant wireless security technologies.
Advanced wireless technology: Optimize network performance with
MU-MIMO, Band Steering and Beamforming technologies.
Hardware Features
Interface Uplink: 1 10/100/1000 Mbps Ethernet port
Downlink: 3 10/100/1000 Mbps Ethernet ports (One port supports PoE OUT. PoE
OUT requires the device to be powered by 802.3at PoE+ and the maximum power output
is 13W.)
Physical Security Lock Yes
Buttons Reset
Power Supply 802.3af/802.3at PoE
Power Consumption 9.8 watts /24.4 watts (PoE output included)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antennas 2 Dual-Band Antennas
2.4GHz: 2*4dBi
5GHz: 2*4dBi
Mounting Wall Mounting
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz and 5GHz
5GHz Signal Rate: Up to 867Mbps
2.4GHz: Up to 300Mbps
Wireless Functions 16 SSIDsUp to 8 SSIDs on each band
WiFi Radio On/Off
Automatic channel assignment
Transmit Power Control (dBm Adjustment)
QoS (WMM)
MU-MIMO
Band Steering
Beamforming
Load balancing
Speed Limiter
Schedule Reboot
Schedule Wireless Broadcast
WiFi Statistics by SSID/AP/Client
Wireless Security Captive Portal Authentication
Access control
Wireless MAC Address Filtering
Wireless client isolation
VLAN Mapping by SSID
VLAN-Based Local LAN Port
Rogue AP Detection
SUPPORT 802.1X
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
CE Transmission Power:
20 dBm (2.4 GHz, EIRP)
23 dBm (5 GHz, EIRP)

FCC:
21 dBm (2.4 GHz)
21 dBm (5 GHz)
Management
Omada App Yes
Centralized Management Cloud-Based Omada Controller
Omada hardware controller (OC300)
Omada hardware controller (OC200)
Omada software controller
Cloud Access Yes (via OC300, OC200, Omada Cloud-Based Controller or
Omada Software Controller)
Email Alerts Yes
Control LED ON / OFF Yes
MAC Access Control Management Yes
SNMP v1,v2c
System Log Access Local/Remote System Log Local/Remote
Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-touch provisioning Yes. Requires the use of the cloud-based controller
Omada cloud.
Others
CE, FCC, RoHS certifications
Package Contents Omada AC1200 Wireless MU-MIMO Access Point
Gigabit Wall EAP235-Wall
Installation guide
mounting screws
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8,
Windows10, MAC (web browser)
Environmental Factors Operating Temperature: 0~40
(32~104)
Storage temperature : -40~70 (-40~158)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
Volume (m ³): 0.0009
