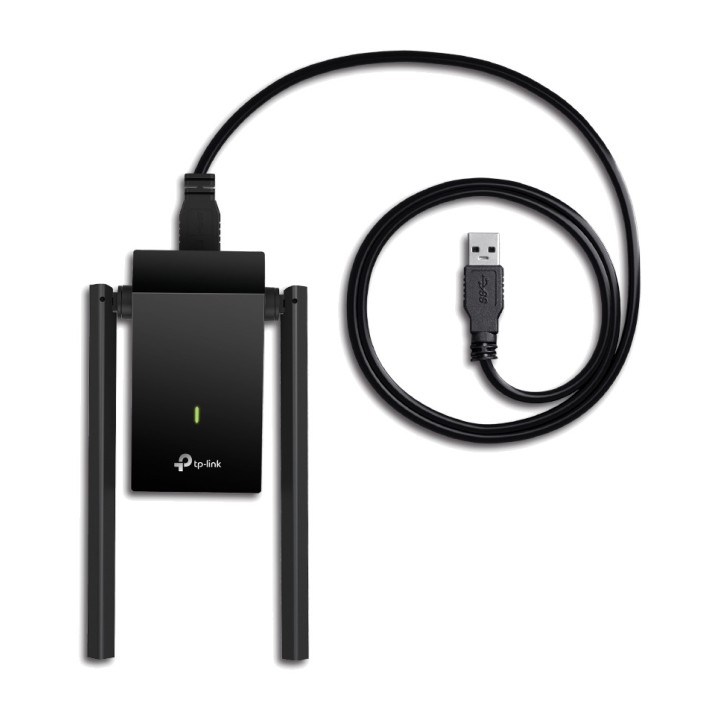

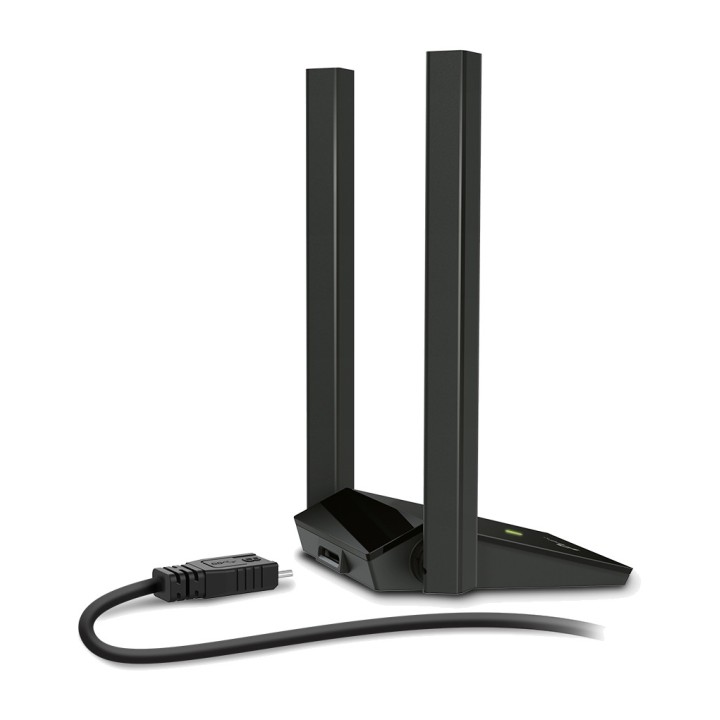

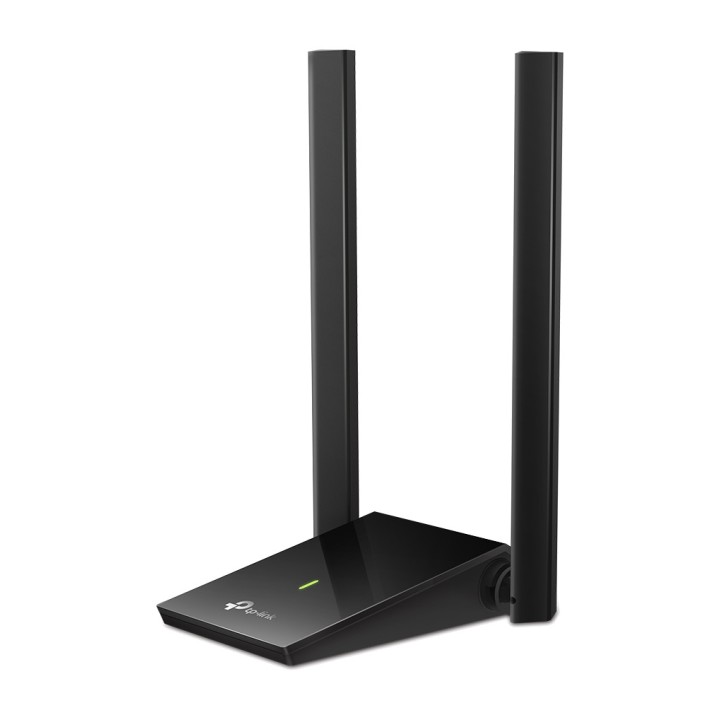

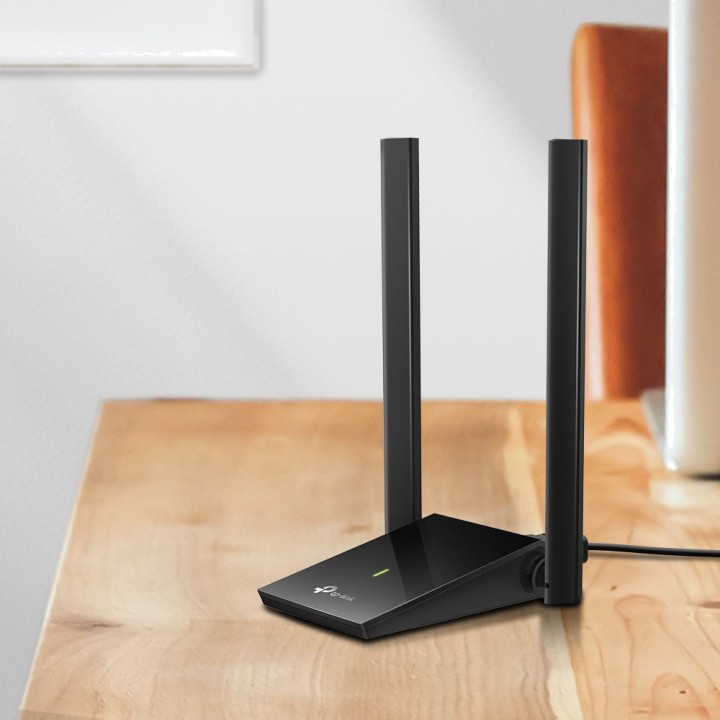

TP-LINK Dual-band WiFi 5 USB 3.0 adapter with two high-gain antennas ARCHER-T4U PLUS AC1300 MGS0000012561

Archer T4U Plus
High-gain AC1300 wireless USB adapter with dual antennas


Ultra-fast Wi-Fi: wireless speeds of 1300 Mbps (400 Mbps on the
2.4 GHz band and 867 Mbps on the 5 GHz band) with support for the
next-generation Wi-Fi 802.11ac standard
Dual-band Wi-Fi: 2.4 GHz and 5 GHz bands for flexible connectivity
flexible High-gain dual antennas: improved range, signal quality and
improved transmission performance
MU-MIMO: provides a high-efficiency wireless connection
High-speed USB 3.0 port: transfer speeds up to 10
times faster than USB 2.0
Adjustable multidirectional antenna: enables flexible deployment for
better reception

Hardware Features
Interface USB 3.0
Status LED
Dimensions 84 156.3 19.2 mm (3.3 6.2 0.76 in)
Antennas 2 external 5 dBi high-gain antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate 5 GHz:
11ac: up to 867 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)
2,4 GHz:
11n: up to 400 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
Reception Sensitivity 5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -65dBm
11ac VHT20: -69dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -72dBm
11g 54Mbps: -75dBm
11b 11Mbps: -87dBm
5 GHz Transmit Power: 20dBm (FCC) / 20dBm (CE) (EIRP)
2.4 GHz: 18dBm (FCC) / 18dBm (CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Others
FCC, CE, RoHS certifications
Package Contents High-gain wireless USB adapter with
dual antennas AC1300 Archer T4U Plus
Quick installation guide
Resource CD
1-meter USB 3.0 cable
System Requirements Supported operating systems include
Windows 11 / 10 / 8.1 / 8/7,
Mac OS
Environmental Factors Operating Temperature : 0 ~ 40 (32 ~
104
Operating Humidity: 10% ~ 90% without condensation
Storage Humidity: 5% ~ 90% without condensation
Volume (m ³): 0.0014
